IS200JPDSG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
The IS200JPDSG1A Power Distribution Board (JPDS was made for General Electric's Mark VIe & VIeS Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200JPDSG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200JPDSG1A
  • SKU: GBTC-14635
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200JPDSG1A Technical Specifications

Original Mark Series Manufacturer General Electric
Part Number IS200JPDSG1A
Product Type 28V Power Distribution Board
Abbreviation JPDS
Available Options Buy Stock or Repair
Similar/Related Mark VIe/S Options IS230JPDSG1A, IS200JPDSG1B
Assembly Type Standard Mark Series TB
Type of Power Supplies TMR DC Supplies

Frequently Asked Questions about IS200JPDSG1A

What was the original cause for creation behind a JPDS acronym?

Allegedly, this IS200JPDSG1A device's proper acronym was developed to acy as a convenient placeholder for the rather long IS200JPDSG1A functional description.

Is this IS200JPDSG1A device's normal PCB coating usual?

No. While "normal" by name, this IS200JPDSG1A device's normal PCB coating is not the industry-standard conformal base PCB coating.

About the IS200JPDSG1A

Hardware Tips and Specifications

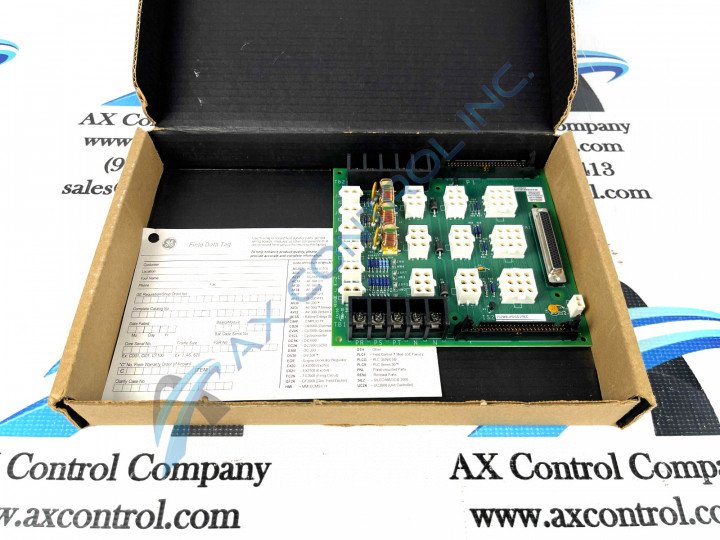

The IS200JPDSG1A is a Power Distribution Board used in GE Turbine Control Systems. The functional abbreviation used in GE Documentation for the IS200JPDSG1A is "JPDS".  The IS200JPDSG1A is built with:

  • two terminal strips with five screws on each strip
    • marked PR, PS, PT, N, and N
    • used for daisy chaining power distribution boards
  • two 50-pin ribbon connectors that are marked P1 and P2
    • designed to transmit feedback signals between boards
  • a female connector marked JA1
    • DC-62 connector that is compatible with I/O packs on the IS220PPDA
  • seven 2-position plugs, six 6-position plugs, and three 9-position plugs

The IS200JPDSG1A is built with three inductor coils, four varistors, four TP test points, two transistors, and multiple resistors and capacitors.  Each of the TP test points has a series 10k resistor that is isolating the ring. The board is designed for DIN-rail mounting and can be mounted next to other power distribution boards. The IS200JPDSG1A is drilled in six locations. GEI-100613, published by GE, will provide more information on the operation, wiring, and installation of this board.
