The IS200IGPAG1A is a GE Mark VI printed circuit board

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200IGPAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200IGPAG1A
  • SKU: IS200IGPAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

IS200IGPAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The IS200IGPAG1A is a GE Mark VI printed circuit board

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200IGPAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200IGPAG1A
  • SKU: IS200IGPAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VI IS200

Product Description

The IS200IGPAG1A is a board component created by General Electric for their Mark VI system.  One of the last gas/steam turbine management systems to carry the Speedtronic name, the Mark VI is designed with a central Control Module that manages the majority of all control, monitoring, and protection of the turbine system.  This Control Module is designed with redundant backups on all critical controls and protection parameters. The Control Module connects to a Human/Machine Interface (HMI) or Operator Interface that allows most turbine data to be accessed from a single location.  This interface is built using a PC running on a Windows platform.

The  IS200IGPAG1A functions as a Gate Driver Power Supply Card.  It mounts directly to the Integrated Gate Commutated Thyristor (IGCT.)  One board is used per IGCT.

The  IS200IGPAG1A is built with two coil inductors. It has two board connectors. This includes one 9-pin vertical header connector used for output and one 5-pin connector used for input.  Seven high-voltage electrolytic capacitors are located in groups of one, two and four. The board has two LED strips with four LEDs per strip. The board has two fuses, eight TP test points, and several transistors. Heat sinks take up most of the top half of the board. Resistors used on the board tend to be made of metal film.   The board is drilled in several locations. Reference designators identify most components.

AX Control will be happy to provide a shipping quote upon request.  We offer a variety of shipping options to meet your needs, from economical ground service to next day early delivery.

Reviews For IS200IGPAG1A
Internal Review

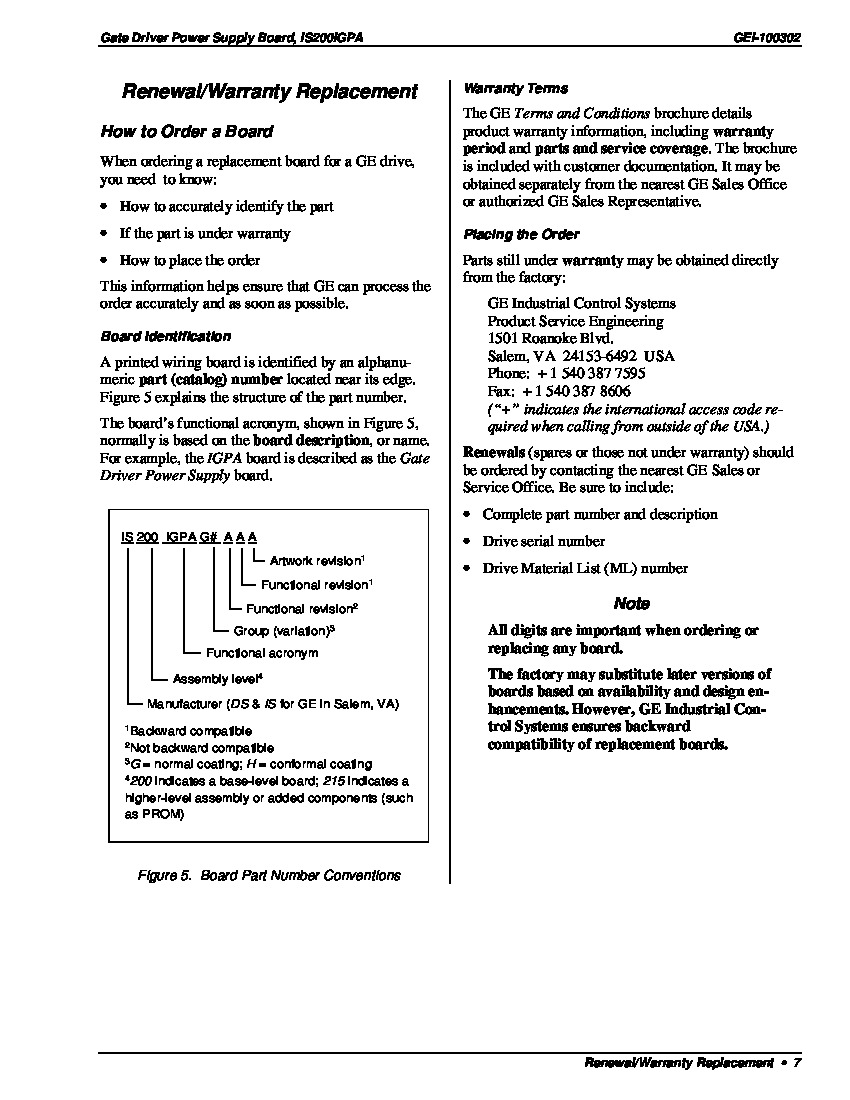

This gate driver power supply board provides dc gate driver power to each IGCT integrated gate commutated thyristor. This board mounts directly to the IGCT, with one IGPA needed per IGCT. This board has two power supplies. Read associated manuals for more information. --AX Control Tech Team.

Repair Services For IS200IGPAG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $985

Our highly skilled technicians can repair your IS200IGPAG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
