IS215ACLEH2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product

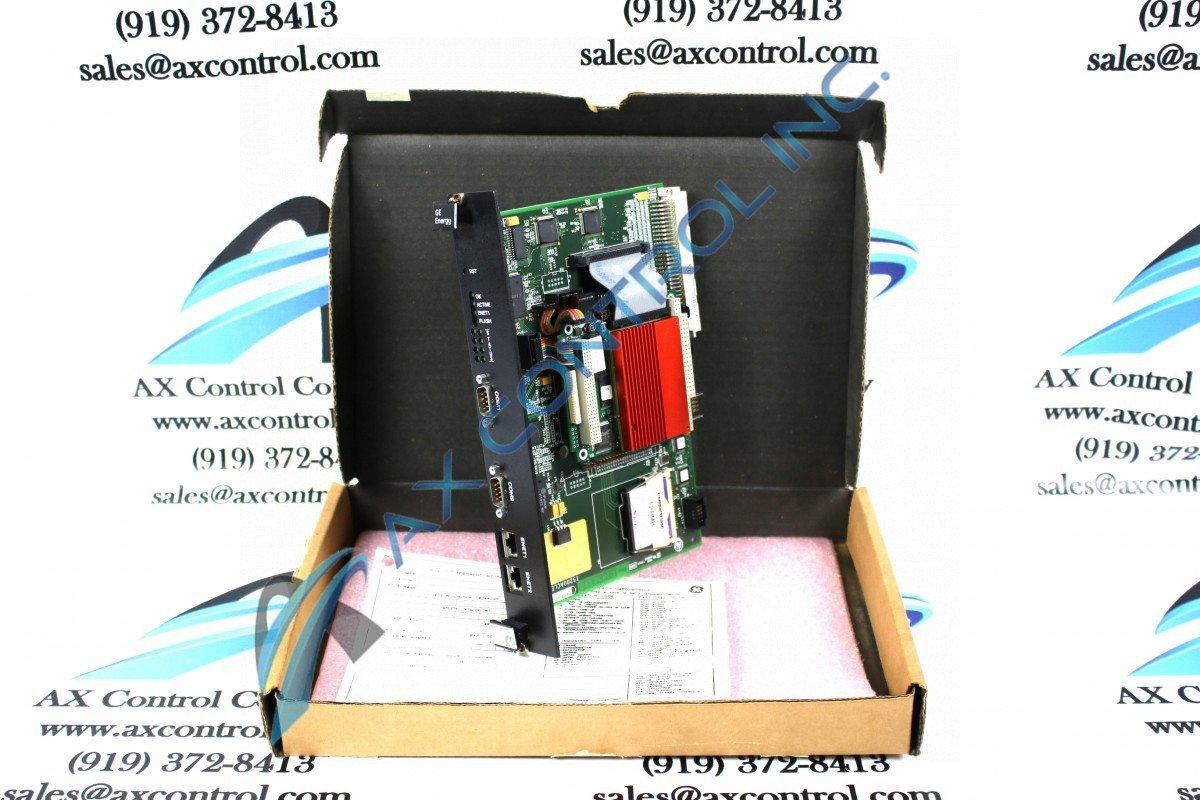

Part IS215ACLEH2A is an Application Control Layer Module and is the only H2 version of the ACLE boards. This board has an ISBus communication protocol built in. This model has three adjustable jumpers on the board.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS215ACLEH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS215ACLEH2A
  • SKU: IS215ACLEH2AGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS215ACLEH2A Technical Specifications

Assembly Level 215, Higher Assembly and Added Components
Board Description Application Control Layer Module
Board Version H2A
Functional Acronym/Abbreviation ACLE
Manuals GEI-100434 and/or GEH-6632
Manufacturer GE Industrial Systems, General Electric Company US

About the IS215ACLEH2A

Model number IS215ACLEH2A is one of the Application Control Layer Modules, the ACLE models have the assembly level of 215, the 215 assembly level indicates that this model is a high-level assembly or they have added components. This model is primarily used as a control model and can be found mounted in Innovation Series Drives or EX2100 control racks.

This model has several hardware features which include but are not limited to a central processing unit (CPU), bus target interface, and 4 MB of flash memory on the basic input/output system (BIOS). The IS215ACLEH2A model’s attached CPU's primary function is to incorporate 16 K bytes of internal cache from L1, the CPU is also a four hundred and eighty-six type processor which operates at 100 MHZ. This model has a reset switch on the front faceplate, this reset switch directly controls the reset switch logic function on this board.

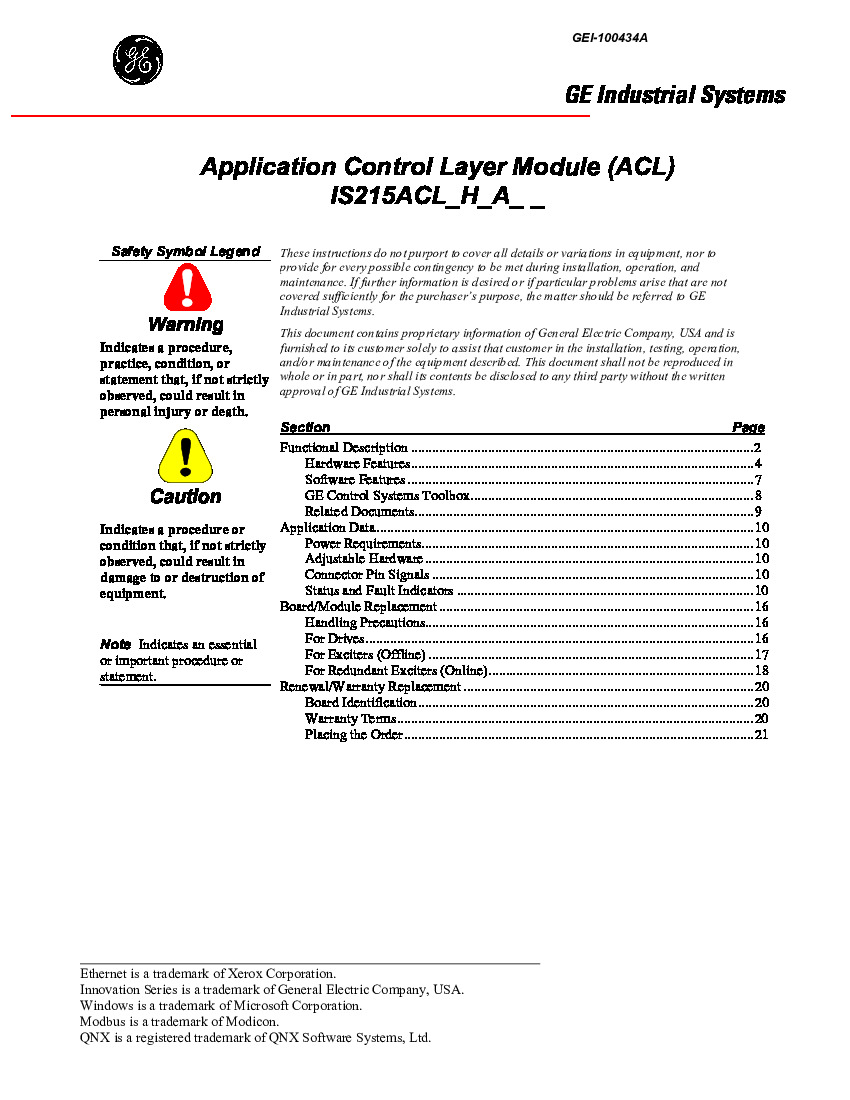

The IS215ACLEH2A model has very little information on it due to its obsolescence and no longer being produced by General Electric but if you have this model the best manual to use is the GEI-100434 manual which focuses on Application Control Modules.

Frequently Asked Questions about IS215ACLEH2A

What are some hardware features of the IS215ACLEH2A model?

Some hardware features of the IS215ACLEH2A model at Ethernet, 4 MB of flash memory basic input/output system, and a peripheral component interconnect (PCI) controller.

How many slots does the IS215ACLEH2A model occupy?

The IS215ACLEH2A model occupies two half-slots.

What is the BIOS application on the IS215ACLEH2A board?

The BIOS application is a 1 MB 5 V flash memory device that mounts in a socket on the ACL. The BIOS application is also divided into three sections, the main BIOS, the BIOS setup utility, and the GE Industrial Systems Extended BIOS.

When I replace the IS215ACLEH2A model what is needed?

Anytime an ACLE model is replaced a firmware download is required.
