The IS215ACLEH1AB Application Control Layer Module was manufactured by GE Industrial Systems for the Innovation Series of drive assemblies and drive assembly component parts.



Sell Surplus: Have a IS215ACLEH1AB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS215ACLEH1AB
  • Manufacturer: GE Boards & Turbine Control
  • Series: EX2100 & EX2100e Excitation Control

IS215ACLEH1AB Technical Specifications

Manufacturer GE Industrial Systems
Series Innovation Series
Part Number IS215ACLEH1AB
Functional Acronym ACLE
Functional Description Application Control Layer Module
PCB Coating Conformal Coating
Functional Revision 1 A
Functional Revision 2 B

Product Description

This IS215ACLEH1AB printed circuit board was originally mass-produced by GE Industrial Systems for their Innovation Series of automated control systems and automated control system component products. GE Industrial Systems falls under the manufacturing umbrella of respected industry giant General Electric; and is the sole subsidiary company responsible for the manufacture of all Innovation Series products. As indicated by this product's ACLA functional acronym, this General Electric printed circuit board is acutely and functionally better-definable as an Application Control Layer Module. This is a revised version of the original IS215ACLEH1AB Application Control Layer Module, possessing two important functional revisions rated at "A" and "B" respectively.

Hardware Tips and Specifications

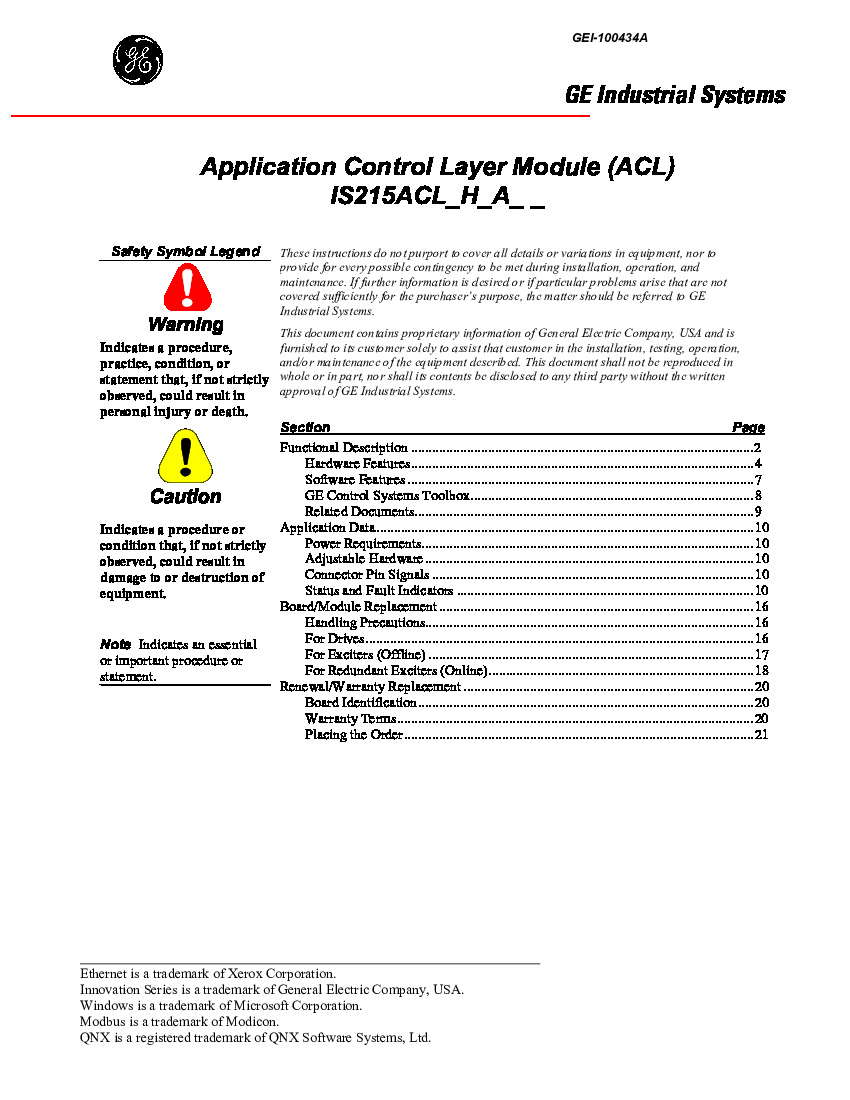

Due to a plethora of existing product-centric instructional manual materials on the internet describing this Application Control Layer Module specifically, there is no need to depend on a visual inspection or part number breakdown to describe this IS215ACLEH1AB PCB. Before outlining some of this module's hardware elements, it is important to contextualize them within its intended functionality a bit. This IS215ACLEH1AB board can mount in either Innovation Series or EX2100 exciter series board racks, in order to provide multiple communication processes within assemblies' Ethernet or ISbus communication networks. This ACLE-abbreviated printed circuit board also contributes in the necessary triggering of several diagnostic codes or indications concerning the function of Innovation Series assemblies.

Now that some of the intended functioning off this ACLE Module has been discussed, it is possible to understand the hardware elements included in its assembly. One major hardware element afforded to this IS215ACLEH1AB PCB is its series of two total communication ports; each intuitively labeled with the standard reference designators of COM1 and COM2, respectively. Some other hardware specifications included in this Application Control Layer Module's configuration are:

  • A Peripheral Component Interconnect Controller or PCI
  • A bus target interface
  • 8 MB of DRAM memory
  • 4 MB of BIOS memory
  • A Central Processing Unit or CPU
  • Ethernet

All of these aforementioned hardware components should be well-protected beneath this IS215ACLEH1AB model's conformal style of protective PCB coating; which should apply exhaustively to every surface on every available hardware component on the ACLE board. This is a special-assembly PCB marked by the IS215 special series tag; as it takes up two half-slots in the Innovation or EX2100 Series' board rack.

Frequently Asked Questions about IS215ACLEH1AB

What is this IS215ACLEH1AB board's exact location of original manufacture?

This IS215ACLEH1AB PCB's origin can be tracked down exactly to General Electric's Salem, Virginia factory plant.

Why is this board's functional acronym ACLE if its functional description is that of an Application Control Layer Module?

General Electric functional acronyms hardly match up exactly with their corresponding products' functional descriptions. It is likely that the ACLE acronym is still an amalgamation of this functional description.

Will my IS215ACLEH1AB Application Control Layer Module be protected by a warranty upon purchase?

Yes. As with the vast majority of General Electric printed circuit board options available here at AX Control, this IS215ACLEH1AB PCB will be protected by a guaranteed three-year warranty upon purchase.

Reviews For IS215ACLEH1AB

Internal Review

This well-supported General Electric Application Control Layer Module features a series of unique specifications that set it apart from the crowd, including its IS215-designated special assembly version, its industry-standard conformal style of printed circuit board protective coating, and its selection of not one, not three, but two unique functional revisions. Unlike many similar IS215-labeled GE PCBs, the special assembly version of this IS215ACLEH1AB model is known to be a reference to its taking up of two half-slots on its applicable VME rack. This IS215ACLEH1AB Application Control Layer Module is available for both repair or replacement, with any repairs being done by our experienced team of service technicians in-house. - AX Control Lead Technician
