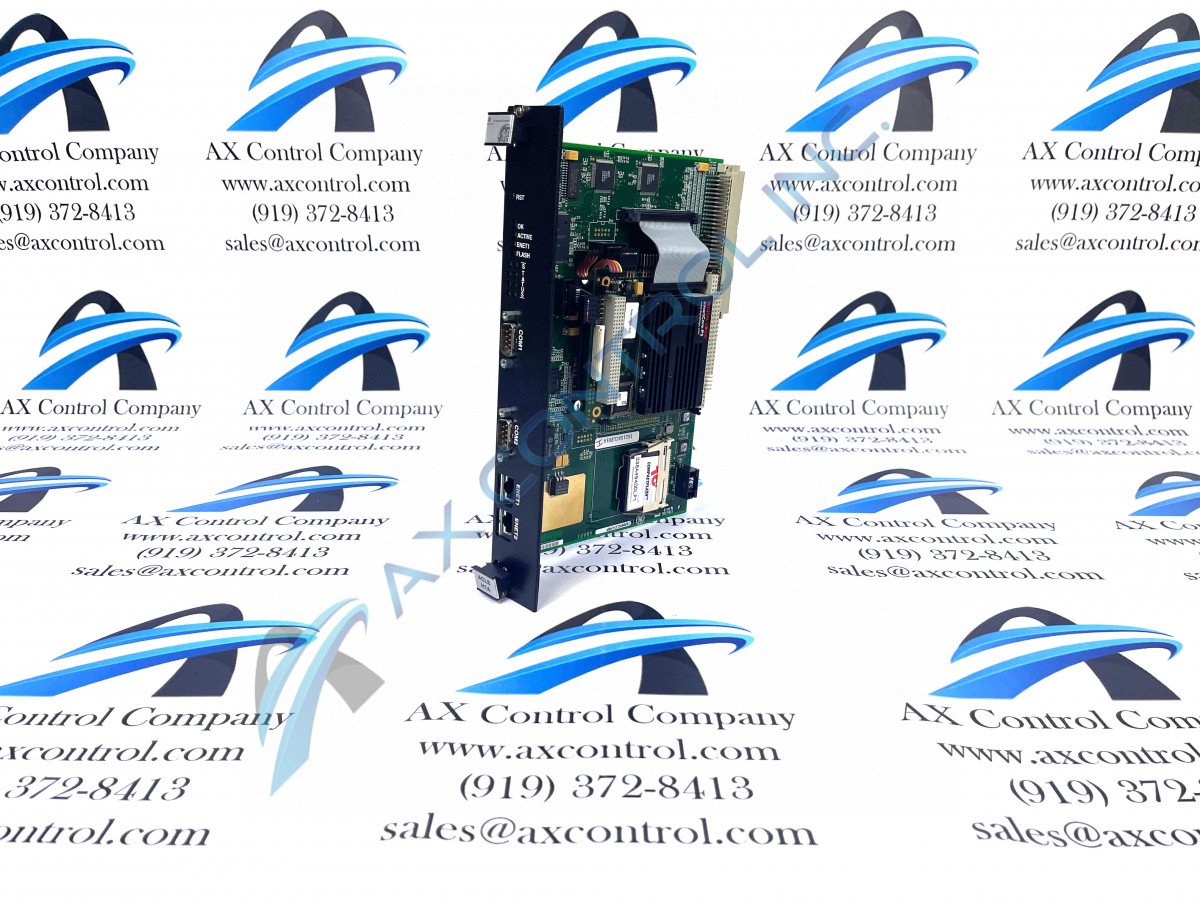

Part IS215ACLEH1A is an Application Control Layer Module, this model has a higher assembly level than the other EX2100 models, this indicates added components. This board is equipped with two half-slots and has two Ethernet ports on the front faceplate.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS215ACLEH1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS215ACLEH1A
  • SKU: IS215ACLEH1AGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS215ACLEH1A Technical Specifications

Assembly Level 215, Higher Assembly and Added Components
Board Description Application Control Layer Module
Board Type Control Board
Manuals GEH-6632 and GEI-100434
Mounting Location Innovation Series Drive or EX2100 Rack
Number of COM Ports Two
Number of Ethernet Ports Two
Model Number IS215ACLEH1A
Common Revisions IS215ACLEH1AB, IS215ACLEH1AC

Product Description

The primary function of the IS215ACLEH1A is to be used as a microprocessor-based controller. This model is part of a series of application control layer modules within the EX2100 series which was produced by General Electric Industrial systems. This board is the first of the ACLE modules and this board is equipped with PCI (peripheral component interconnect) controllers and two Ethernet ports.

When the IS215ACLEH1A model is being mounted it will either be mounted in an Innovation Series Drive or an EX2100 Control Rack. This board has several LEDs, these are the Active, OK, ENET, Status, and Flash indicators, each indicator has a different function, for example, the Active LED will be completely solid when the CPU (central processing unit) is accessing the memory component. One of the software features of the IS215ACLEH1A model is the basic input/output system (BIOS), which will initialize and identify the other hardware forms. The BIOS feature supports the serial loading of an operating system.

While the IS215ACLEH1A model is mostly obsolete at this time it can still be found. The best manual to use with the IS215ACLEH1A model is the GEI-100434 Application Control Layer Module (ACL) manual.

Frequently Asked Questions about IS215ACLEH1A

What is the controller difference between the IS215ACLEH1A and IS215ACLAH1A models?

Nothing, both boards are Application Control Layer Modules.

What board is the IS215ACLEH1A mounted with?

The IS215ACLEH1A model is typically mounted in controllers M1 or M2 of the EBKP Backplane.

What board does the IS215ACLEH1A model share responsibility with?

The IS215ACLEH1A board shares responsibility with the DSPX module. Both modules are microprocessor-based controllers.

Are there any physical differences between the ACLE and ACLA boards?

Yes the ACLA board is a smaller module, being described as a double-slot 3U high module, while the ACLE board is also a double-slot but is a 6U high module.
