Application Control Layer Module IS215ACLAH1A is part of the EX2100 series from GE and controls the AVR, PSS, UEL, and VAR/PF through outer loop controls. This model is also located next to the DSPX module within the EX2100 series.

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS215ACLAH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS215ACLAH1A
SKU: IS215ACLAH1AGBTC

Manufacturer: GE Industrial Systems
Series: EX2100 Excitation Control

Description
Repairs
Warranty
Manuals

IS215ACLAH1A Technical Specifications

Alphanumeric Catalog Number	IS200ACLAH1A
Board Description	Application Control Layer Module
Board Type	Control Board
Functional Acronym/Abbreviation	ACLA

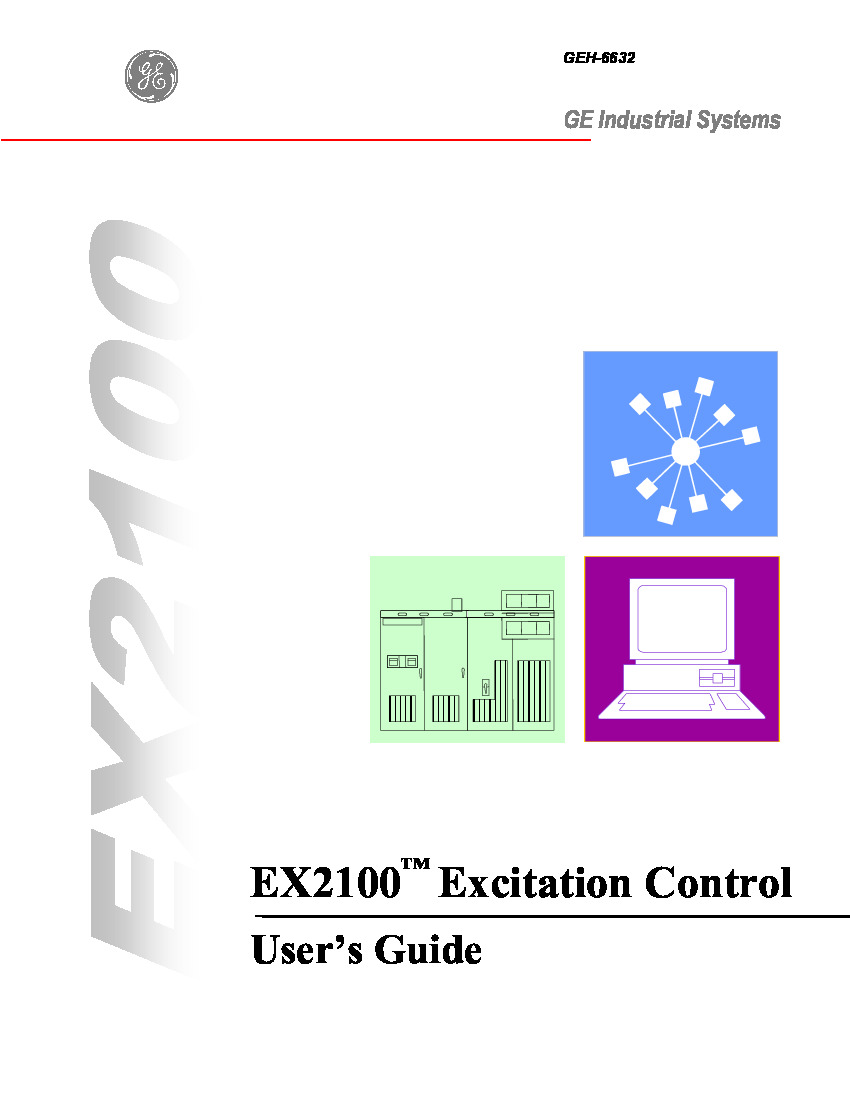

Manual, Series Manual	GEI-100434; GEH-6632
Number of COM Ports	Two
Weight	Approximately 2 pounds

Product Description

Application Control Layer Module IS215ACLAH1A is the only ACLA module from the EX2100 Excitation Control series. This model is specifically designed as a control board model. This board also functions as an Exciter communications module within the EX2100 control rack and Innovation Series Drive. Please note that while this model is no longer being produced it can still be found in new and used surplus, this model can specifically be found at AX Control INC which is related in Raleigh, North Carolina.

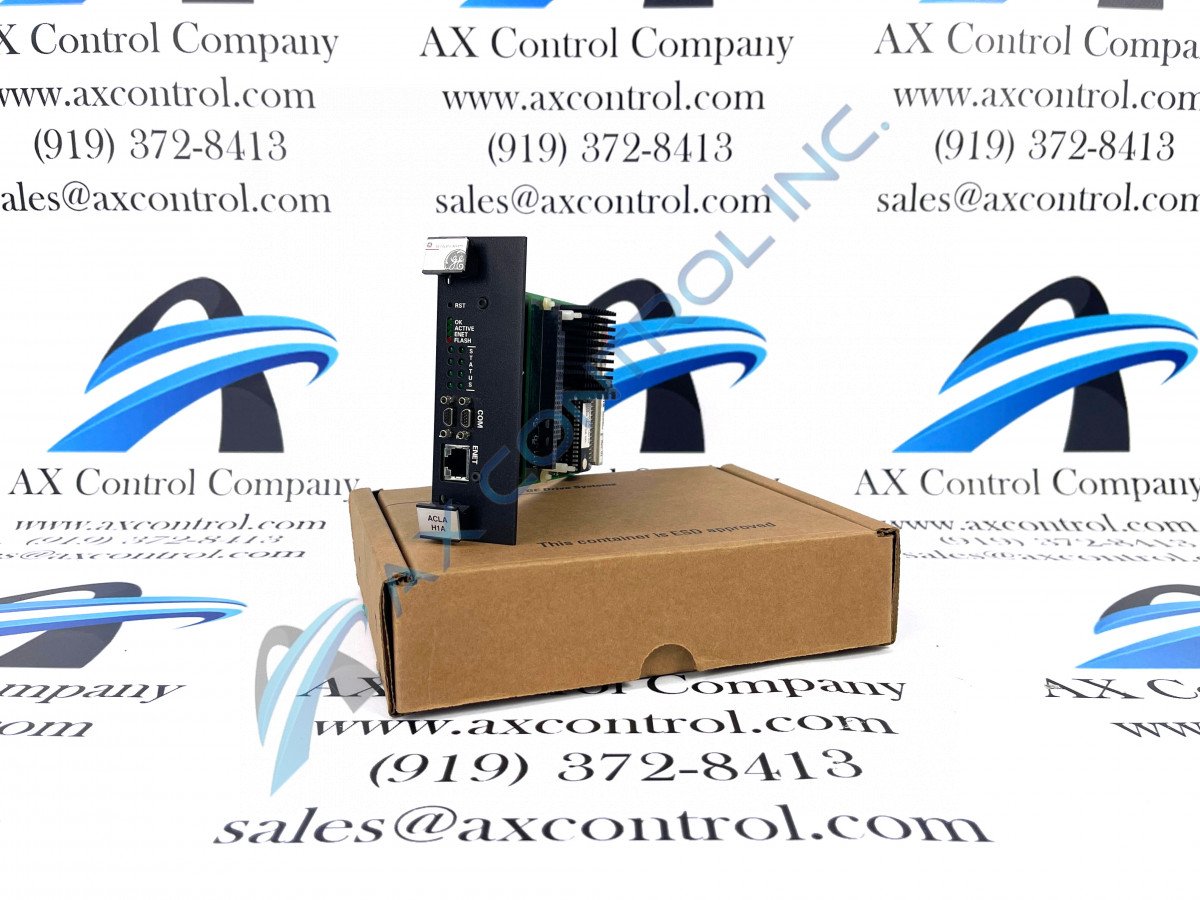

The IS215ACLAH1A model has several components on the front faceplate of the board, which include an Ethernet port, a reset switch, two sets of LEDs, and two COM ports which are labeled as COM2 and COM1. This model has a PCI/ISA bridge, this feature is connected to the PCI controller through the CPU address bus, typically the PCI/ISA bridge is used to control the system clock generator, ISA bus control logic, and IRQ to PCI interrupt routing.

If you have any questions regarding the IS215ACLAH1A board please feel free to contact us by email at sales@axcontrol.com or by phone number at (919) 372-8413 during our 8 a.m. to 5 p.m. Monday through Friday business hours.

Frequently Asked Questions about IS215ACLAH1A

What type of control board is the IS215ACLAH1A model?

The IS215ACLAH1A model is labeled as a microprocessor-based controller that helps execute the exciter control codes.

How many Ethernet cables can be connected to the ACLA controller?

Up to two Ethernet cables can be connected to the ACLA controller, one cable will connect to M1 and the other will connect to M2.

What type of board is the IS215ACLAH1A model?

The IS215ACLAH1A board is a double-slot, 3U high module that provides Ethernet communications with the LCI, HMI, and turbine control.

The IS215ACLAH1A model has a 10BaseT port as well as a T-switch. What types of connectors are used?

The connectors used for the 10BaseT port and the T-switch are RJ-45 connectors.
