Product Description
Model IS210ERGTH1A is an Exciter Regulator Third-party Ground Detector Terminal Board that was specifically designed as part of the EX2100e series. The EX2100e series was designed with enhanced technology in mind. This model is the interface between the third-party ground detector and the EX2100e Control Exciter Regulator Auxiliary I/O (ERAX) board. Compared to other models within the EX2100e system, this model does not require a power supply and can be base or DIN-rail mounted. The ERGT model can be used in dual or simplex control systems.
When the IS210ERGTH1A model is connected to the ERAX board it will convert the nine-pin connector signals from the ERAX to terminal screw connectors through the third-party ground detector. Three outputs are supported by a single third-party ground detector from the ERAX which are as follows, a diode fault monitor, ground detector malfunction, and a ground alarm.

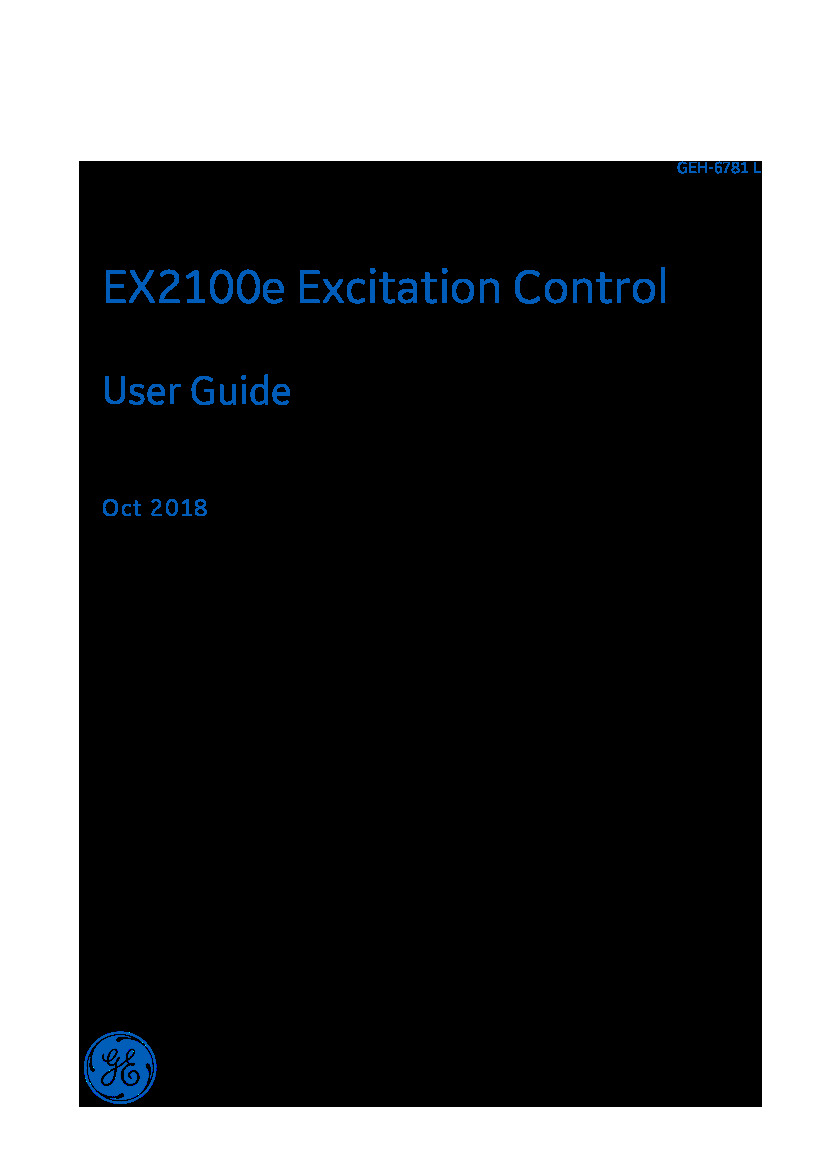

The IS210ERGTH1A board is slightly more advanced as it has an IS210 board rather than an IS200 board, the 200-level boards are base-level boards. The ERGT board has a part-specific manual labeled as the GEH-100531 but cannot be found widely available, the best manual to use is the GEH-6781L manual which focuses on the entire EX2100e series of models.
There are a limited number of IS210ERGTH1A models available due to being out of production and mostly obsolete. At AX Control our team can do its best to help find the model for you if it needs to be replaced. We also offer a three-year warranty for your convenience.
