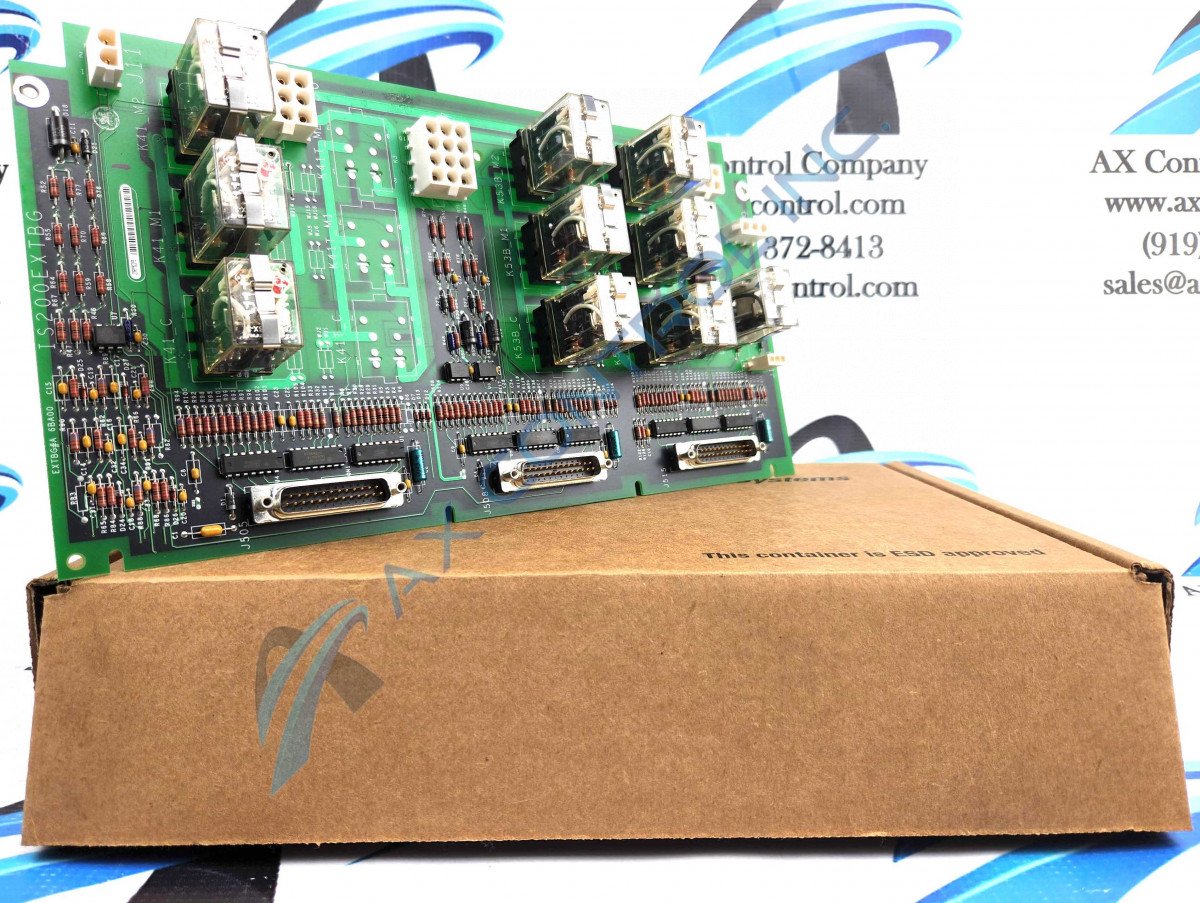

The Input/Output Exciter Terminal Board IS200EXTBG4A is the fourth and final EXTB model, it is a simplex control and is used in breaker mode. This G4A model is the second of the four which uses the trip 41T relay within the board.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200EXTBG4A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200EXTBG4A
SKU: IS200EXTBG4AGBTC

Manufacturer: GE Industrial Systems
Series: EX2100 Excitation Control

Description
Repairs
Warranty
Manuals

IS200EXTBG4A Technical Specifications

Board Description	Exciter Terminal Board
Board Type	I/O Terminal Board
Board Version	EXTB G4
Control Mode	Breaker Mode
Functional Acronym/Abbreviation	EXTB
Redundancy Type	Simplex
Trip Relay 41T Used	Yes
Used With	EMIO, EBKP, and EDEX

About the IS200EXTBG4A

The IS200EXTBG4A model is the fourth and final model of the EXTB series. This specific EXTB model is a complex control and is used in breaker mode, this model is also the second of the four models that can be used with a 41T trip relay. The primary function of this model is to handle all of the protection functions as well as field flashing functions. In relation to the power supply of the model, it will be sent from the M1 or M2 controllers, typically this supply is redundant, and after it has been received it will proceed to be sent to the connected EMIO board which is located in the control rack.

The IS200EXTBG4A model is the final input/output exciter terminal board out of the IS200EXTB models, typically these models are used with the EDEX model to help with the firing of de-excitation. This model is also used to control field breakers within field circuits.

The IS200EXTBG4A is not widely available on the market but AX Control Inc, which is located in Raleigh, North Carolina can do its best to not only help find this model for you but can also help repair the model for you if needed as well.

Frequently Asked Questions about IS200EXTBG4A

Does the IS200EXTBG4A model also use a Close Relay 41?

Yes, along with the Trip Relay 41T the IS200EXTBG4A model uses a Close Relay 41.

How does this model differ from the EXHSG4 model that it can be compared to?

The EXTBG4 and EXHS4 models do not differ. They both operate in a simplex redundancy mode, both control the breaker field circuits, and both use the trip and close relays.

What is the power supply that is supplied to the three contact inputs from the IS200EXTBG4A?

The power supplied to the 41, 53A, and 53B inputs are 70 VDC.

Where are the resulting status signals from the M1 and M2 power supplies sent?

The resulting signals are sent to the EMIO board in the control rack.

Reviews For IS200EXTBG4A

Internal Review

(5.0)

The IS200EXTBG4A model is the final model of the EXTB models and is the only simplex model that can be used with the 41T trip relay. This model is will be used in conjunction with EDEX and EMIO models. - AX Control Tech Team
