IS200EXHSG2A

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

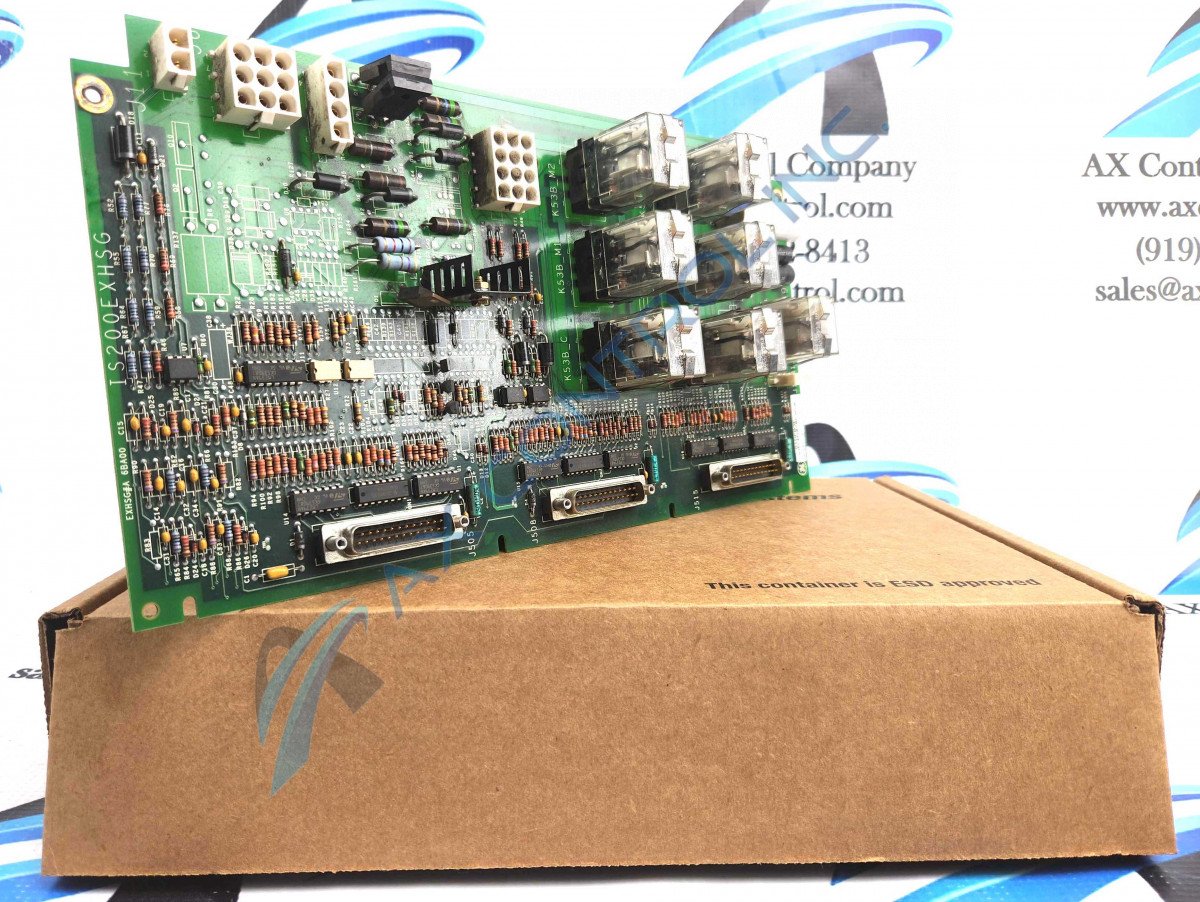

The IS200EXHSG2A is an exciter high-speed relay model. This model is equipped with seven relay connections, each is marked and ends in M1, M2, or C. This board also has eight plug connectors which allow for a multitude of different board connections.

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS200EXHSG2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS200EXHSG2A
SKU: IS200EXHSG2AGBTC

Manufacturer: GE Industrial Systems
Series: EX2100 Excitation Control

Description
Repairs
Warranty
Manuals

IS200EXHSG2A Technical Specifications

Model Number	IS200EXHSG2A
Board Description	Exciter High-Speed Relay Driver
Board Level	Base Level
Functional Acronym/Abbreviation	EXHS
Group Variation	2
Manufacturer	General Electric Company USA, GE Industrial Systems
Number of Plug Connectors	Eight
Series	EX2100 Excitation Controller
Country of Origin	USA
Conditions Available	New and Refurbished
Shipping Weight	6 lbs
Shipping Dimensions	22x16x16 inches

About the IS200EXHSG2A

The IS200EXHSG2A is part of the EX2100 Series made by General Electric Industrial Systems. This board is an Exciter High-Speed Relay Driver. The IS200EXHSG2A is the second group variation of the board. This board is typically used with a high-speed contactor device which allows for higher current applications. This board is equipped with a single heat sink component.

This model has very limited availability but can be found at AX Control INC. If this model is not available then AX Control does its best to offer another model to you. While little information can be found on this particular model, the other models in the IS200EXHS series of parts are the same but can be used with more redundant applications.

Frequently Asked Questions about IS200EXHSG2A

What redundancy type is the IS200EXHSG2A model used in?

The EXHSG2 model is used in a simplex redundancy mode. The control mode used for this mode is the same as the EXHSG1 model, which is contactor mode.

Are there any differences between the EXHSG1 and EXHSG2 models?

Only one. The redundancy types of the two models differ. They both operate in a contactor control mode and only use a close relay.

Is the EXHS model used with any other boards within the EX2100 Series?

Yes, the EXHS model is typically used with the EMIO board.

Where does the power supply for the EXHS board come from?

The power supply for the EXHS board comes from the EPDM model.
