Exciter Regulator Static Control model IS200ERSCG2A can be used in redundant or simplex modes, some of the boards used in the modes are ERRR, ERIO, and ERBP. The pulse-width modulated DC output current is controlled by one of the IGBTs in the IS200ERSCG2A model.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200ERSCG2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200ERSCG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Exciter Regulator Static Control model IS200ERSCG2A can be used in redundant or simplex modes, some of the boards used in the modes are ERRR, ERIO, and ERBP. The pulse-width modulated DC output current is controlled by one of the IGBTs in the IS200ERSCG2A model.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200ERSCG2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200ERSCG2A Technical Specifications

Alphanumeric Catalog Number IS200ERSCG2A
Application Modes Redundant or Simplex
Board Description Exciter Regulator Static Control
Boards Used with this Model ERDD, ERRR, ERIO, ERBP and ERRP
Functional Acronym/Abbreviation ERSC
Number of IGBTs Six
Series EX2100 Excitation Controller

Product Description

The primary function of the IS200ERSCG2A model is to provide pulse-width modulation direct current output. This model is an exciter regulator static control model and is from the EX2100 system. This model can be interfaced with a stand-alone distributed control system via serial communication or Ethernet Modbus. This model has the ability to be used in simplex or redundant operating modes, when being used in these modes some of the boards that could potentially be connected are the ERDD,  ERRR, ERBP, ERRB, or ERIO boards.

The IS200ERSCG2A also offers regulator control of field discharge functions, when this function, as well as the pulse-width modulation, occurs it is being done through one of the six IGTBs that are located on the board. The board performs these aforementioned functions as well as a relay that will allow for the dc-link charging resistors to be bypassed.

This model is the second version of the IS200ERSC models. This model, as well as its predecessor, are both now mostly obsolete, as such, these models are hard to find on the market, but we here at AX Control INC do our best to keep these models on the shelf for your convenience.

Reviews For IS200ERSCG2A
Internal Review

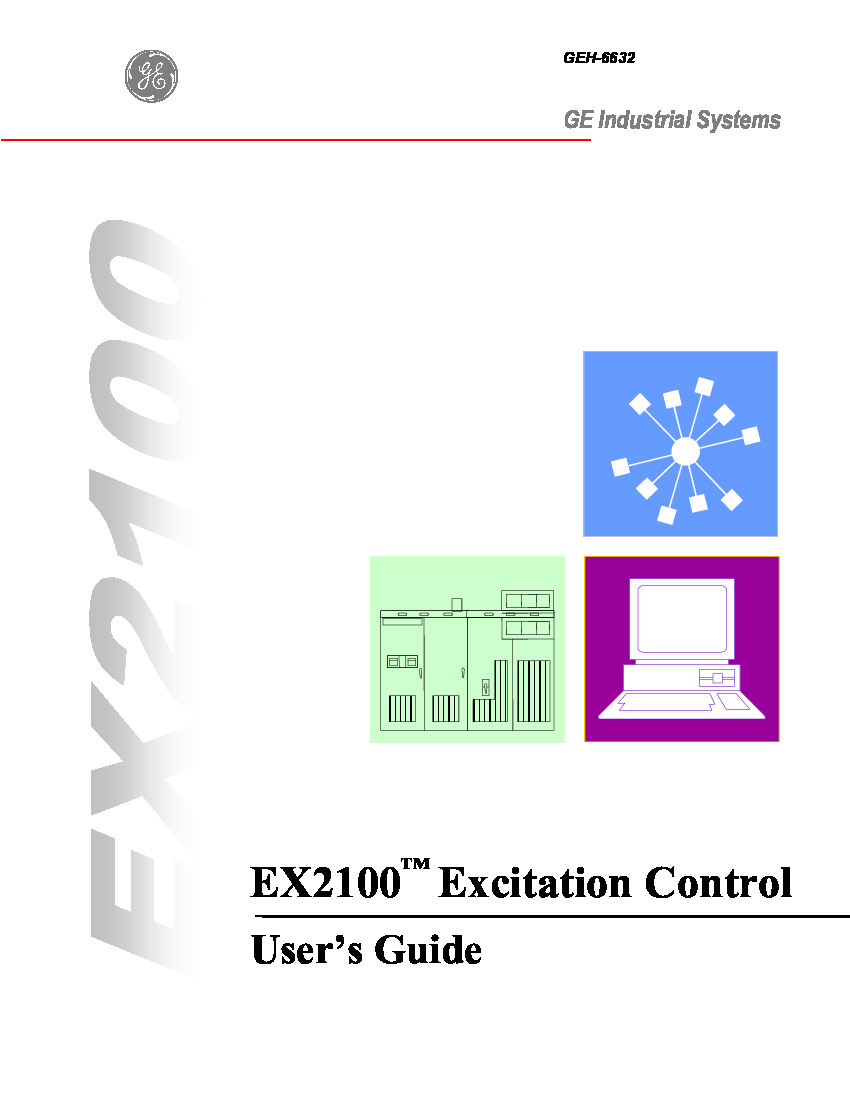

The IS200ERSCG2A lacks information on its usage due to its obsolescence, for more information a series manual can be found attached to the manuals tab. - AX Control Tech Team
