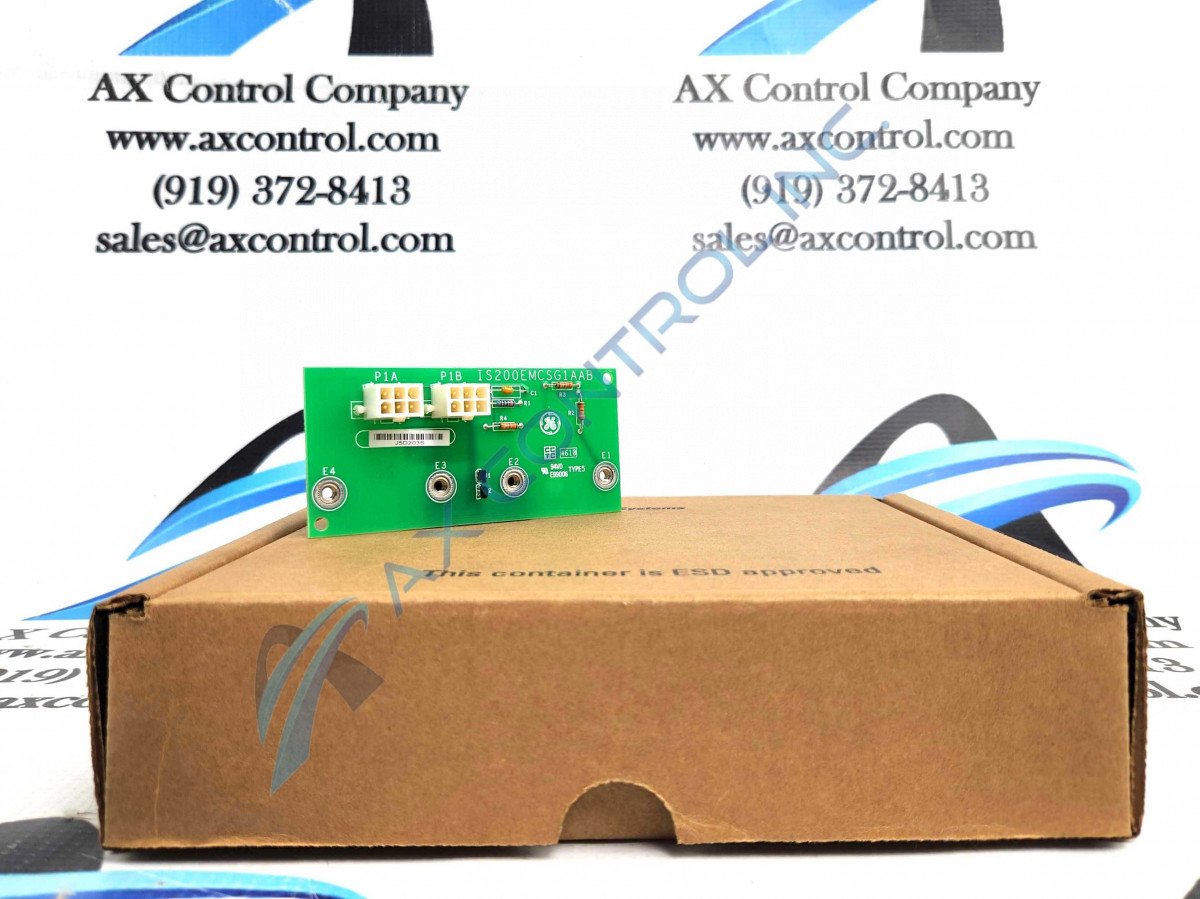

The IS200EMCSG1A part is an Exciter Multibridge Conduction Sensor Card. It has four conduction sensors built into the board, which are labeled E1 through E4. The power supply of the board comes from two six-position plugs which are located on the edge of the board.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200EMCSG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200EMCSG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The IS200EMCSG1A part is an Exciter Multibridge Conduction Sensor Card. It has four conduction sensors built into the board, which are labeled E1 through E4. The power supply of the board comes from two six-position plugs which are located on the edge of the board.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a IS200EMCSG1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

IS200EMCSG1A Technical Specifications

Alphanumeric Catalog Number IS200EMCSG1A
Board Description Multibridge Connector Sensor Card
Connectors Six-plug for Power Supply
Dimensions L: 4.35 Inches W: 2 Inches
Manufacturer General Electric Company USA, GE Industrial Systems
Quantity of Conduction Sensors Four, E1-E4
Weight Less than 1 pound

Product Description

The IS200EMCSG1A model is part of the EX2100 Innovation Series which is produced by General Electric. The module is an Exciter Multibridge Conduction Sensor Control. This board has a total of four conduction sensors built into the board, which are located on the bottom edge of the board and are labeled E1, E2, E3, and E4. Between sensors E2 and E3 there are two independent sensor circuits, which are labeled as U1 and U2.

Another feature of the IS200EMCSG1A board are the two six-plug connectors which allow for a power supply. These connectors are located on the opposite side of the board from the conduction sensors and closest to the alphanumeric catalog number of the board. There are also four metal film resistors and an individual ceramic capacitor located on this board. This board has so few components due to its size but can typically be configured to run at high currents.

The IS200EMCSG1A board is no longer in production but AX Control does its best to keep this board on its shelves. The sensor circuits of the board can be replaced and done so easily by our warehouse team.

Reviews For IS200EMCSG1A
Internal Review

The IS200EMCSG1A board is no longer in production, as such there is little information that can be found about this part, but our team of specialists can do everything they can to help you with this board. - AX Control Tech Team

Repair Services For IS200EMCSG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $890

Our highly skilled technicians can repair your IS200EMCSG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
