EX2100 Model IS200EHPAG1D is a High Voltage Gate Pulse Amplifier from General Electric. It is equipped with 13 electrolytic capacitors of varying sizes and are also made up of different materials. The board also has resistors that are typically made up of a metal film.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS200EHPAG1D to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EHPAG1D
  • SKU: IS200EHPAG1DGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS200EHPAG1D Technical Specifications

Part/Model Number IS200EHPAG1D
Board Version G1
Connector Types D-Sub
Electrolytic Capacitor Materials Polyester Vinyl or Ceramic
Potential Connection Daughterboard
Quantity of Heat Sink Components Six
Quantity of Standoffs and Standoff Location Four, Upper Right Quadrant
Series EX2100 Excitation Controller
Board Type Exciter High Voltage Pulse Amplifier
Abbreviation EHPA

Product Description

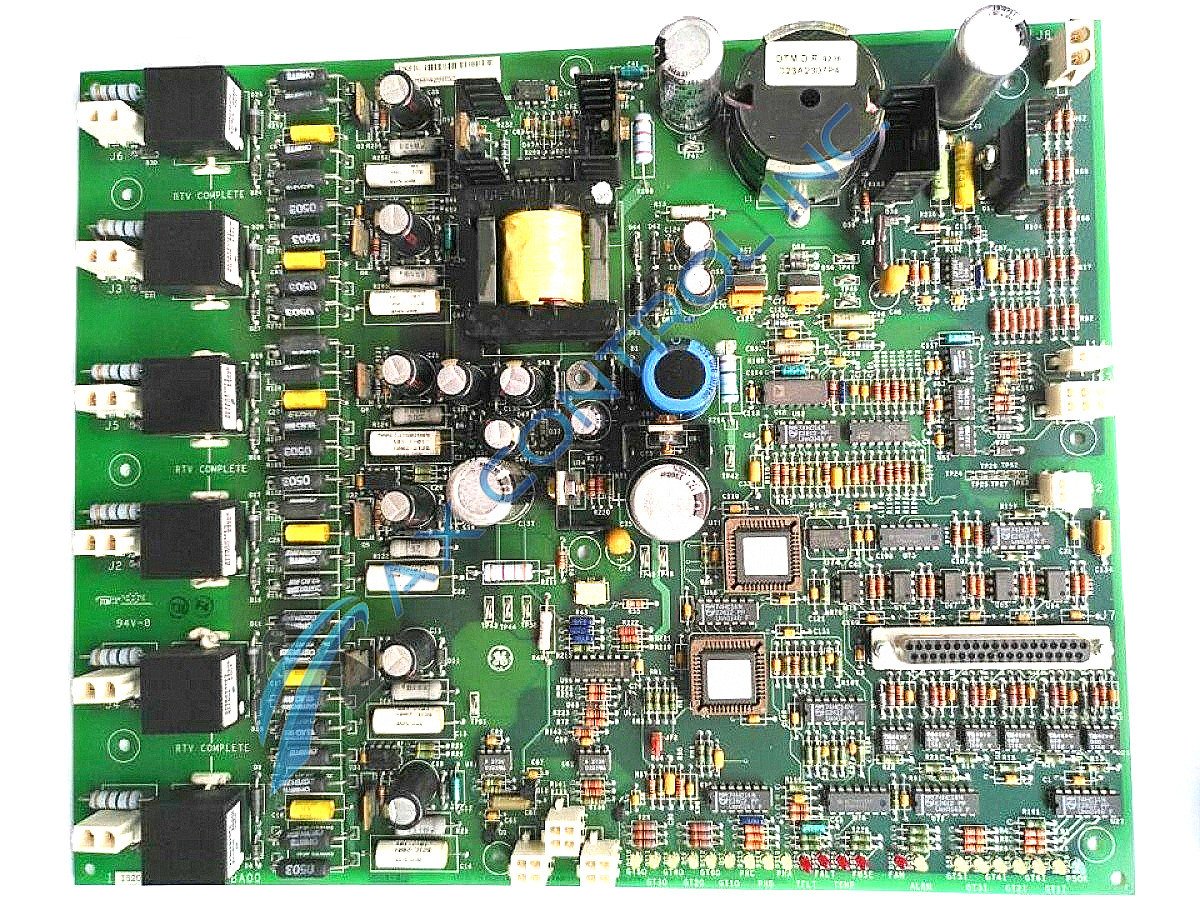

On the IS200EHPAG1D there is a total of eight transformers, six of which are in a line on one edge of the board. This board also has electrolytic capacitors, there are thirteen, which are high-voltage and have various sizes, and are made up of different materials. The IS200EHPAG1D model is the last of the G1 version of the IS200EHPA modules, this model will typically replace the previous IS200EHPA modules as it will have enhancements that the earlier modules don’t have.

There are LEDs on the front edge of the board, if for any reason these LEDs go out they are relatively simple to replace and can be done quickly if there are other issues that occur on your IS200EHPAG1D board you may contact us by phone or email for repair quotes.

Frequently Asked Questions about IS200EHPAG1D

How does the IS200EHPAG1D model differ from previous models?

The IS200EHPAG1D model differs from the previous versions through its functional revision.

Does the EHPA model have an RTD that monitors bridge temperature?

This model does not have an RTD. The RTD that monitors bridge temperatures as well as generates alarms is only available on the EGPA model.

How does the EHPA model control the gate firing of up to six SCRs?

The EHPA model takes the six gate commands from the ESEL model to control the gate firing of the SCRs on the bridge.
