The IS200EHPAG1C is part of the EX2100 Series. The model is an Exciter High Voltage Pulse Amplifier and is comprised of eight transformers. This model can also be used in either simplex or redundant mode and is made up of ten or more resistors.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200EHPAG1C to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EHPAG1C
  • SKU: IS200EHPAG1CGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

❮

IS200EHPAG1C Image One
3 year warranty

❯

IS200EHPAG1C Image 1
IS200EHPAG1C Image 2
visa card logo american express logo master card logo bbb logo duns seal

IS200EHPAG1C

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The IS200EHPAG1C is part of the EX2100 Series. The model is an Exciter High Voltage Pulse Amplifier and is comprised of eight transformers. This model can also be used in either simplex or redundant mode and is made up of ten or more resistors.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200EHPAG1C to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EHPAG1C
  • SKU: IS200EHPAG1CGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS200EHPAG1C Technical Specifications

Board Assembly Level 200, Base Level
Connector Types Plug Connectors; 2-position, 4-position, and 6-position
Functional Acronym/Abbreviation EHPA, Exciter High Voltage Pulse Amplifier
Number of Transistors Upwards of Ten
Quantity of Electrolytic Capacitors 13
Series Innovation Series, EX2100

Product Description

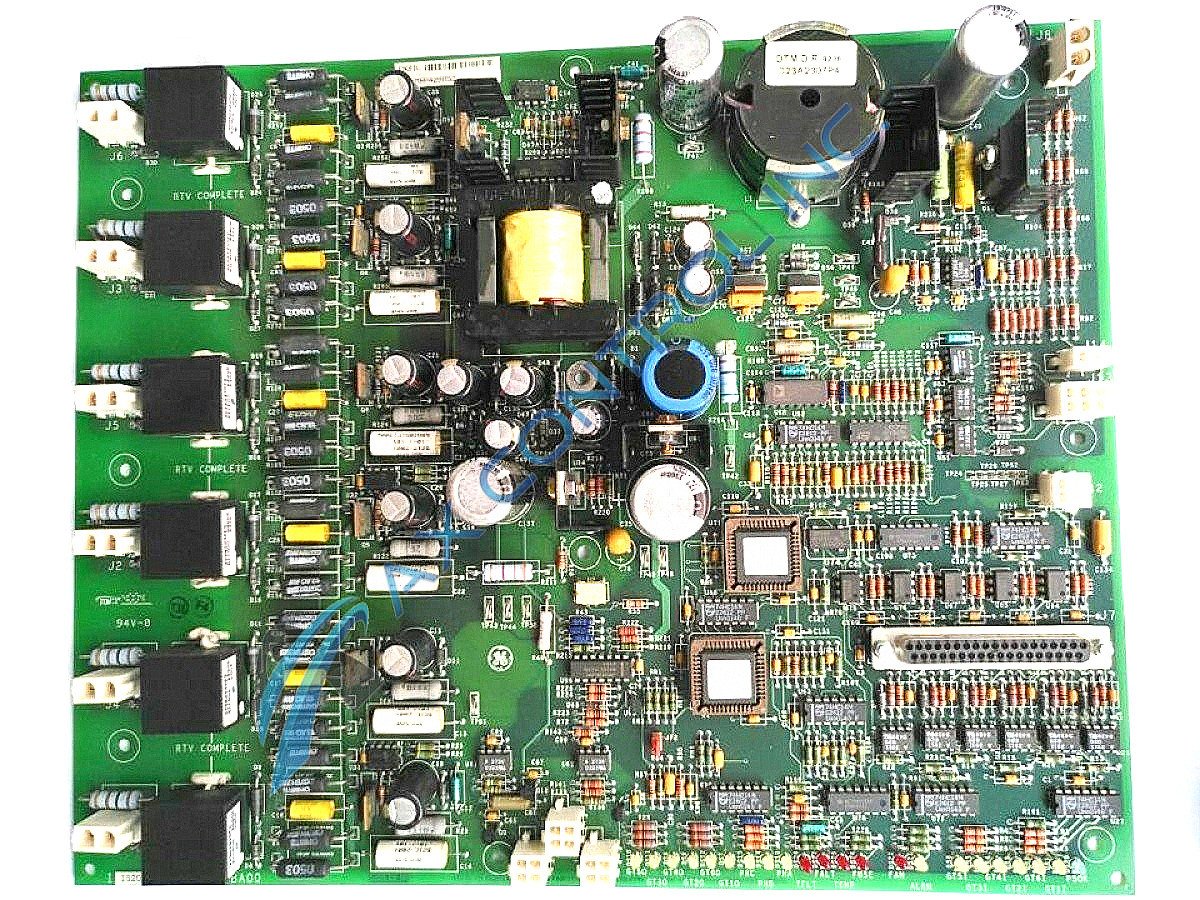

The IS200EHPAG1C is part of the Innovation Series of EX2100 models. This series is produced by General Electric Industrial Systems. This version is the third in the IS200EHPAG series of models. The IS200EHPAG1C module has eight transformers, six of these are aligned on one edge of the board. Four standoff connectors are also within the board. The standoff connectors allow the board to be attached to a daughter board, and connecting a daughter board will allow for the board to be extended.

On this board, there is an ability to control the heat outputs, often there will be excessive heat, when excessive heat occurs there are six heat sink components that will help dissipate the excessive heat. Some other components and features on this unit include several LED warning lights that are located on the front edge of the board, over ten transistors, and two central processing unit (CPU) sockets.

Unfortunately due to the IS200EHPAG1C board being phased out by General Electric market availability on this part is very limited. AX Control does its best to keep the IS200EHPAG1C on our shelves, and our warehouse team can do everything they can to repair your model. For more information regarding this board, you can reach us by phone at (919) 372-8413.

Frequently Asked Questions about IS200EHPAG1C

What is the difference between the EGPA and EHPA boards?

The EGPA and EHPA boards are mostly the same save for the fact that the EHPA board is used on 100 mm thyristors.

Is there a part-specific manual for the IS200EHPAG1C model?

There is but it is difficult to find online. The part-specific manual for the IS200EHPAG1C model is the GEI-100532 Exciter Gate Pulse Amplifier Board User's Guide.

What interfaces does the IS200EHPAG1C control?

The IS200EHPAG1C model interfaces current condition feedback as well as the bridge airflow and temperature monitoring.

How is the IS200EHPAG1C model used with the Bridge Rectifier?

The bridge rectifier has six SCRs, these SCRs are controlled by the EHPA model.

Reviews For IS200EHPAG1C
Internal Review

The IS200EHPAG1C model is mostly obsolete at this time due to being phased out, because this board has been phased out you must be extremely careful when using it to keep it from obtaining damage. - AX Control Technician

Repair Services For IS200EHPAG1C

Type Lead Time Price Action
Repair Service 1-2 weeks $1380

Our highly skilled technicians can repair your IS200EHPAG1C. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
