IS200EHPAG1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product

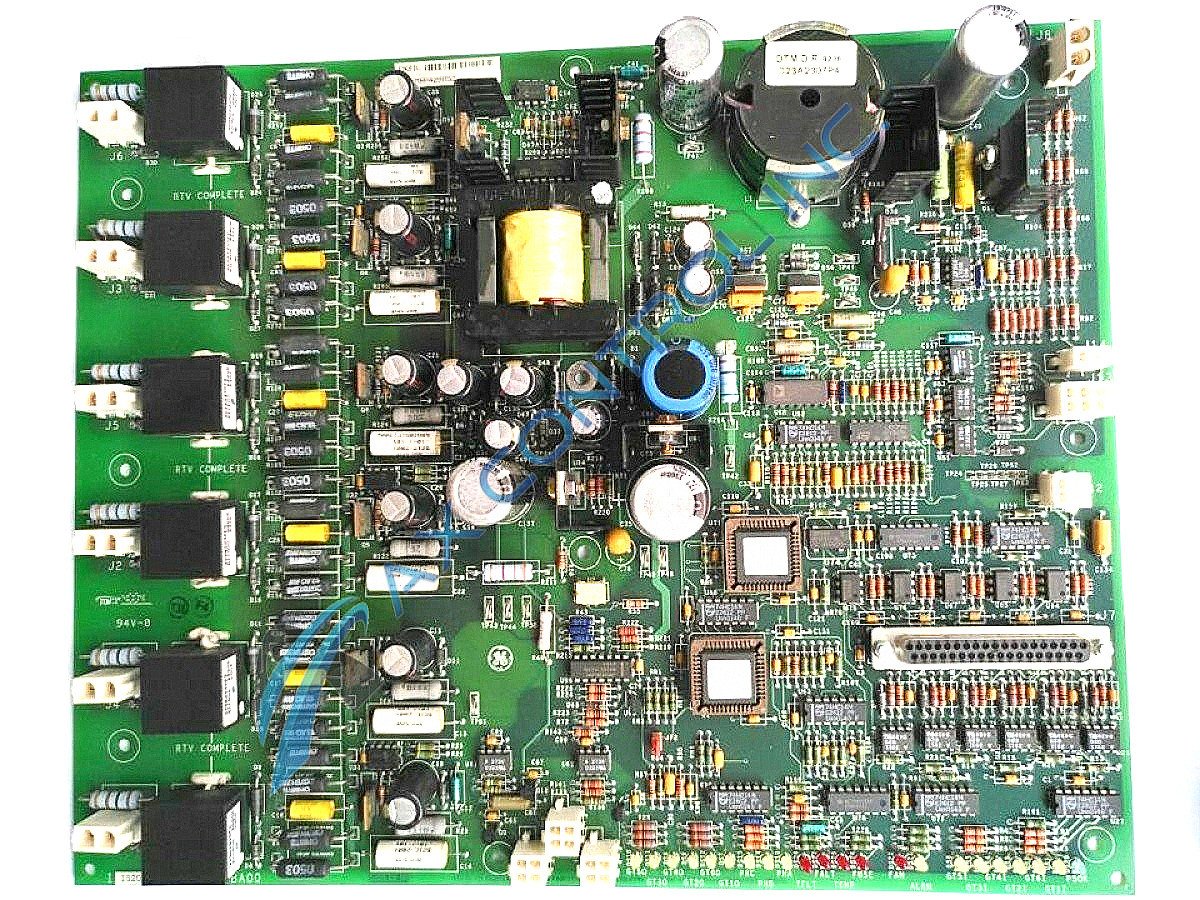

High Voltage Pulse Amplifier Board IS200EHPAG1B is produced by GE and is part of the EX2100 series. This model has several applications which include CPU sockets and a LED strip. The total of CPU sockets on this board is two and has a total of twenty-two LED warning lights.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a IS200EHPAG1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EHPAG1B
  • SKU: IS200EHPAG1BGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 Excitation Control

IS200EHPAG1B Technical Specifications

Board Description Exciter High Voltage Pulse Amplifier
Functional Acronym/Abbreviation EHPA
Material of Resistors Metal Film
Number of Heat Components Six
Number of Standoffs 4
Potential LED Colors Green, Red, and Amber
Quantity of CPU Sockets Two

About the IS200EHPAG1B

The IS200EHPAG1B is an Exciter High Voltage Pulse Amplifier board (EHPA), this model is from the EX2100 Excitation Controller Innovation Series of models and is also produced by General Electric Industrial Systems. This board has heat components that are able to dissipate excessive heat that occurs, in total there are six sink-heat components to allow for the IS200EHPAG1B controller to complete this action.

The IS200EHPAG1B controller has thirteen high-voltage electrolytic capacitors along the board. These capacitors are all of different sizes and materials, some of the materials of these capacitors are ceramic and polyester vinyl. There are also resistors on this board, typically these resistors are made up of a metal film. Another feature of this pulse amplifier board is eight transformers. There is a possibility of a daughter board connection, the possibility of connection is located in the top right quadrant of the board.

Unfortunately, at this time, this part is mostly obsolete but AX Control does its best to keep this product on our shelves. Our team of specialists will carefully pack and ship your IS200EHPAG1B board to ensure that your board arrives at your company without any damage.

Frequently Asked Questions about IS200EHPAG1B

Does the IS200EHPAG1B board interact with any board in the EX2100 Series?

Yes, this model is used with an EMIO board which sends logic-level gate pulse signals to this board.

What wiring board type is the IS200EHPAG1B model?

The IS200EHPAG1B model is a Bridge Protection Board/Module.

What does the IS200EHPAG1B board interface?

The IS200EHPAG1B board interfaces the control to the power bridge.

How many gate pulse amplifiers are needed per PCM?

As this board is the same as the EGPA board it requires one gate pulse amplifier per PCM.

Reviews For IS200EHPAG1B

Internal Review
(5.0)

The IS200EHPAG1B is the version made after the IS200EHPAG1A. The IS200EHPAG1B module has transformers that can be replaced by our team if needed. - AX Control Technician
