IS200EDFFH2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product

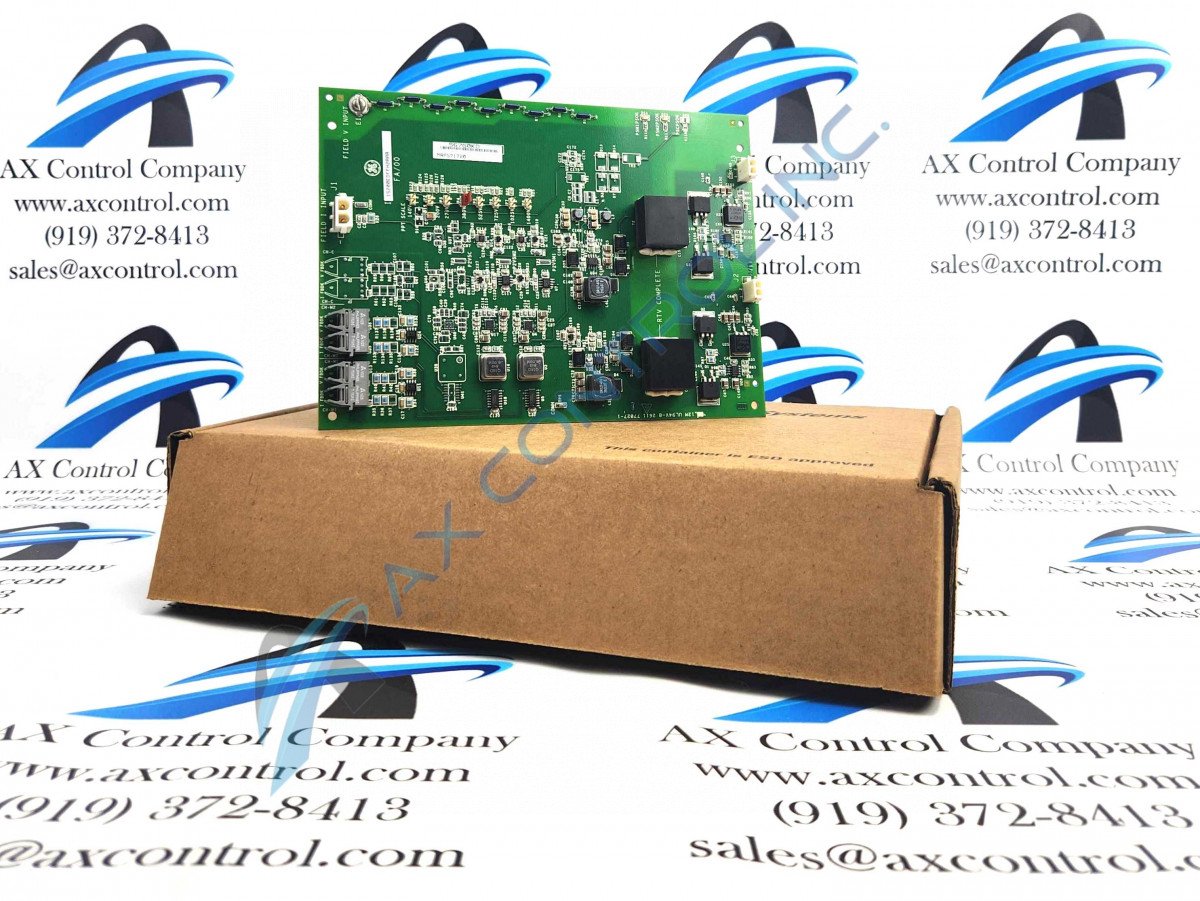

Model IS200EDFFH2A is part of the EX2100e series produced by General Electric as an Exciter DC Fanned Feedback Board. This model operates on a dual system. The IS200EDFFH2A board requires a fiber-optic link that provides voltage isolation between the EAUX and EDFF boards.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200EDFFH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EDFFH2A
  • SKU: IS200EDFFH2AGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 & EX2100e Excitation Control

IS200EDFFH2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Model IS200EDFFH2A is part of the EX2100e series produced by General Electric as an Exciter DC Fanned Feedback Board. This model operates on a dual system. The IS200EDFFH2A board requires a fiber-optic link that provides voltage isolation between the EAUX and EDFF boards.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a IS200EDFFH2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS200EDFFH2A
  • SKU: IS200EDFFH2AGBTC
  • Manufacturer: GE Industrial Systems
  • Series: EX2100 & EX2100e Excitation Control

IS200EDFFH2A Technical Specifications

Alphanumeric Catalog Number IS200EDFFH2A
Board Description Exciter DC Fanned Feedback Board
Board Type I/O Terminal Board
Functional Acronym/Abbreviation EDFF
Group Variation H2, Dual System
Manufacturer General Electric Company USA, GE Industrial Systems
Series EX2100e

Product Description

General Electric’s IS200EDFFH2A model was produced as part of the EX2100e series. The EX2100e series is mostly the same as the EX2100 series, but the ‘e’ in the EX2100e series indicates more advanced technology. There are three different groups of the EDFF model and each group has a different system, as an H2 group model, this unit operates as a dual system. There are eight selector settings on the EDFF board that are used to scale bridge voltages depending on the bridge application.

The IS200EDFFH2A can measure field currents and is measured using a shunt within the dc field circuit. The fiber-optic link connected between the EUAX and EDFF board is used to provide voltage isolation between the two boards and is also used to help with high-noise immunity. The EDFF model is made up of two V-F (voltage-to-frequency) converter circuits, which are used for field current and field voltage feedback, and can be used for up to three redundant control sections.

Model IS200EDFFH2A is used as an Exciter Internal Input-Output board to supply feedback within the EX2100e series. If you have any questions regarding purchasing this model please reach out to us during our Monday through Friday business hours for a pricing quote, to reach us please email us at sales@axcontrol.com or call us at (919) 922-5597.

Reviews For IS200EDFFH2A
Internal Review

The IS200EDFFH2A model is a dual-system unit. There is no specific information regarding how the dual-system units work within the GEH-6781 EX2100e Excitation Control Users Guide. - AX Control Technician

Repair Services For IS200EDFFH2A

Type Lead Time Price Action
Repair Service 1-2 weeks $1955

Our highly skilled technicians can repair your IS200EDFFH2A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
