The F31X309SPCAJG1 is a GE SIGNAL CONDITIONER CIRCUIT BOARD

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a F31X309SPCAJG1 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

F31X309SPCAJG1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The F31X309SPCAJG1 is a GE SIGNAL CONDITIONER CIRCUIT BOARD

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a F31X309SPCAJG1 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

F31X309SPCAJG1--GE Signal Process Board

The F31X309SPCAJG1 is a PCB component manufactured as part of the 531x series of boards.  These boards are not designed for any particular system but rather can be used within several general purpose drive systems designed by GE, including the DC-300 drive.  These general purpose drives are typically used in industrial applications.

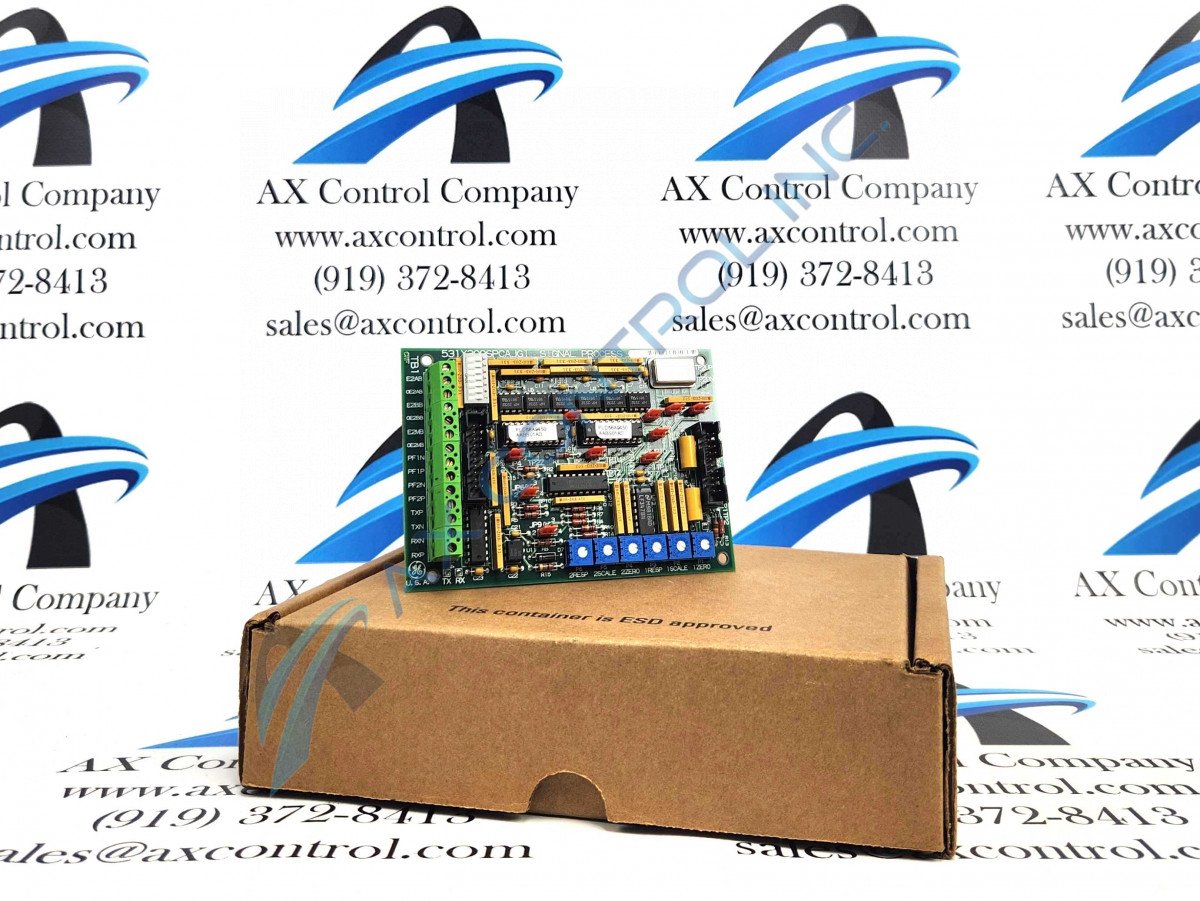

The F31X309SPCAJG1 functions as a Signal Process board.  This is a small board with most components marked by designators.  The board has factory-made drill holes near each corner. This board is marked with the codes 006/06 and CWF.  It is also marked with a secondary number of 531X309SPCAJG1.

The F31X309SPCAJG1 has a single switch component.  This is located in the upper left quadrant. It has seven toggles that can be set to “Open” or to the default off position. The board has a fourteen position screw terminal strip that is placed along the left edge.  It also has two vertical male multi-pin cable connectors.

The F31X309SPCAJG1 has twenty-one resistor network arrays.  These are marked 8r-Z83-331. The board has nine jumper switches. It has six potentiometers that are marked 1 and 2 Resp, 1 and 2 Scale, and 1 and 2 Scale.  Other components on the board include ceramic capacitors, polyester vinyl capacitors, metal film resistors, and diodes. The board has multiple integrated circuits that include analog line drivers, analog buffers, analog operational amplifiers, and oscillating chips.  More information regarding the board, its components, the operation of the board or installation instructions can be found in manufacturer publications such as user guides and manuals.
