The F31X304IBDAMG1 is a Base Drive Card

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a F31X304IBDAMG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: F31X304IBDAMG1
  • SKU: F31X304IBDAMG1GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

About the F31X304IBDAMG1

F31X304IBDAMG1--Base Drive Card

The F31X304IBDAMG1 is a circuit board component fabricated by General Electric for use within its general purpose drive systems, like the DC-300 and AC-300.

The F31X304IBDAMG1 functions as a Base Drive Card.  It has a secondary board identification number of 531X304IBDARG1.  It is also marked with codes like 006/09 and C-ESS. The board is drilled in each corner and along the board edges.  It also has several slots cut into board’s surface; these are usually transversed by components.

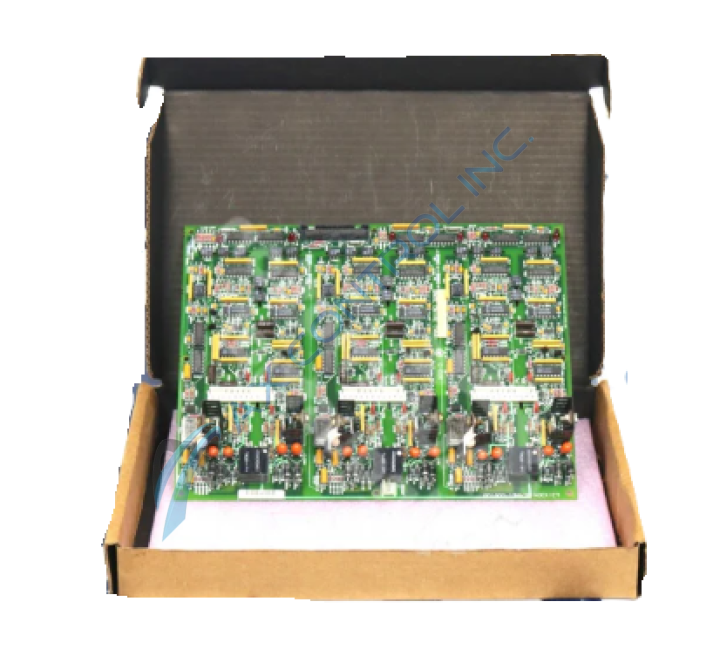

The F31X304IBDAMG1 is a component-dense board.  The card is divided into three parts from left to right, with each part essentially repeating the previous one, with minor variations.   The board has six heat sinks that span across the bottom of the board. It has three transistors. There are six red LED indicators; these are in a single line that spans the top edge of the board.   The board has three vertical pin header connectors that are located side-by-side; each of these connectors has eight pins. The board has an additional two-pin header connector located on its bottom edge, as well as a single vertical pin cable connector located on its top edge.

Other components on the F31X304IBDAMG1 include over fifty resistor network arrays,  twelve jumper switches, six stab-on connectors, and various integrated circuits, diodes, transistors, capacitors, and resistors.  More information on the function, uses, and installation of the F31X304IBDAMG1 may be found through series user guides, manuals, or data sheets.  Please follow all recommended handling and safety procedures.
