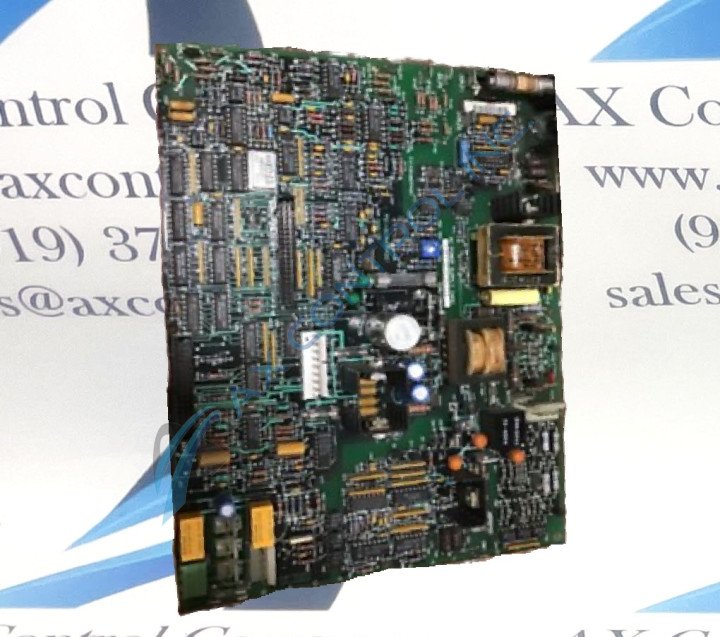

The 531X303MCPAWG1 is a power supply circuit board created by General Electric. The 531X303MCPAWG1 has a large transformer. The 531X303MCPAWG1 two metal brackets on the transformer and four other metal brackets around the circuit board. The 531X303MCPAWG1 has two green light emitting diodes (LEDs) near the center of the circuit board. The 531X303MCPAWG1 features over one hundred resistors. The 531X303MCPAWG1 also has over one hundred capacitors (condensers) over every size and shape to house extra energy. The 531X303MCPAWG1 uses several transistors to amplify the circuit boards electrical signals. The 531X303MCPAWG1 has a few fuses that are used as an electrical fail safe. The fuse will protect the circuit board from power surges by “breaking” and closing the circuit the energy is flowing. Doing this protects the circuit board for additional damage and the fuses can easily be replaced. The 531X303MCPAWG1 has a single crystal oscillator in a silver package. The 531X303MCPAWG1 has multiple microchips. The microchips are called by a few different names depending on the literature you are reading. Their other names are also integrated circuits, IC (for short), or chips. They are used to tell the circuit board how to operate. To connect to the existing system the 531X303MCPAWG1 has multiple male terminals. These terminals are to be used with wiring harnesses with a female type connector.
Please call or email the staff at AX Control for a quote or more details about this circuit board.
*Refer to the data sheets and instruction manuals published by General Electric.
