The 531X300CCHALG2 is a GE Control Card

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 531X300CCHALG2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X300CCHALG2
  • SKU: 531X300CCHALG2GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

About the 531X300CCHALG2

The 531X300CCHALG2 is a PCB component made by General Electric.  This board is not designed as part of one specific system; rather, it is designed for general-purpose drive systems like the DC-300 and other drives like it. General Electric general purpose drives are designed for use in a variety of industrial applications. Please refer to your user guide or manual for compatibility.

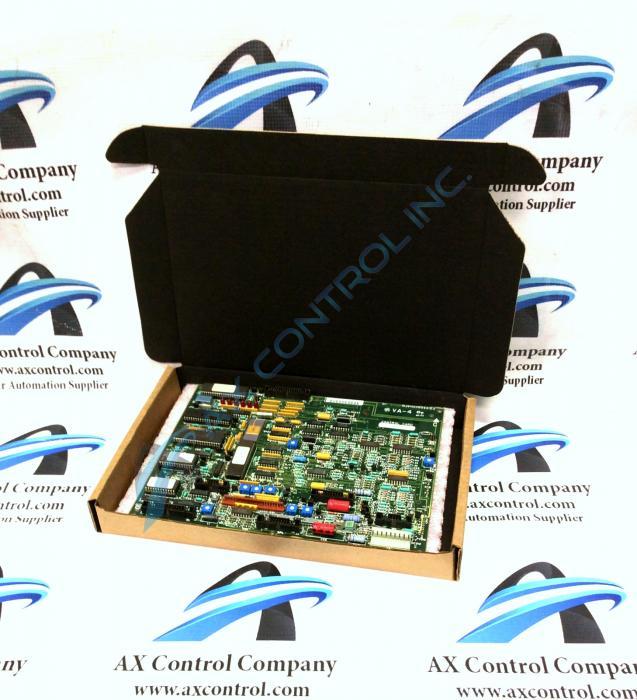

The 531X300CCHALG2 is a Control Board.  It is alternately marked with the number F31X300CCHALG2.  It is also etched with codes CCI-3-0 9944, 002/02, and 006/03.  The board has eight standoffs connected to it. These are used as spacers and connectors for two (optional) auxiliary cards.  These cards communicate with the motherboard via cable connections that plug into vertical pin (male) connectors. The 531X300CCHALG2 has six of these connectors and also has two vertical pin headers.

The 531X300CCHALG2 is populated by eight potentiometers.  It has eleven transistors, twenty-five resistor network arrays, and a push-button switch component.  There are twenty-eight jumper switches and six red LED indicators. These are labeled with the numbers 1, 2, 4, 8, 16, and 32.   The board has an inductor that is located near the bottom left corner. It has several single-pin components that are placed along the right edge of the board.   The board uses surface wiring. Capacitors on the board are made from ceramic, electrolytic material, or polyester vinyl material. Resistors tend to be made from metal film. Manuals, data sheets, or user guides that reference this board number will provide more information on board operation, installation procedures, and safety recommendations.
