531X300CCHAAM5

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
DC300 MCC Card 532X

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 531X300CCHAAM5 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X300CCHAAM5
  • SKU: 531X300CCHAAM5GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

Product Description

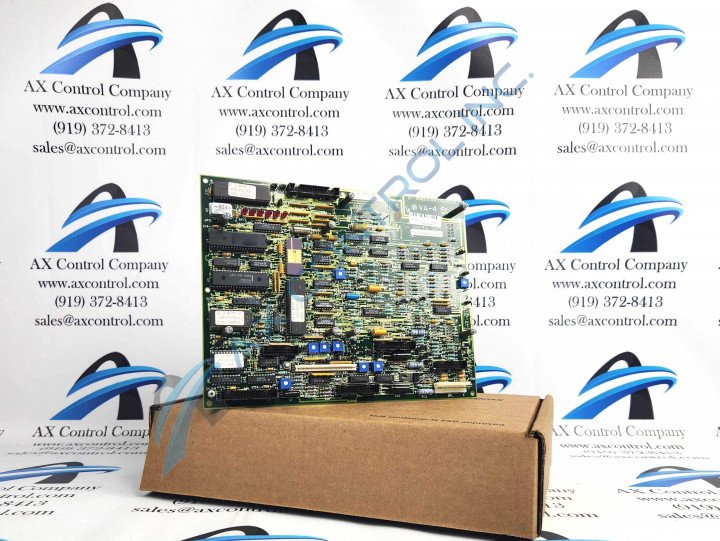

The 531X300CCHAAM5 is an MCC card. The 531X300CCHAAM5 is a compact card with hundreds of smaller pieces. The 531X300CCHAAM5 has eight variable resistors also referred to as potentiometers in manuals. These pieces are used to control tiny amounts of energy. No more than a watt a piece. The 531X300CCHAAM5 has many condensers of various shapes and sizes to store energy. The condensers range from yellow bars to various sized beads. Should the 531X300CCHAAM5 need to get rid of unused or unneeded energy it would direct it to the many resistors. The resistors are used to divide voltage by reducing a currents flow or adjusting its signal levels. The 531X300CCHAAM5 has six red light emitting diodes towards the top of the circuit board. The 531X300CCHAAM5 uses a single crystal oscillator to create specific frequencies for the circuit boards operation. The 531X300CCHAAM5 stores the operational programs in its multiple integrated circuits. In manuals the integrated circuits as also called microchips, chips, or IC (an abbreviation for integrated circuit). The 531X300CCHAAM5 has eight male connectors around the edges of the circuit board.  Six of the connectors have a black housing while the other two have a white housing. The 531X300CCHAAM5 is also considered a Mother board and has eight posts to attach two smaller circuit board that are known as Daughter boards. The Daughter boards rely on the 531X300CCHAAM5 for there energy to operate.

If you would like more information regarding safety and installation procedures refer to General Electric’s data sheets and manuals.

Repair Services For 531X300CCHAAM5

Type Lead Time Price Action
Repair Service 1-2 weeks $457

Our highly skilled technicians can repair your 531X300CCHAAM5. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

531X300CCHAAM5 Manuals, White Papers, Data Sheets, and Troubleshooting
