531X170TBSAGG1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (4)
  • Click a star to rate this product

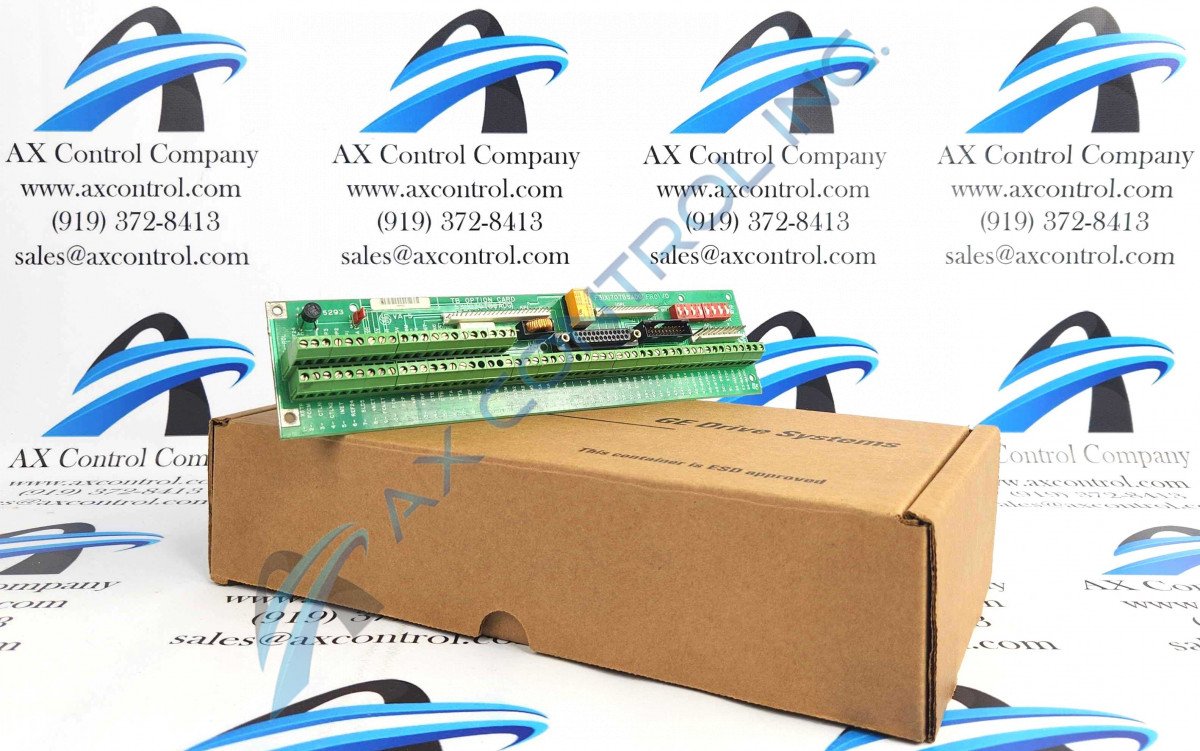

The 531X170TBSAGG1 is a TB Option Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 531X170TBSAGG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X170TBSAGG1
  • SKU: GBTC-14194
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X170TBSAGG1 Technical Specifications

Manufacturer General Electric
Series 531x Boards
Part Number 531X170TBSAGG1
Board Type TB Option Board

About the 531X170TBSAGG1

The 531X170TBSAGG1 is a TB Option Card manufactured by GE for use within several general purpose drive systems. This includes the DC-300 drive. Your system’s manual or user guide will help you determine compatibility with the 531X series of boards.

The 531X170TBSAGG1 have two terminal strips populating the center of the board. These are built with 21 screw connections on one terminal strip and with 54 screw connections on the other terminal strip. Each connection is individually numbered and labeled.

Other components on the 531X170TBSAGG1 include a silicon bridge rectifier diode, a jumper switch, a relay, an inductor coil, and two switch components. There are four toggles located on the top plane of each of these switch components. These toggles can be set to DTE or to DCE. The board has a single capacitor made of polyester vinyl material.

Connectors located on the 531X170TBSAGG1 are several. This includes a stab-on connector, a DC-37 female connector, a vertical pin male cable connector, and three header connectors that include a 24-pin, a 16-pin, and a 9-pin connector.

The 531X170TBSAGG1 is drilled in several locations, including in each corner and within the body of the board. It is marked with the board ID number, the manufacturer logo, and with codes like F31X170TBSADG1, FR00/0, 003/0, and 004/0. User guides and manuals from the manufacturer will provide more information regarding function, installation, and components.

Frequently Asked Questions about 531X170TBSAGG1

What are some of the connection screw labels on the 531X170TBSAGG1?

This includes labels such as Xstp, Pcom, Ctln1, Ctln2, Imet, Ref24, Sld5, Vmet, Fcmet, Pcn, Pcp, Mri, Pfrf, and Dtb on the larger terminal strip and Ref24, Jog, Run, Mup3, Mup2, Mup1, CLA, and Jogr on the second terminal strip.

Can the 531X170TBSAGG1 be mounted?

Yes, the 531X170TBSAGG1 has factory drilled holes designed for mounting.

Reviews For 531X170TBSAGG1

Internal Review
(5.0)

The 531X170TBSAGG1 is a TB Option Board from the 531X Series. This series was originally manufactured by General Electric. The series has since been discontinued, but it can often be found as refurbished parts or quality surplus. The 531X170TBSAGG1 is designed to provide additional capabilities to the host drive. The 531X170TBSAGG1 is compatible with multiple GE drive systems. - AX Control Lead Technician
