The 531X158FFDADG1 is a Fuse Failure PCB

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 531X158FFDADG1 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X158FFDADG1
  • SKU: GBTC-14180
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X158FFDADG1 Technical Specifications

Manufacturer General Electric
Series 531x Boards
Part Number 531X158FFDADG1
Board Type Fuse Failure PCB

About the 531X158FFDADG1

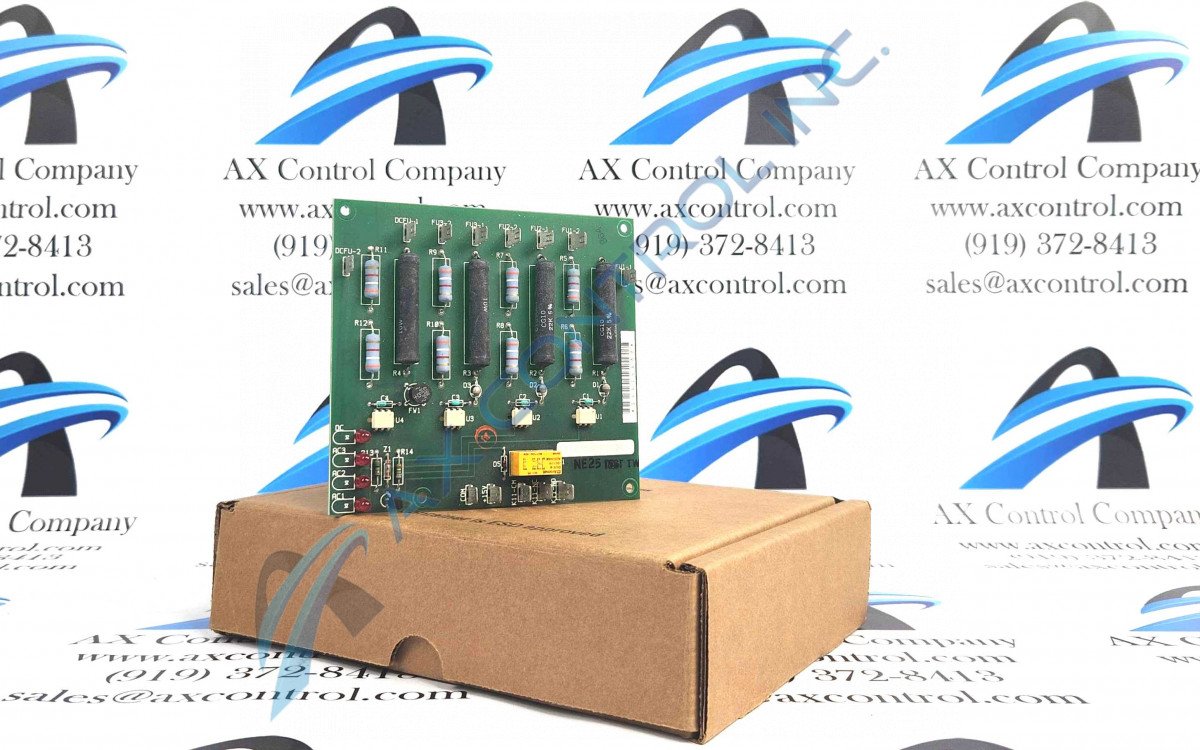

The 531X158FFDADG1 is manufactured by General Electric. The 531X158FFDADG1 is a fuse failure circuit board. This circuit board is a small circuit board.

The 531X158FFDADG1 has four red light emitting diodes (LED).

The 531X158FFDADG1 has five diodes. Each diode is used to direct energy in a single direction. The energy flows towards the end of the diode that has a small line of a different color.

The 531X158FFDADG1 uses four tiny capacitors. Each capacitor creates its own electrical field that is used to house energy the circuit board can draw from later.

The 531X158FFDADG1 has one circular transistor and one small half circle transistor.

The 531X158FFDADG1 has four small IC’s. The IC’s are used to store the instruction manual for the 531X158FFDADG1 to operate.

The 531X158FFDADG1 has thirteen metal tabs around the outside of the circuit board.

The 531X158FFDADG1 uses fourteen various sized resistors. The resistors range in size from tiny to very large. The 531X158FFDADG1 has two small green resistors and eight large resistors which have strips on them. The 531X158FFDADG1 other resistors are large and black with the amount of energy they can disperse written on the side.

To secure the circuit board into place the 531X158FFDADG1 uses four pre-drilled holes. The 531X158FFDADG1 is now considered a discontinued circuit board and is no longer in production.

To receive more intel about the 531X158FFDADG1 call or email the staff at AX Control.

Frequently Asked Questions about 531X158FFDADG1

Is the 531X158FFDADG1 labeled?

The 531X158FFDADG1 has several labels and parts can be identified using the board data sheet.

What are the strips on the resistors for?

These strips are used by engineers to determine the amount of energy these resistors can disperse. The stripped resistors are also axial-lead resistors.

Reviews For 531X158FFDADG1

Internal Review
(5.0)

The 531X158FFDADG1 is a Fuse Failure PCB from the 531X Series by General Electric. This board ensures that the fuses in an electrical system are working. The 531X158FFDADG1 can see if there is a failure and send a signal to the system. The 531X158FFDADG1 is outfitted with a variety of components that help it to function. The 531X158FFDADG1 has either been refurbished or is part of our quality surplus stock. - AX Control Lead Technician
