Product Description

The 531X139APMAKG2 is a board component designed and manufactured by General Electric.  This PCB is designed to fit the DC-300 general purpose drive and several other similar drive systems from General Electric.  These systems are powerful, flexible drives that are typically used in industrial settings. Please review your system’s manual or user guide to establish compatibility.

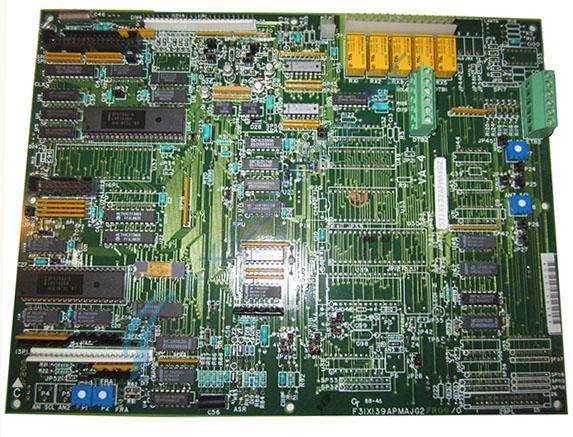

The 531X139APMAKG2 is a rectangular board that functions as an Application Card.  This optional card allows for analog interfaces between external equipment and the control card, which allow the core drive to handle functions needed in applications like material handling cranes and machine tool spindles.    The board is marked with an optional board number (F31X139APMAJ2,) as well as FR00/0, 88-45, VA-4, and 002/0. The board is drilled at the corners and on the edges of the board for mounting.

The 531X139APMAKG2 has five relays located toward its upper edge.  It has two terminal strips with six screw connections. The board has four header connectors. These vary from two-pins to twenty-four pins. One vertical male pin cable connector is located in the upper left corner and a second is located a few inches below the first.

The 531X139APMAKG2 uses surface wiring in several locations.  It has over thirty jumper switches, as well as a few individual terminal pins.  The board is populated by over thirty resistor network arrays, four potentiometers, and four transistors.  It uses ceramic and electrolytic capacitors. Resistors are typically made from metal film material. The board has multiple integrated circuits including analog D/A converters and analog operational amplifiers.  More information on the board and its use may be found through manuals, data sheets or user guides that reference the board number or the series.
