Product Description

The 531X113PSFASG1 is a Power Supply Interface Board manufactured by General Electric.  It is used in various general purpose drive systems from GE and was not created as a component for one specific system.  Please check your system’s user guide for compatibility.

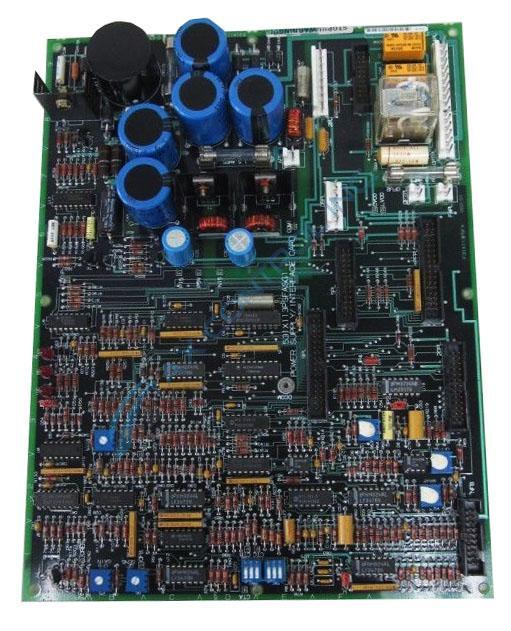

The 531X113PSFASG1 is a component-rich board.  The upper right quadrant of the board is heavily populated by large capacitor components.  These tend to be aluminum electrolytic capacitors. This quadrant also includes three heat sinks and four inductor coils.  The board has three fuses, two here, and one directly below in the lower right quadrant. This quadrant is primarily populated by six header connectors (one two-pin connector, one four pin connector, two six pin connectors, and two 9 pin connectors,) three relays, and several capacitors.  This quadrant also includes one of the board’s vertical pin cable connectors. The 531X113PSFASG1 has a total of six cable connectors. All connectors are male, vertical pin connectors.

Other components that populate the 531X113PSFASG1 include integrated circuits, resistors made of carbon composite and metal film, resistor network arrays, six potentiometers, a switch component with a total of six toggles, jumper switches, TP test points, and diodes, including three LED (light emitting diode) indicators.   Most components are marked with a reference designator for quick identification. If more information is necessary about components or about the function, use, or operation of the board, including maintenance and installation, please refer to manufacturer publications that reference this board number. Technical support for the 531x series was provided by General Electric.
