General Electric 531X111PSHATG3 Motor Field Control and Power Supply Board 531X Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 531X111PSHATG3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X111PSHATG3
  • SKU: 531X111PSHATG3GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X111PSHATG3

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
General Electric 531X111PSHATG3 Motor Field Control and Power Supply Board 531X Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 531X111PSHATG3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X111PSHATG3
  • SKU: 531X111PSHATG3GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

Product Description

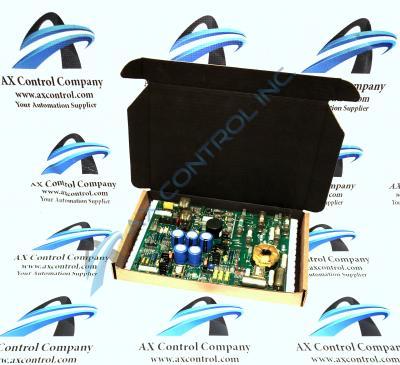

General Electric developed the 531X111PSHATG3 card as a motor field control and power supply board. It is a member of GE’s 531X replacement series of drive boards and cards. Members of this series can be installed in a number of GE older and obsolete models of drives and exciters. This board is a key component of the overall drive system as it provides the power supplies needed for drive operation. Using this board also provides power to the drive’s motor field circuitry. G3 series of this board features MOVs for the AC line that are mounted externally rather than on the board itself.

Proper function of this board is integral to overall board operation. Power supplies rated at 5 VDC, 15 VDC, and 24 VDC are all produced by this card. Motor field circuits are provided with power supplies from the card’s integrated pulse transformer. Three relays found on the board provide users with drive controls. RUN (K1), MAX (K2) and FIELD (K3) are all found on the card. 531X111PSHATG3 includes a number of onboard adjustment controls. The three potentiometers allow users to adjust and calibrate current circuits and feedbacks. These are labelled as P1 (SCALE), P2 (CFB ZERO), and P3 (CFB ADJUST). Feedback and current signals can also be adjusted using the five configurable jumpers integrated into the board.

Provided storage and installation parameters should be met by the user. The manufacturer provided these to decrease the risk of any damages to the drive or its boards. Only permit qualified personnel who are trained to handle these drive boards to install 531X111PSHATG3. Wiring and installation guides can be found in the series manual as well as the board’s datasheet. Technical support was originally provided by the series manufacturer, General Electric.

Our trusted sales team at AX Control is happy to speak with you via phone or email about all of your automation needs. Please contact our office to receive pricing information about the 531X111PSHATG3 board, as well as any other part or repair.

Repair Services For 531X111PSHATG3

Type Lead Time Price Action
Repair Service 1-2 weeks $698

Our highly skilled technicians can repair your 531X111PSHATG3. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
