General Electric 531X111PSHASG3 Motor Field Control and Power Supply Board 531X Series

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 531X111PSHASG3 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X111PSHASG3
  • SKU: GBTC-14045
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X111PSHASG3 Technical Specifications

Manufacturer General Electric
Series 531x Boards
Part Number 531X111PSHASG3

About the 531X111PSHASG3

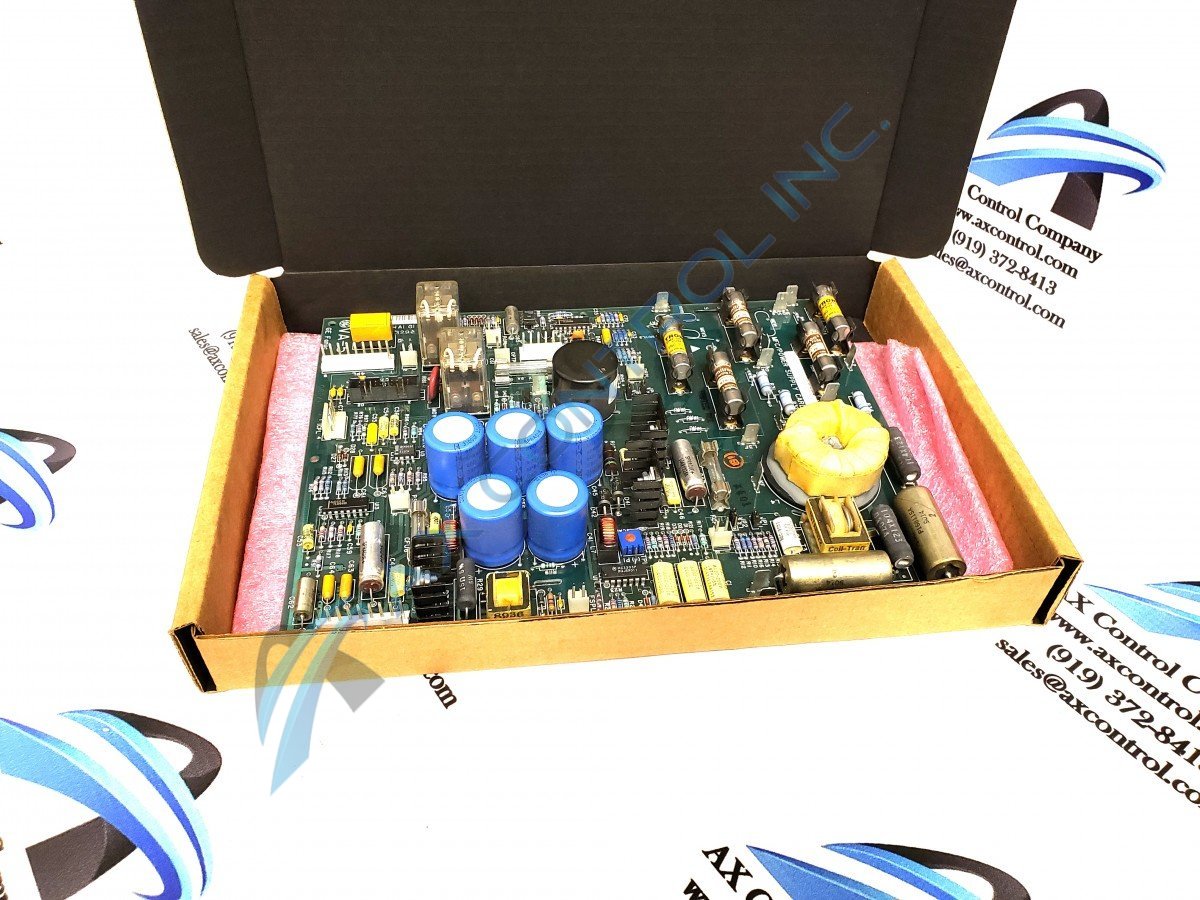

531X111PSHASG3 is a motor field control and power supply board. It is a member of General Electric’s 531X series of replacement boards. This card can be installed in a number of drives and exciters from across the GE brand. Power supplies required by the drive are furnished by this card. It can also power the device’s integral motor field circuitry. Different revisions of this card have been made, resulting in different board configurations. This card is a G3 revision with all MOVs connected to the AC line are externally mounted.

The power board is an integral part of the drive system. Three different power supplies rated at 5 VDC, 15 VDC, and 24 VDC are produced by this card. There are three relays incorporated onto the card as well. These include RUN or K1, MAX or K2, and FAULT or K3. Also included are three potentiometers that allow users to adjust and calibrate circuit and current feedbacks. Five configurable jumpers also allow users to adjust current and feedback signals.

Provided parameters regarding board installation should be met by the user. Following these will lessen the risk of device damages to the board and the drive. 531X111PSHASG3 should only be handled by qualified personnel that are trained to install these types of drive boards. To ensure proper wiring occurs, please refer to the card’s manual and datasheet. General Electric, the device’s manufacturer, was the original provider of technical support.

Our sales team at AX Control is ready to speak with you about all of your automation needs. Information regarding pricing on the 531X111PSHASG3 power supply board, or any other part or repair, can be obtained by calling or emailing our office.

Frequently Asked Questions about 531X111PSHASG3

What does the G3 revision mean for the 531X111PSHASG3?

A G3 revisions adds MOVs connected to the AC line and are externally mounted.

How do the motor field circuitries get their power from the 531X111PSHASG3.

The 531X111PSHASG3 gives power to motor field circuitries through the integrated pulse transformer.

Reviews For 531X111PSHASG3

Internal Review
(5.0)

The 531X111PSHASG3 is a G3 replacement board from the 531X Series by General Electric. The 531X111PSHASG3 provides power to the host drive and the motor field circuitry. The board has multiple adjustable features for users to set to their preferences or needs. The board might have different placements of components due to being a replacement board. The 531X111PSHASG3 still functions fully and properly. - AX Control Lead Technician
