531X111PSHAAG2 Power Supply Board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 531X111PSHAAG2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 531X111PSHAAG2
  • SKU: GBTC-14021
  • Manufacturer: GE Boards & Turbine Control
  • Series: 531x Boards

531X111PSHAAG2 Technical Specifications

Manufacturer General Electric
Series 531x Boards
Part Number 531X111PSHAAG2

About the 531X111PSHAAG2

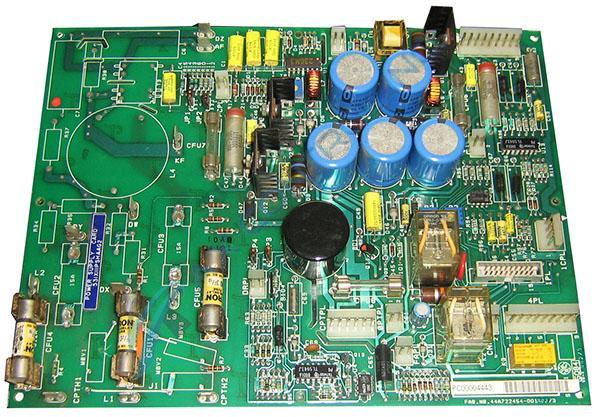

The 531X111PSHAAG2 board was developed by General Electric to function as a motor field control and power supply board. Because of its placement in the 531X series, this card can be installed into a number of older model drives across the GE brand. The required power supply for drive operation is furnished by this card. Be sure to review the installation parameters provided by General Electric before beginning board installation. Device protection is reliant on only permitting qualified users to handle and install this card. A comprehensive wiring guide for the 531X111PSHAAG2 power supply board can be found in the board’s manual and datasheet. General Electric, the device’s manufacturer, was the original technical support provider for the board.

 531X111PSHAAG2 is capable of producing three different voltage supplies for the drive to draw from. A pulse transformer integrated onto the board also provides the supply needed to power the motor field circuits in the host drive. System calibrations and drive control options can be executed with this card. System control options can be executed using one of the three onboard relays.There are also five jumpers and three potentiometers built into the board. The jumpers are used for current and feedback signal adjustments while the potentiometers are used for circuit and current feedback calibrations. The relays are named on the card as:

  • K1 for RUN
  • K2 for MAX
  • K3 for FAULT

Frequently Asked Questions about 531X111PSHAAG2

How much voltage can the 531X111PSHAAG2 produce?

The 531X111PSHAAG2 has three different voltage supplies that it can draw from. The supplies are 5 VDC, 15 VDC, and 24 VDC.

What version was the 531X111PSHAAG2 designed to be a part of?

The 531X111PSHAAG2 was developed as a G2 version, this board is best suited for installation in external exciters.

Reviews For 531X111PSHAAG2

Internal Review
(5.0)

The 531X111PSHAAG2 provides benefits to most of the older GE model drives. The 531X111PSHAAG2 operates as a motor field control and power supply board. The 531X111PSHAAG2 can have three different voltage supplies for the drive to use. This board is capable of providing many different functions, making it a valuable board in the 531X Series. After proper installation, AX is happy to help with any repairs of the 531X111PSHAAG2. -AX Control Lead Technician
