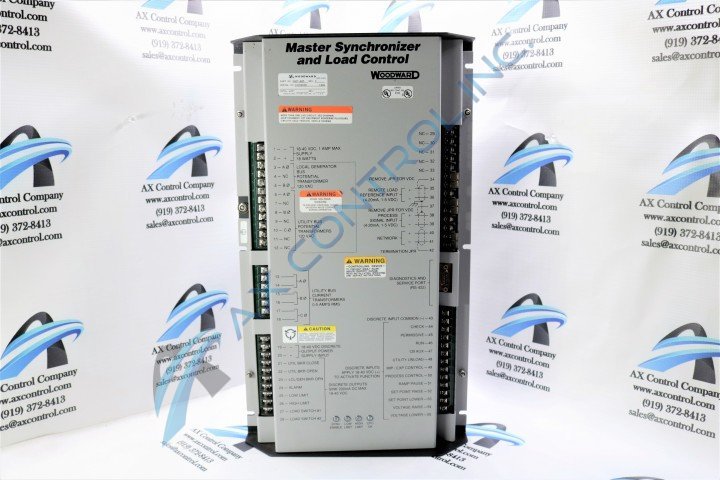

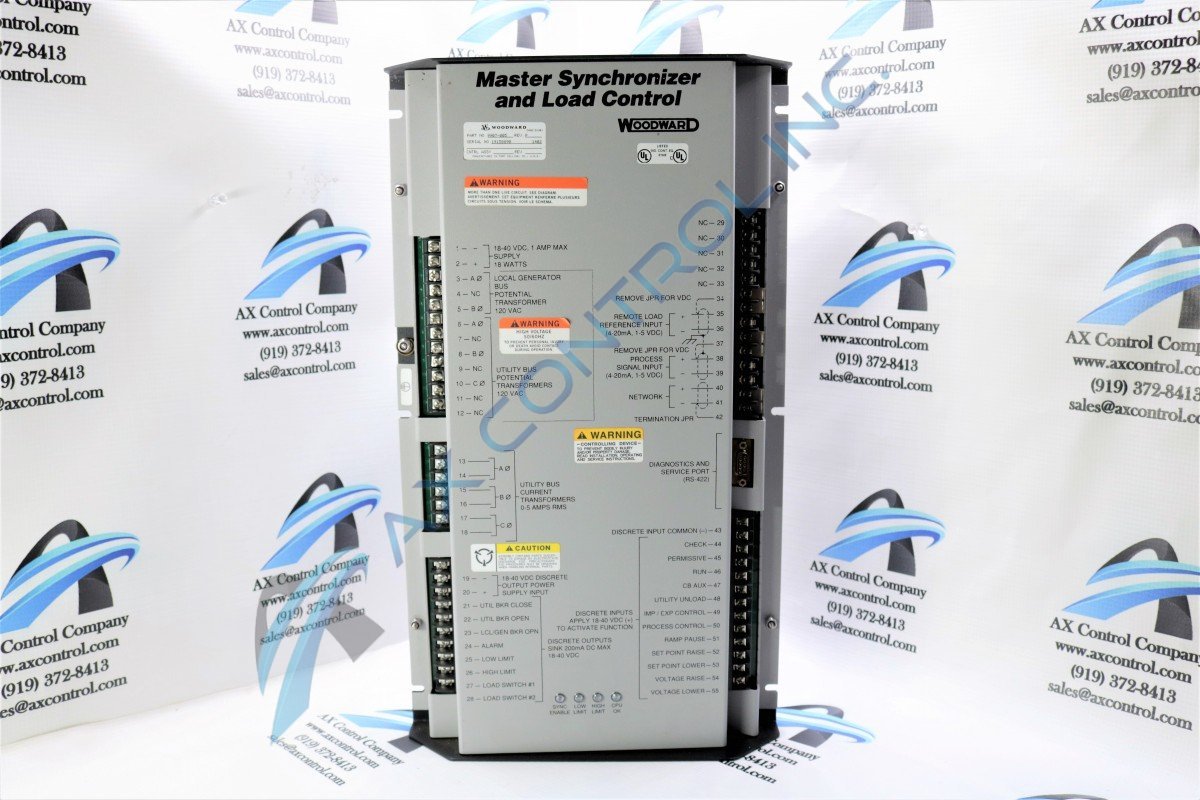

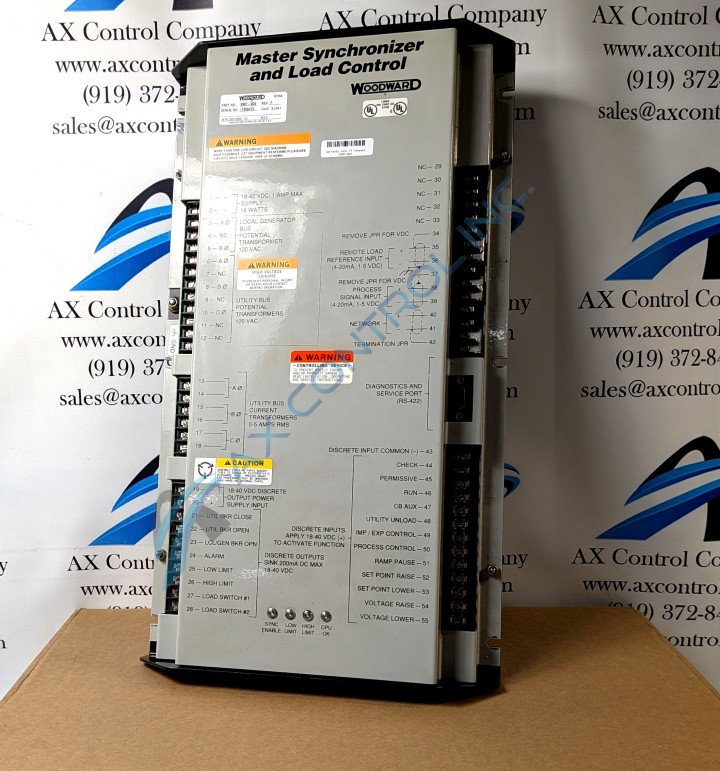

Woodward 9907-005 Master Synchronizer and Load Control. Microprocessor-based load control designed for three-phase electric power generation sites equipped with Woodward DSLC.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 9907-005 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9907-005

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Woodward 9907-005 Master Synchronizer and Load Control. Microprocessor-based load control designed for three-phase electric power generation sites equipped with Woodward DSLC.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 9907-005 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9907-005 Technical Specifications

Manufacturer Woodward
Max Nodes per Bus 64 (0 to +70 °C)
Maximum Stub Length 300 mm (+40 to +85 °C)
Network Isolation 0–60 Hz: 1000 Vrms (for 60 seconds)
Series MSLC

Product Description

The 9907-005 Master Synchronizer and Load Control or MSLC unit is outfitted with numerous functions and features. This unit can act as a synchronizer, a utility load sensor, a power factor module, an import/export load level unit, as well as a master process controller. The 9907-005 model is able to provide operators with a choice between phase-matching or automatic synchronizing for the local plant bus to the main power grid. The 9907-005 is outfitted with the Echelon LonWorks network technology components in order to control real and reactive loading against the utility bus by the DSLC-equipped generator systems.

The 9907-005 unit is outfitted with a set of different operating modes. The Import and Export Control manages the real load and reactive power across the utility tie. There are several environmental factors that should be taken into account when this unit is being installed. The first is that its operating temperature is between negative forty to seventy degrees Celsius or negative forty to one hundred and fifty-eight degrees Fahrenheit. The control also needs to be stored in a room that is kept between negative fifty-five to one hundred and five degrees Celsius or negative sixty-seven to two hundred and twenty-two degrees Fahrenheit. Your control should also be used and kept in an area that has low humidity.

AX Control is more than equipped to buy, sell, repair, and recondition this control model for you. If you wish to inquire about the repair services you can contact us by phone or email to get a quote.

Reviews For 9907-005
Internal Review

This unit contains the ability to function as a synchronizer, a utility load sensor, a power factor module, an import/export load level unit, as well as a master process controller. Powered up and worked great! Read the manual prior to installation to ensure the control is working properly. - AX Control Tech Team

Repair Services For 9907-005

Type Lead Time Price Action
Repair Service 1-2 weeks $1193

Our highly skilled technicians can repair your 9907-005. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
