Woodward MicroNet Simplex Power Supply Board 5501-465 operates on an input voltage of 24 VDC, the board will have a holdup time of five milliseconds. When redundant power supplies are used the 5501-465 board will occupy three slots.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 5501-465 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5501-465
  • SKU: 5501465WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5501-465 Technical Specifications

Nominal Voltage Range 20 to 32 VDC
Storage Temperature –40 to +105 °C
Standards CSA, CE (LVD), CE (EMC), ABS, DNV, LRS
Operating Range 18 to 36 VDC
Chassis MicroNet Simplex
Max. Power 531 W
Max. Current 2.95 A
Input Power Fuse/Breaker Rating 50 A Time Delay

Product Description

Model 5501-465 is another power supply board, but is specifically designed as a MicroNet Simplex model for the digital control series. There are specific time delays and wire sizes required when operating the board at a specific input voltage range. The input voltage range for this board is eighteen to thirty-two volts of direct current, the maximum fuse/c.b rating or the time delay will be fifty amperes; the wire size needed is ten millimeters squared or eight American wire gauge. Please advise that the wires used must be rated for a minimum of one-hundred sixty-seven degrees Fahrenheit for use at an ambient temperature of ninety-five degrees Fahrenheit.

The 5501-465 board has four LEDs which are, an OK, a power supply fault, an input fault, and an overtemperature LED. There are some troubleshooting checks that can be performed, one potential error that can occur is the voltages are not correct; to ensure that the voltages are correct be sure that the provided power supply is in the correct range.

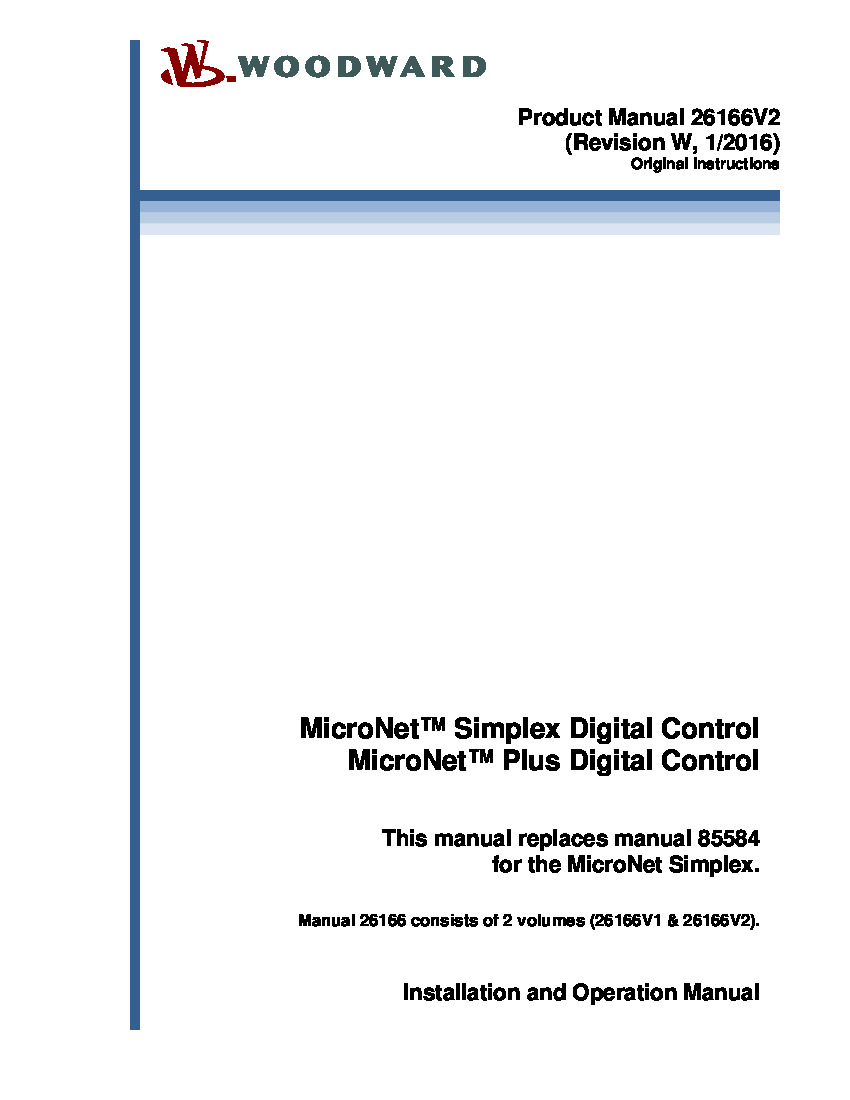

This model has several standards that it meets, the standards for the 5501-465 board are CSA, CE, both EMC and LVD standards, DNS, ABS, and LRS standards. This information can be found in the 26166V2 manual which provides a number of standards and which standards it meets.

AX Control offers this board in both new and used surplus, although the model is typically used. For more information regarding the pricing of this board as well as shipping times and cost, please reach out to our sales team at sales@axcontrol.com or (919) 372-8413.
