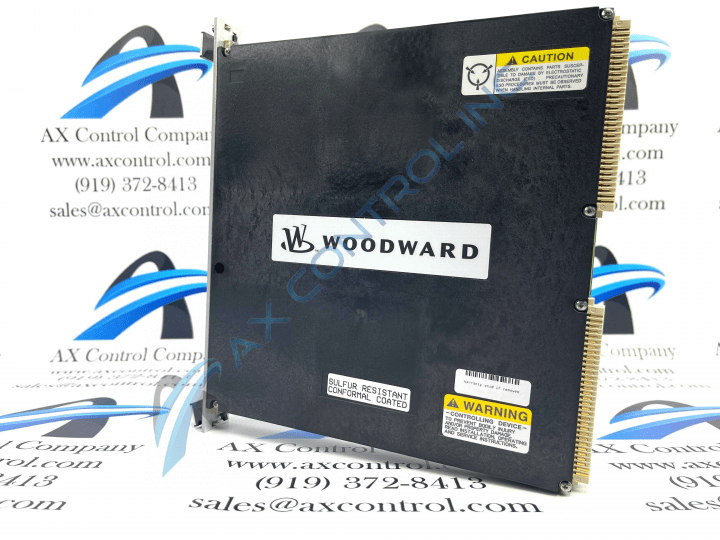

MicroNet Simplex High-Density Analog I/O module 5466-5026 is a 24/8 Analog Smart-Plus module that can be used with GAP and AppManager applications. The 5466-5026 unit does not have any potentiometers and requires absolutely no calibration.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-5026 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-5026
  • SKU: 54665026WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-5026

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
MicroNet Simplex High-Density Analog I/O module 5466-5026 is a 24/8 Analog Smart-Plus module that can be used with GAP and AppManager applications. The 5466-5026 unit does not have any potentiometers and requires absolutely no calibration.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-5026 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-5026
  • SKU: 54665026WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-5026 Technical Specifications

Air Quality Pollution Degree 2
Input Voltage 0-25 mA or 0-5 V
Installation Overvoltage Rating Category II
Manufacturer Woodward Inc, Fort Collins CO
Maximum Altitude 4000 m
Model Simplex High-Density Analog I/O
Redundancy Type Simplex
Sound Level < 70 dBA
Storage Temperature –40 to +221 °F
Weight 48 lbs. (22 kg) when in Chassis

Product Description

The 5466-5026 module is a 24/8 High-Density Analog I/O, it will only operate in a simplex system. This module is backward compatible and can be used with part number 5466-332. This unit will be installed in the card guide of the chosen chassis and will plug into the motherboard and will connect through two high-density cables to up to two field transition modules. Any and all inputs and outputs will be obtainable on the FTM, the channels are also specifically labeled so they can be used to correspond to their specific software locations.

There are three different types of configurations available to be used with the 5466-5026 module. If you wish to use all of the 4-20 mA inputs the module should be set to the second configuration; when in the second configuration all of the inputs can be used with the Dataforth input plugin. This feature allows voltages to be blocked and the factory voltage calibrations with a 200 Ohm resistor.

There are a number of LEDs on the front panel of the 5466-5026 board that will indicate faults based on the number of flashes. A few examples of this are if the LED flashes three times a failure of the flash memory has occurred; if there are thirteen flashes a parameter or configuration error has occurred. When these errors occur examine the chassis’s installed CPU, if a failure has occurred then it is likely that the CPU has failed. Check to make sure that the CPU has been installed correctly and if things are installed correctly it is likely that the module will need to be replaced.

Reviews For 5466-5026
Internal Review

This module is the first of the MicroNet Simplex High-Density modules but can only have 4-20 mA inputs rather than both 4-20 mA and 0-5 volts. For more information refer to the 26166 manuals. - AX Control Tech Team

Repair Services For 5466-5026

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 5466-5026. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
