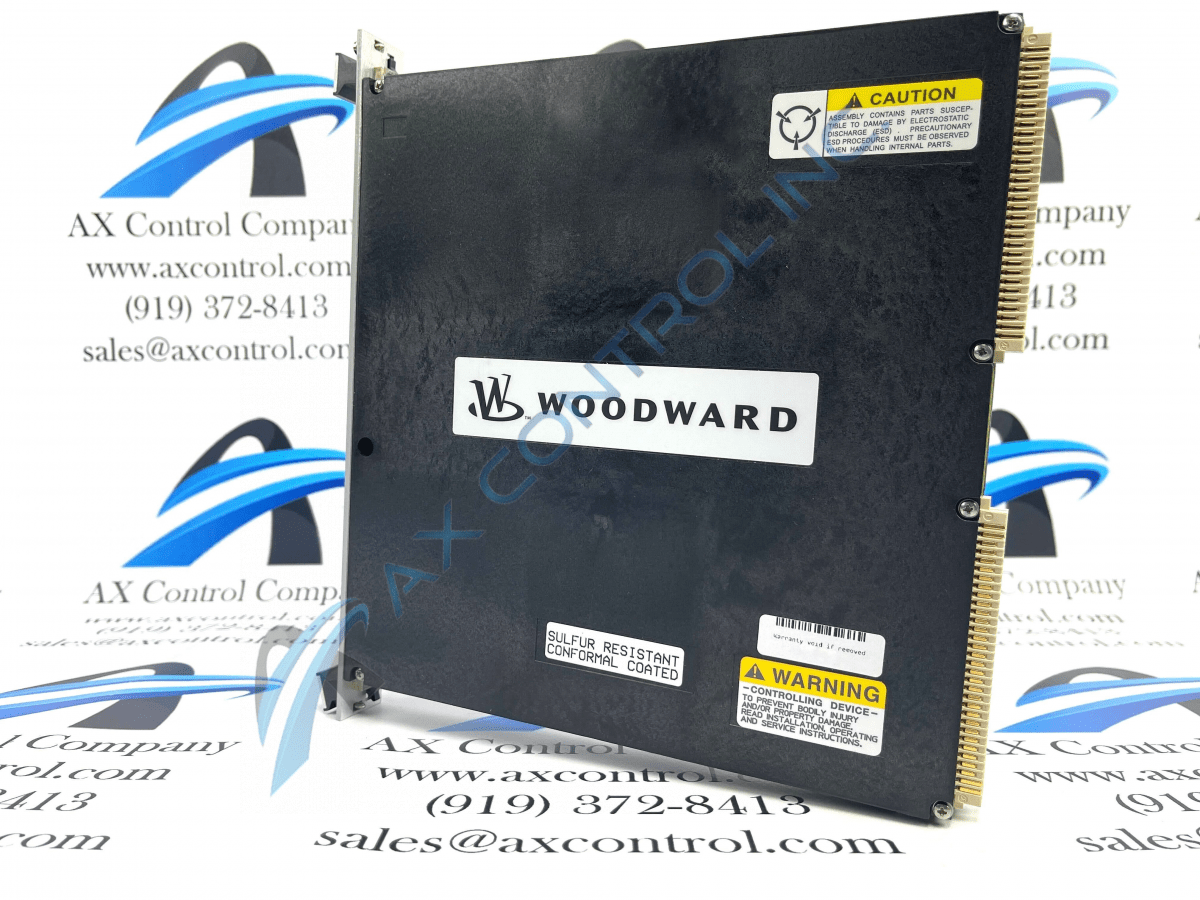

Woodward module 5466-5025 is a High-Density Analog I/O with twenty-four selectable inputs, either 0-5 volts or 4-20 mA. This unit can be used with RTD plug-ins. The 5466-5025 device will mainly be used in simplex systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-5025 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-5025
  • SKU: 54665025WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-5025

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Woodward module 5466-5025 is a High-Density Analog I/O with twenty-four selectable inputs, either 0-5 volts or 4-20 mA. This unit can be used with RTD plug-ins. The 5466-5025 device will mainly be used in simplex systems.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-5025 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-5025
  • SKU: 54665025WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-5025 Technical Specifications

Coder Version 5.08 or Later
Features Selectable Inputs, Isolated I/O
Input Voltage 0-5 V or 4-20 mA
Model High-Density Analog I/O
Output Voltage 600 Ohms or 4-20 mA
Part Number 5466-5025
Standards ATEX, CE (EMC), CSA
Weight 22 kg (48 lbs) in Chassis

Product Description

MicroNet Digital Controller 5466-5025 is a High-Density Analog I/O Isolated Module. This module has twenty-four selectable inputs and eight outputs. The inputs on this module will range from zero to five volts or four to twenty milliamperes. The outputs are the same as the inputs but are also 600 Ohms. There are three different configuration types for a 24/8 Analog Smart Plus module such as this one. This module has an onboard processor that allows the input-output channels to be automatically calibrated.

Insertion of this module will be in the card guide of the chosen chassis and plugs into the motherboard. The 5466-5025 has a specific coder version that it works with, typically this coder version will be 5.08 or a version later. The inputs and outputs of this device are accessible through the attached FTM. There are two 24/8 Analog FTMs along with two high-density analog/discrete cables. If the 5466-5025 module is using a 4-20 mA input signal a required 200 Ohm resistor is used and is located on the 24/8 Analog modules.

Analog outputs are also important in regard to this module the monitors for the output source will return currents if faults are detected. If while operating a fault is detected on the 5466-5025 the GAP application will annunciate the fault as well as disable the channel and discontinue data within system calculations.

Versions of this module are difficult to find but AX Control can help you acquire this module for you. For all information regarding shipping times and pricing information reach out to our sales team Monday through Friday 8 a.m. to 5 p.m.
