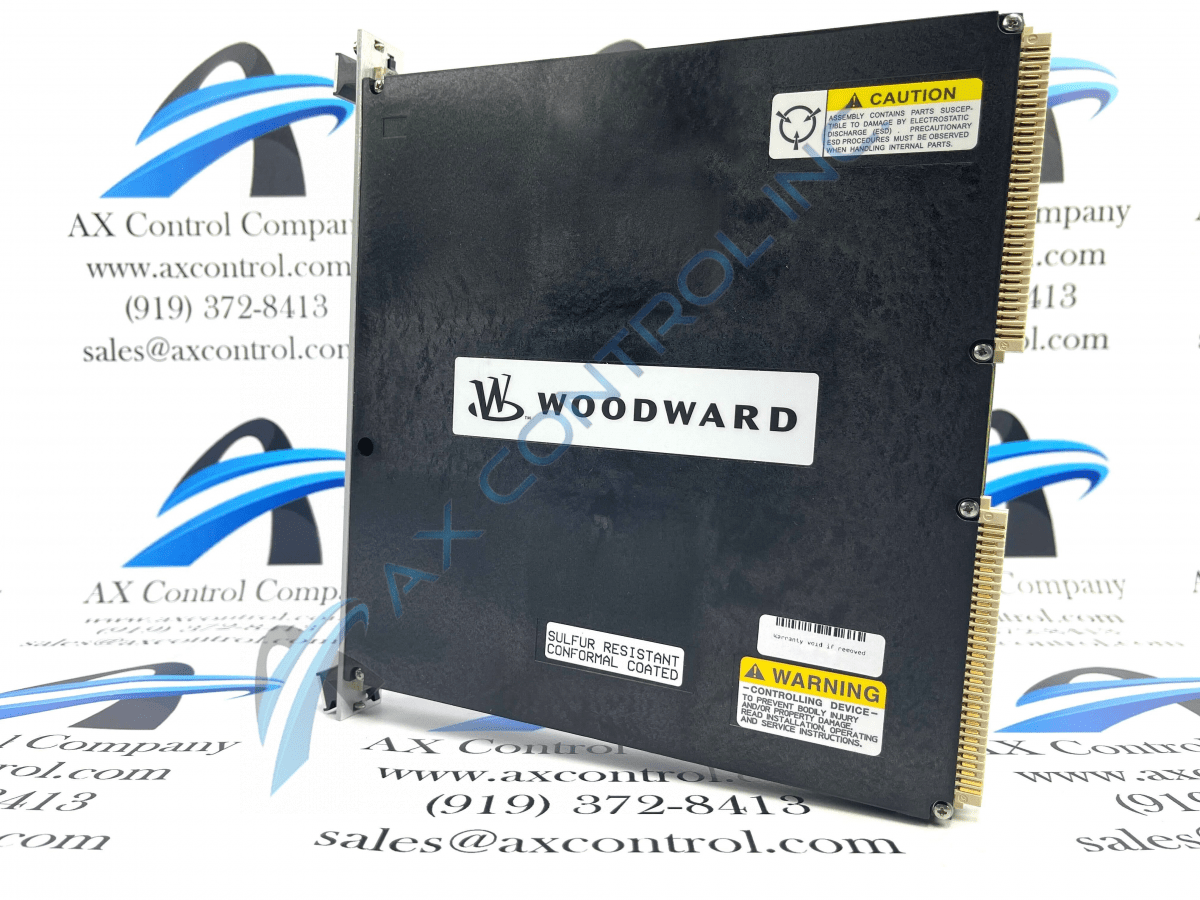

Module 5466-5000 is a MicroNet Four Channel Speed Sensor, that is configured as an MPU input. This module is backward compatible and is used with unit 5464-658. When the 5466-5000 module is used in a simplex system it is connected through a low-density analog cable to an analog input FTM.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 5466-5000 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-5000
  • SKU: WO-57412
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-5000 Technical Specifications

Part Number 5466-5000
Manufacturer Woodward
Series MicroNet Digital Controller Series
Acceleration Limit 1-10,000 percent/second
Backwards Compatible Yes with Item 5464-658
Input Type 50 Hz to 25 KHz
Input Voltage 500 VRMS to Earth Ground
Manual 26166V1, 26166V2, and 26166V3
Operating Temperature -15 to 65°C
Speed Filter 5-10,000 ms

About the 5466-5000

  • Module Number: 5466-5000.
  • Series: Part of the MicroNet Digital Controller Series.
  • Type: MPU (Magnetic Pick-Up) input speed sensor (distinguished from Eddy type).
  • Typical Use: Used with MicroNet Plus modules and an AppManager service tool.

Calibration & Replacement
  • Potentiometers: No potentiometers on the module.
  • Calibration: Requires no calibration.
  • Replacement: No adjustments needed during replacement, provided the same unit number is used in the chassis.

Technical Specifications
  • Isolation Voltage: 500 VRMS to the control common and earth ground.
  • Galvanic Isolation: Absolutely no galvanic isolations between the four channels on the sensor.
  • Coder Specification: Coder version 4.06 or any later version.
  • Compatibility: Backward compatible; however, when used as backward compatible, it must be used with the 5464-658 unit.

System Integration
  • System Types: Can be used in redundant or simplex systems.
  • Simplex Configuration: When used in a simplex system, it connects through a singular low-density analog cable to a singular analog input fault transition module (FTM).
  • MPU Input Limit: Each speed input channel can only accept one MPU.
