Woodward model 5466-1051 is a MicroNet TMR 48/24 HDDIO Smart-Plus Module. The inputs on this module are optically isolated and accessible through the 48/24 FTM. Unit 5466-1051 has five milliseconds of update time for both the discrete inputs and outputs.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1051 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1051
  • SKU: 54661051WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1051

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
Woodward model 5466-1051 is a MicroNet TMR 48/24 HDDIO Smart-Plus Module. The inputs on this module are optically isolated and accessible through the 48/24 FTM. Unit 5466-1051 has five milliseconds of update time for both the discrete inputs and outputs.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1051 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1051
  • SKU: 54661051WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1051 Technical Specifications

Contact Supply 400 mA

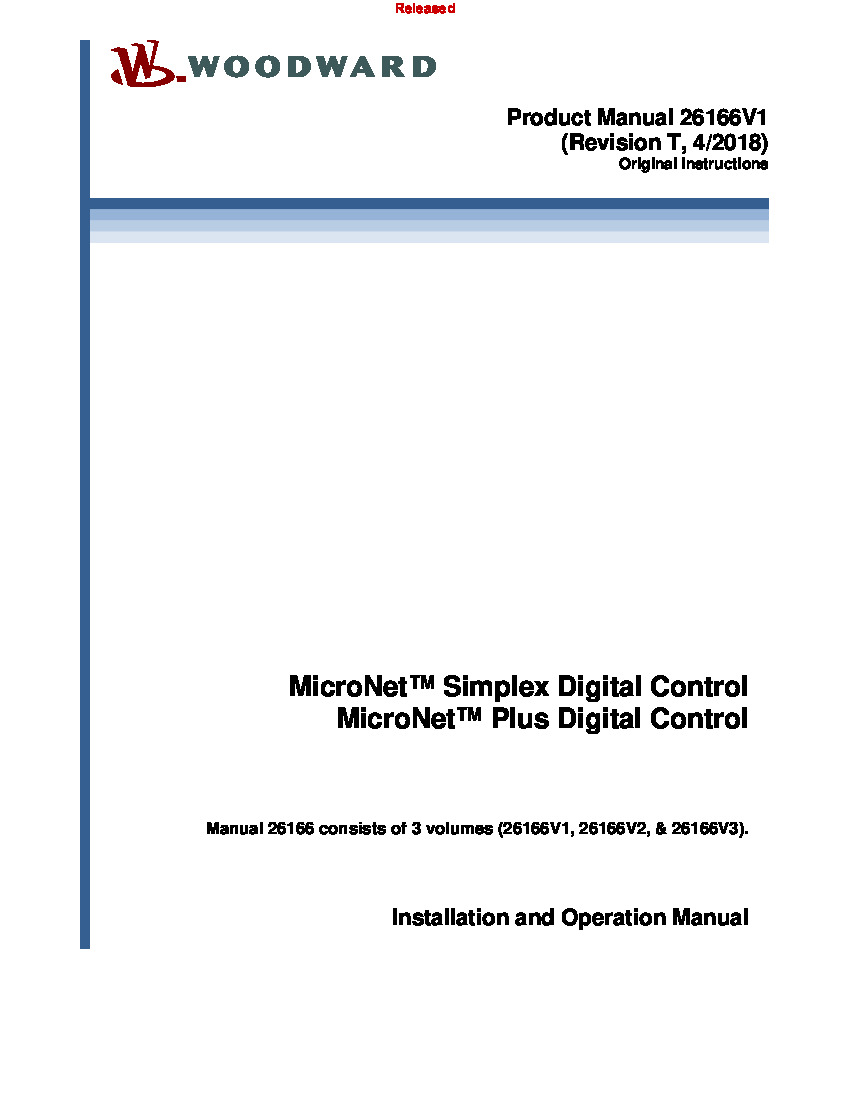

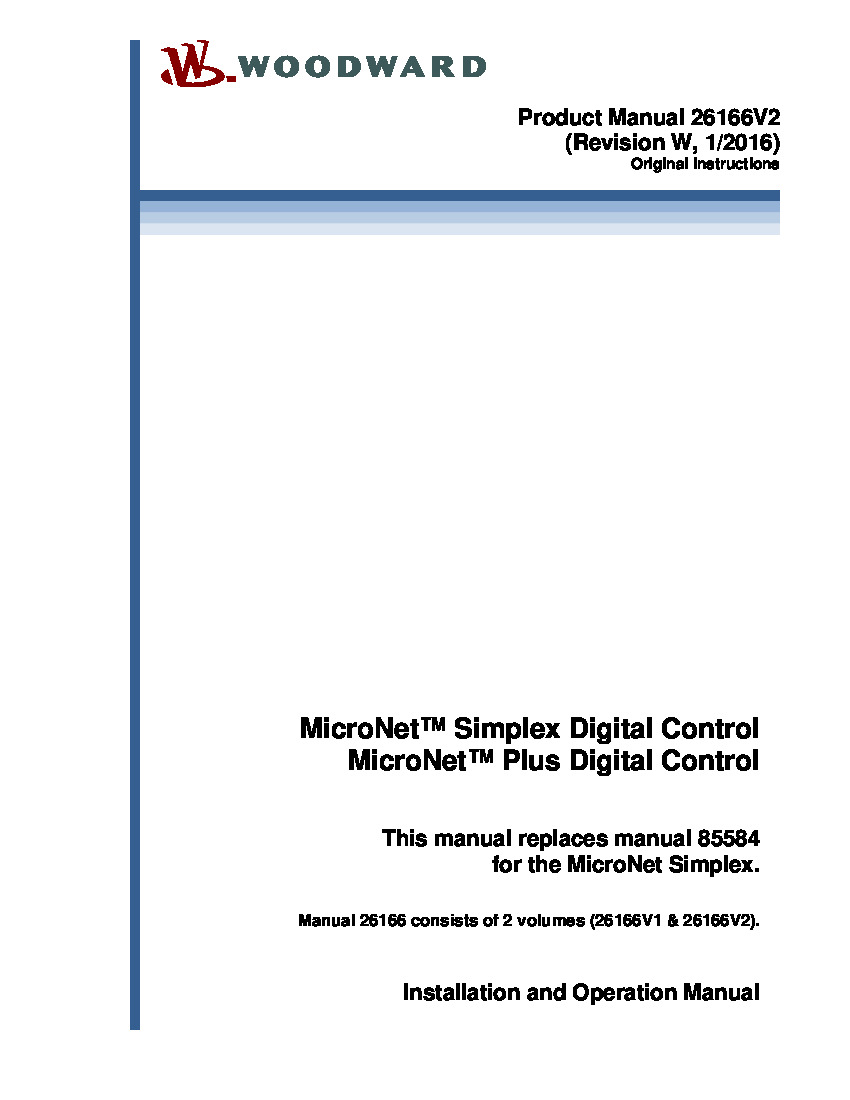

Manual 26167V1 and 26166V2
Model Triple Modular Redundant (TMR)
Operating Temperature 0 to 55ºC
Power Consumption 24 VDC
Product Type TMR 48/24 HDDIO Smart-Plus
Sound Level Less than 70 dBA
Storage Temperature -40 to +221°F
Weight 22 kg (48 lbs) in Chassis

Product Description

The MicroNet Digital Controller model 5466-1051 is a Triple Modular Redundant (TMR) 48/24 HDDIO Smart-Plus Module produced by Woodward Incorporated out of Fort Collins, Colorado. TMR HDDIO models require no calibration as there are no potentiometers on the module. One of the best features of the 48/24 HDDIO modules is that when it needs to be replaced, they can be replaced by modules of the same number and do not require any adjustments.

The 5466-1051 model has discrete inputs which are optically isolated and are easily accessible through either the 48/12 or 24/12 Discrete FTMs, this depends on the configuration of the unit. The outputs on the controller are easily accessed through the two sixteen-channel relay modules or the 24/12 Discrete FTM determined by the configuration the 5466-1051 module is in. To install the modules it will slide into the card guide on the chassis that the control is being connected to and will plug into the motherboard.

Unfortunately due to lack of production and being discontinued by Woodward the 5466-1051 is not readily available on the market but here at AX Control our sales team can help acquire this model for you. For any questions regarding the pricing and shipping times on this model please reach out to us by email at sales@axcontrol.com or by phone at (919) 372-8413 Monday through Friday from 8 a.m. to 5 p.m.

Reviews For 5466-1051
Internal Review

The 5466-1051 model is a triple modular redundant model which indicates that the model is more enhanced than the other HDDIO Smart-Plus module. For more information please refer to the 26167v1 manual attached above. - AX Control Tech Team
