5466-1050

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
Woodward Discrete Input/Output Simplex Module 5466-1050 can be used in redundant or single power supplies. This unit also has two different configurations, those being 48/24 Discrete FTM's and 24/12 Discrete FTM's.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1050 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1050
  • SKU: 54661050WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1050

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
Woodward Discrete Input/Output Simplex Module 5466-1050 can be used in redundant or single power supplies. This unit also has two different configurations, those being 48/24 Discrete FTM's and 24/12 Discrete FTM's.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1050 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1050
  • SKU: 54661050WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1050 Technical Specifications

Air Quality Pollution Degree 2
Chassis Full-Size or Narrow
Input Voltage < 8 Vdc at 1.5 mA = “OFF”

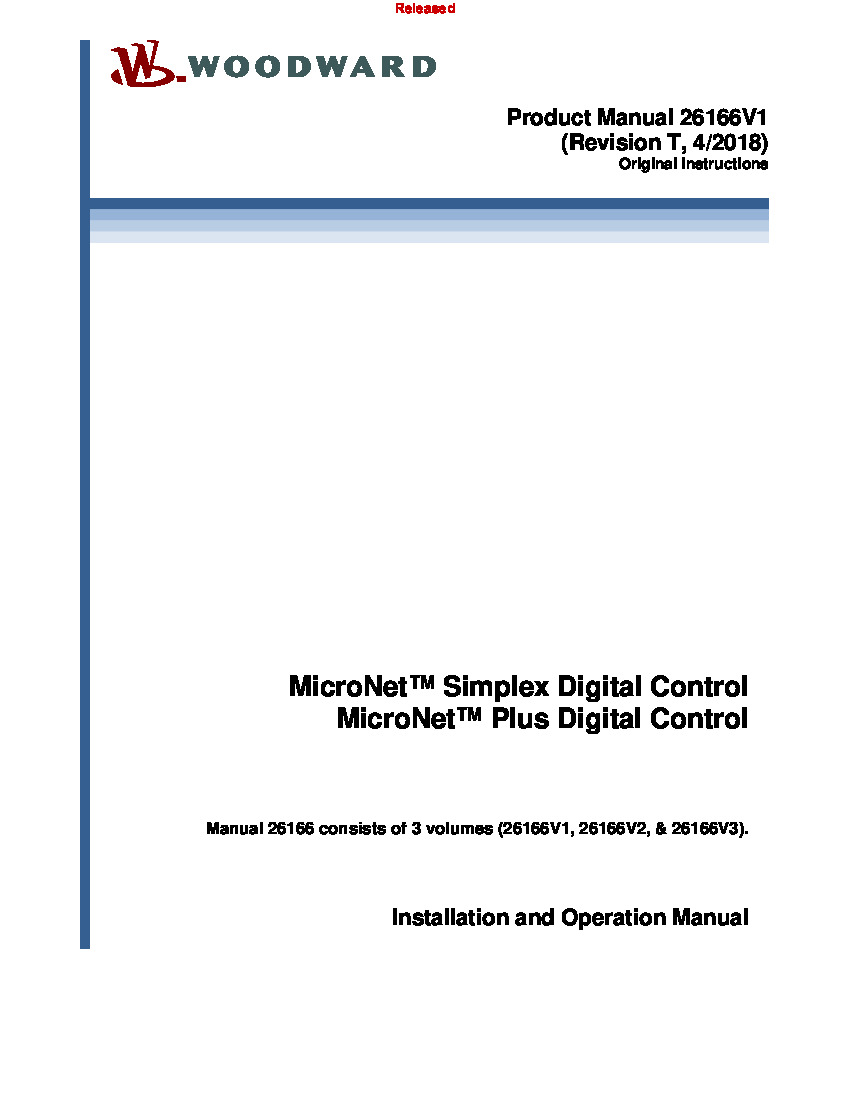

Manual 26166v2 and 26166v3
Manufacturer Woodward Inc, Fort Collins CO
Part Number 5466-1050
Product Type MicroNet Simplex 48/24 HDDIO Smart-Plus
Series MicroNet Digital Controllers
Storage Temperature -40 to +221°F

Product Description

Woodward MicroNet Digital Controller 5466-1050 is a MicroNet Simplex 48/24 HDDIO Smart-Plus unit. This unit has circuitry that can be used for twenty-four discrete outputs and forty-eight discrete inputs. This model requires no calibration and has no potentiometers on the faceplate. If the unit needs to be replaced it can just be replaced with the same part number and does not require any adjustment. To install the unit the module will slide into the card guide in the chassis and proceed to plug into the motherboard. This module has the ability to be configured in two different ways. One of them is to connect one 24 VDC FTM through two High-Density Analog/Discrete cables.

The 5466-1050 model has the ability to have the circuit wetting voltages be sourced by two different power sources which are an external VDC source of 18-32 or an external VDC source of 100-150. Please note that no matter what each 48/24 DIO module can only accommodate one input voltage range depending on the standards the range will be 125 VDC for UL only or 24 VDC for LVD and UL. All of the contact inputs on the module accept dry contacts.

Model 5466-1050 can be customized to match the customer's requirements, and the I/O can be configured in simplex, duplex, or triplex, this specific model will be in a simplex I/O model. Due to this, the model can be replaced while hot without removing power from the control. There is also the ability to repair the 5466-1050 unit while the controller is online.

Reviews For 5466-1050
Internal Review

The 5466-1050 unit is a simplex 48/24 HDDIO Smart-Plus unit. There are a few pages of information on this unit in the 26166v3 manual. For more information, please refer to that manual. - AX Control Technician

Repair Services For 5466-1050

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 5466-1050. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
