5466-1002

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product

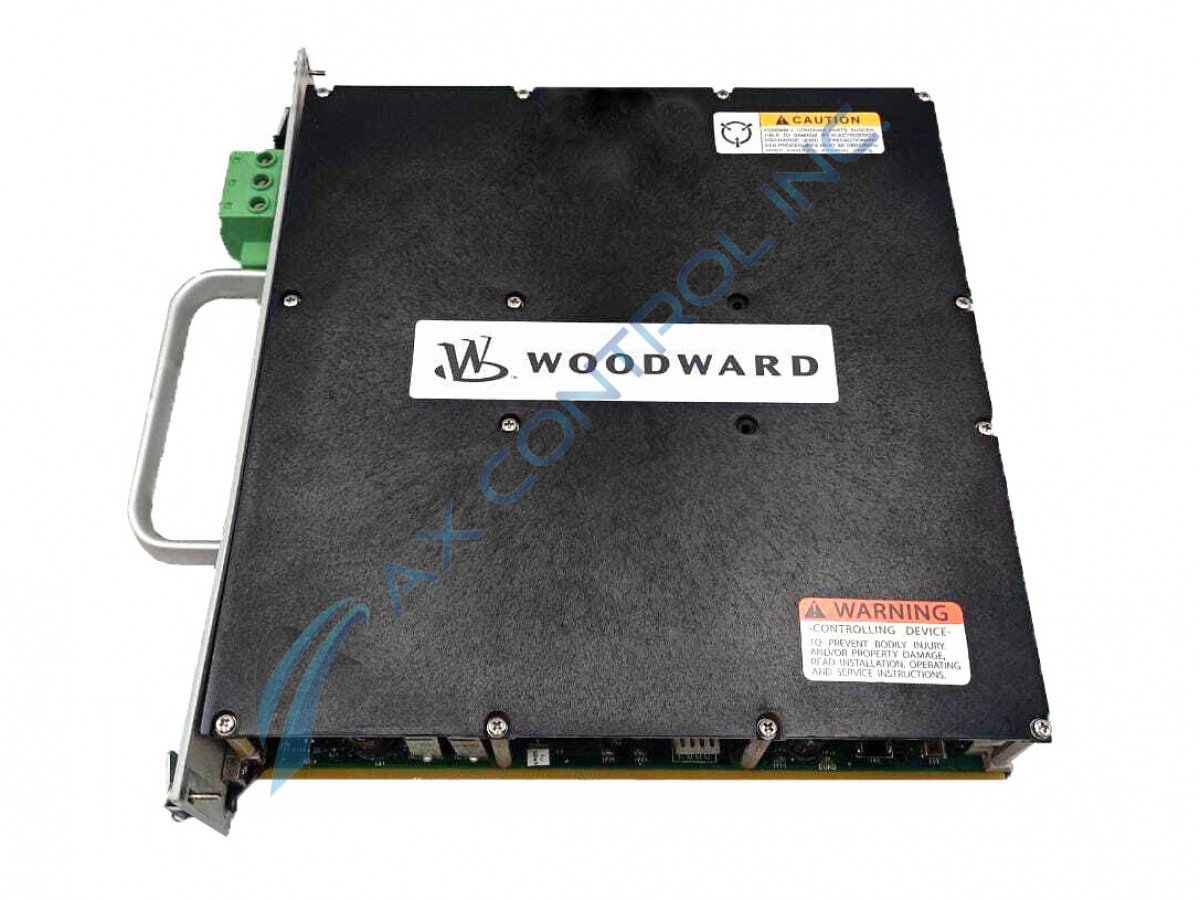

Woodward MicroNet Digital Controller 5466-1002 is a MicroNet-Plus model. The unit is also a power supply module that operates at an input of 220 VAC in two slots. The 5466-1002 module can be used with redundant or simplex CPUs.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1002 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1002
  • SKU: 54661002WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1002

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward MicroNet Digital Controller 5466-1002 is a MicroNet-Plus model. The unit is also a power supply module that operates at an input of 220 VAC in two slots. The 5466-1002 module can be used with redundant or simplex CPUs.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1002 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1002
  • SKU: 54661002WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1002 Technical Specifications

Chassis Metal, Full-Size or Narrow
Enclosure Type Metal
Humidity 95% RH non-condensing
Manual 26728 and 26166v2
Model Power Supply
Operating Temperature 32 to 131 °F
Part Number 5466-1002
Product Type MicroNet-Plus
Standards CSA, ATEX, CE (LVD and EMC), ABS, and DNV
Weight 48 lbs. (22 kg) when in Chassis

Product Description

The 5466-1002 model is a MicroNet-Plus Power Supply module produced by Woodward Inc out of Fort Collins Colorado as part of the MicroNet Digital Controller series. This specific model differs from the previous two power supply models by the power input it operates on. This model operates on two hundred and twenty volts of alternating current which is far more than the two previous modules. This module can mount in two different chassis, a full-size chassis that has fourteen VME slots, or a narrow chassis that has eight VME slots, in whichever chassis you choose this module will mount in two of them.

The reason for the design of the 5466-1002 module is to be used with the meticulous requirements needed for controlling prime movers. The prime movers that MicroNet-Plus modules are used with:

  • Compressor Control

  • Gas Turbine Control

  • Diesel and Gas Engine Control

  • Hydro Turbine Control

  • Steam Turbine Control

This unit has the ability to be used with simplex or redundant CPUs. When the device is being operated this controller is used with a graphical application programmer or GAP software. The programming provides methodical means to program logic for prime mover control.

There are a number of different standards that the 5466-1002 module operates on, these standards are as follows; CSA, ATEX, CE (EMC and LVD) ABS, and DNV. These standards can be found in the MicroNet Simplex and MicroNet Plus 26166V2 Manual.

If you are interested in purchasing this model please contact us at (919) 372-8413 or sales@axcontrol.com for a pricing quote as well as shipping time estimations.

Reviews For 5466-1002
Internal Review

The 5466-1002 unit operates on a power input of 220 VAC which is a greater input compared to the previous power supply models. Please ensure that when you are installing this device the power supply is disconnected prior to installation. - AX Control Tech Team

Repair Services For 5466-1002

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 5466-1002. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
