5466-1001

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product

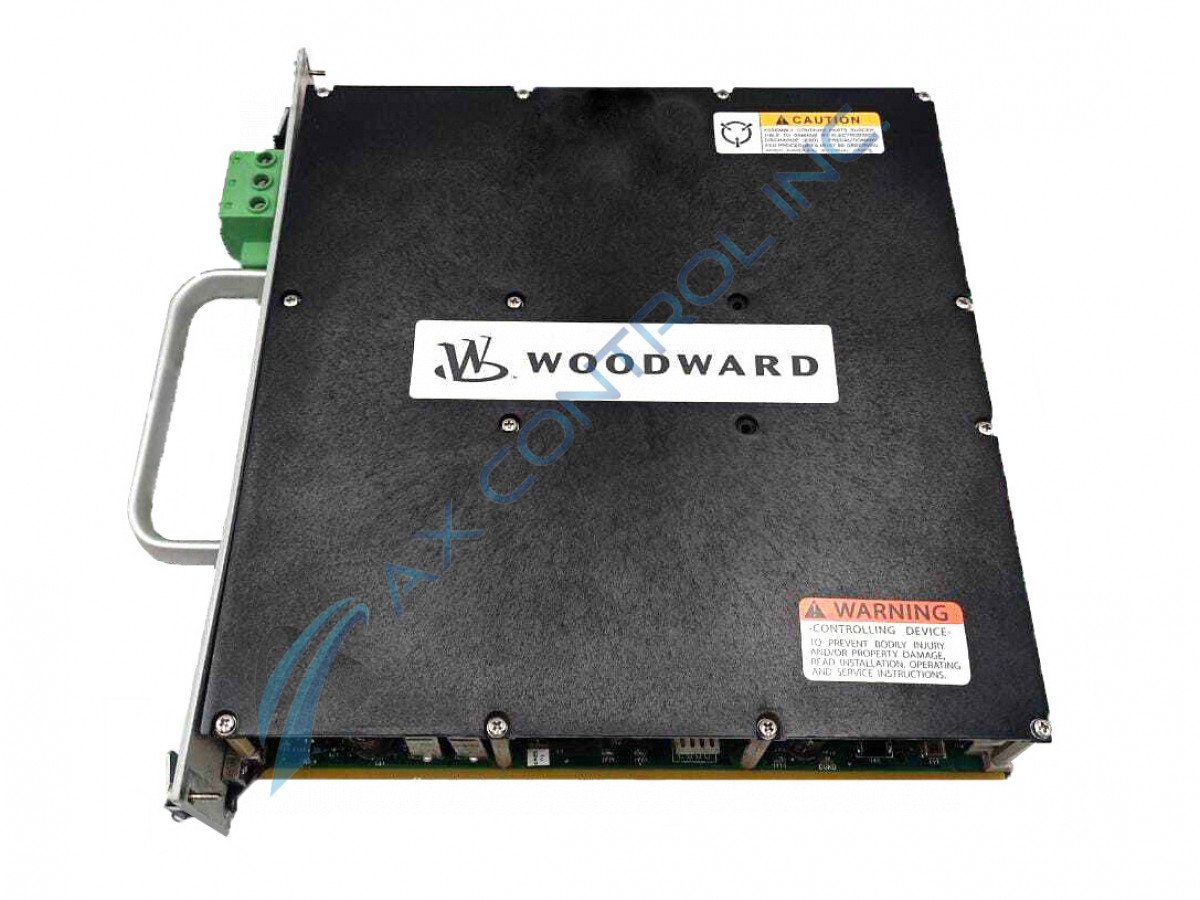

Woodward MicroNet Digital Controller Power Supply Module 5466-1001 has a power input of 110 VAC/125 VDC and is also a MicroNet-Plus unit. This unit has LVD, EMC, and ATEX certifications. Information on the 5466-1001 can be found in the 26166V2 manual.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1001 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1001
  • SKU: 54661001WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1001

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.33 (3)
  • Click a star to rate this product
Woodward MicroNet Digital Controller Power Supply Module 5466-1001 has a power input of 110 VAC/125 VDC and is also a MicroNet-Plus unit. This unit has LVD, EMC, and ATEX certifications. Information on the 5466-1001 can be found in the 26166V2 manual.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 5466-1001 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 5466-1001
  • SKU: 54661001WO
  • Manufacturer: Woodward
  • Series: MicroNet Digital Control

5466-1001 Technical Specifications

Input Voltage 110 VAC/125 VDC
Model MicroNet-Plus Power Supply
Part Number 5466-1001
Series MicroNet Digital Controllers
Sound Level < 70 dBA
Standards CSA, ATEX, LVD, EMC, ABS, and DNV
Storage Temperature -40 to +221°F
Weight 22 kg in Chassis

Product Description

Woodward model 5466-1001 is a power supply module part of the MicroNet Digital Controller series. There are two types of controllers, MicroNet Simplex and MicroNet-Plus, this specific unit is a MicroNet-Plus controller. When the controller has been connected to the chassis it will operate on a two-slot power supply at one-hundred-ten volts of actuating current or one-hundred twenty-five volts of direct current. This unit is also a safety integrity level (SIL) approved MicroNet Plus unit.

As a power supply module, the 5466-1001 must have the power supply disconnected when being installed. When a new power supply unit is being installed the circuit board edges must be aligned in the card guides, when the motherboard and slot units make contact it means that the board has been connected properly. There are four LEDs on the front faceplate of this unit, an overtemperature LED, an input, and a power supply fault, as well as an OK LED. The LEDs will light up solid or flash when a fault has been detected.

The 5466-1001 model is not as widely available as its previous version, but if you need this model repaired our team of specialists is available to provide this service to you. For quotes regarding repair pricing please reach out to us Monday through Friday, 8 a.m. to 5 p.m. at (919) 372-8413 or by email at sales@axcontrol.com

Reviews For 5466-1001
Internal Review

The 5466-1001 model is another SIL-approved unit but operates on a different power input than it's predecessor, if you need a model to replace this one please be sure that you are getting the same unit, another unit being used can cause potential errors. - AX Control Technician

Repair Services For 5466-1001

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 5466-1001. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
