8200-177

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
Using the DIP software, the 8200-177 EM Digital Driver uses a sophisticated algorithm in order to cover a wide range of actuator load inertia and friction levels. This model is used in conjunction with other Woodward parts such as RS-485 connections and MicroNet control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-177 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-177
  • SKU: 8200177WO
  • Manufacturer: Woodward
  • Series: EM Digital Driver

8200-177

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
Using the DIP software, the 8200-177 EM Digital Driver uses a sophisticated algorithm in order to cover a wide range of actuator load inertia and friction levels. This model is used in conjunction with other Woodward parts such as RS-485 connections and MicroNet control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-177 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-177
  • SKU: 8200177WO
  • Manufacturer: Woodward
  • Series: EM Digital Driver

8200-177 Technical Specifications

External Dimensions 19 W x 5 1/2 D x 14 H (in)

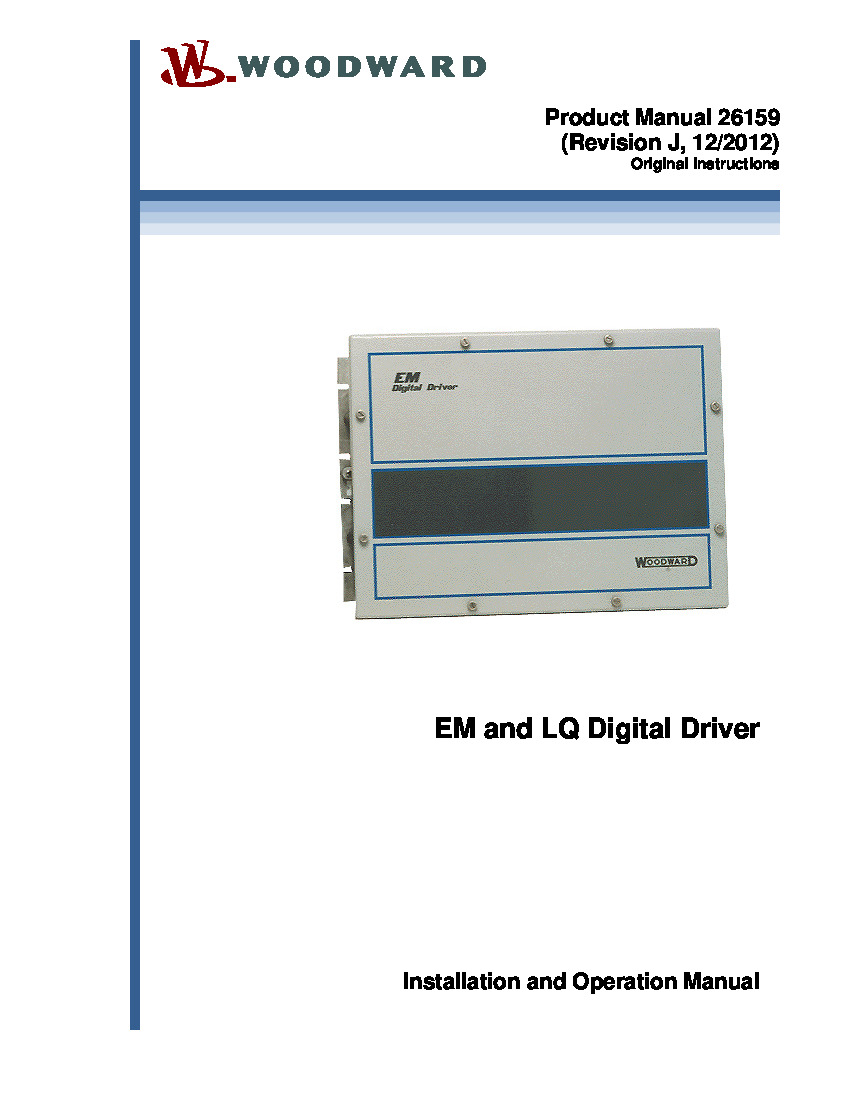

Manual 26159
Manufacturer Woodward - Fort Collins, Colorado
Operating Temperature -20 to +68 °C
Power Consumption 3.3 A continuous
Software Version Driver Interface Program
Storage Temperature -40 to +85 °C
Weight 24.0 lbs (10.9 kg)

Product Description

Woodward model 8200-177 EM Digital Driver uses advanced, model-based control algorithms within the provided Driver Interface Program (DIP) as the unit's main configuration tool.

The DIP allows the 8200-177 to link to your personal computer and shows real-time information for Run, Calibration, Alarms, Shutdowns, Tuning, and Configuration. For example, the displayed LEDs on the Alarms page indicate the current status of the alarms. If any LEDs are Red, then this indicates a fault status. Normal operation is shown by green LED's. Manual 26159 goes into much greater detail and can be found on our site above in the "Manuals" tab. The Driver Interface Program will be on the disk that came with an original purchase from the manufacturer and can be found on Woodward's website at https://www.woodward.com/en/support/software%20assets/service%20tool/2019/04/18/22/58/9927-700-c

Not only is this unit customizable through software, but through hardware features such as the two gland plates on the bottom of the unit next to the manufacturer label. The gland plates cover two rectangular openings that are each approximately 2 x 5 inches. These plates allow you ability to drill and cut personalized holes for appropriate wire connections. Woodward recommends that the wire feed-throughs be watertight in order to keep an IP56 seal rating. If all equipment is installed correctly then it is possible to pressure wash the 8200-177 for ease of cleaning!

A clear understanding of the function of the EM Driver 8200-177 is important for troubleshooting. Please read the installation manual to become familiar with the hardware prior to troubleshooting. Model 8200-177 has been discontinued by Woodward, but is currently in stock through us. AX Control will sell, buy, and even repair this series of units. Purchases will also come with our industry-leading three-year warranty.

Reviews For 8200-177
Internal Review

Even if this unit is dropped, the incredibly dense chassis and integrated cooler will most likely not even crack. We still recommend professional installation however because most repair services for this unit are from voltage spikes and blown capacitors. - AX Control Inc. Technician

Repair Services For 8200-177

Type Lead Time Price Action
Repair Service 1-2 weeks $3465

Our highly skilled technicians can repair your 8200-177. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
