The EM Digital Controller Model 8200-176 uses advanced, model-based control algorithms to cover a wide range of actuator load inertia and friction loads. Woodward has provided the Driver Interface Program as a configuration tool.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-176 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-176
  • SKU: 8200176WO
  • Manufacturer: Woodward
  • Series: EM Digital Driver

8200-176

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The EM Digital Controller Model 8200-176 uses advanced, model-based control algorithms to cover a wide range of actuator load inertia and friction loads. Woodward has provided the Driver Interface Program as a configuration tool.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-176 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-176
  • SKU: 8200176WO
  • Manufacturer: Woodward
  • Series: EM Digital Driver

8200-176 Technical Specifications

Chassis Aluminum
Dimensions (in) 19 W x 5.5 D x 14 H
Nominal Input Voltage Range 18 - 32 Vdc
Operating Temperature -20 to +68 °C (-4 to +154 °F)
Power Consumption 3.3 A continuous
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Weight 24 lbs.

Product Description

The 8200-176 EM Digital Driver when used in conjunction with the (DIP) Driver Interface Program software, provides a sophisticated firewall algorithm in order to protect your system from a wide range of actuator load inertia and friction levels that cause mechanical failures. This model is used in conjunction with other Woodward parts such as Netcon and MicroNet control systems (sold separately on our site).

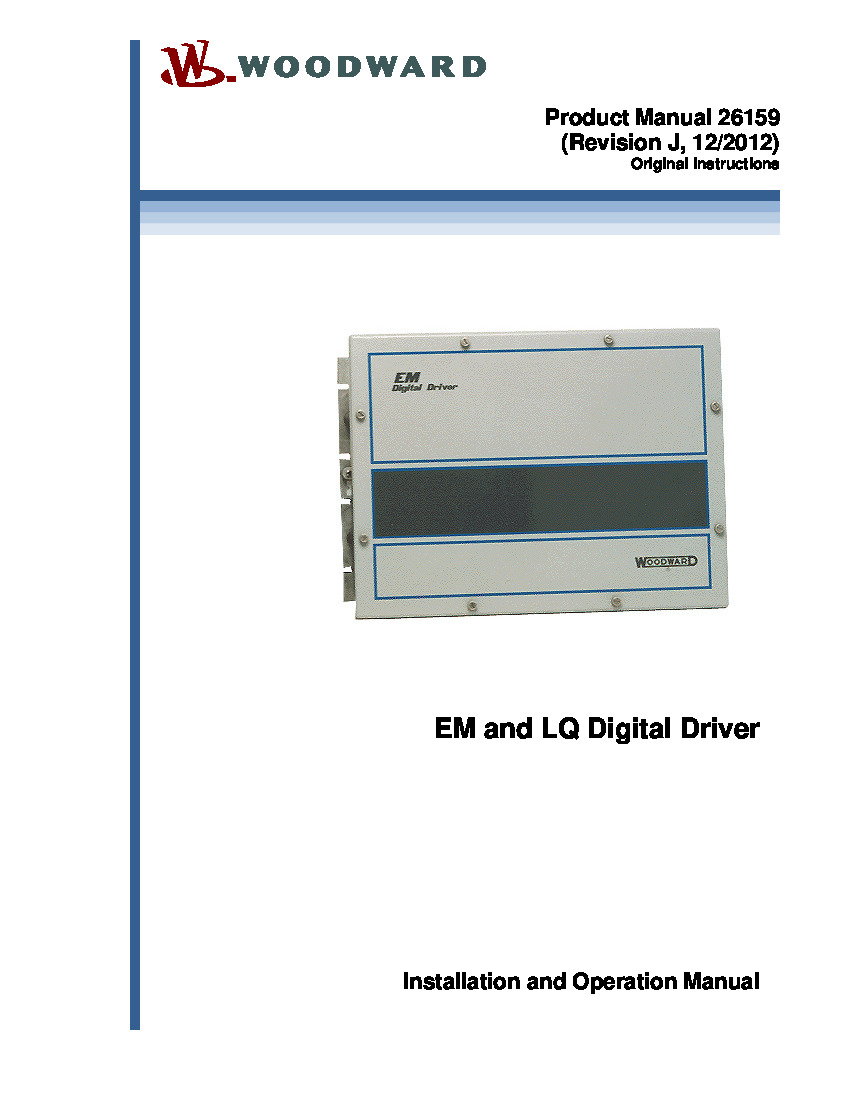

After installing your DIP through the provided disk or .EXE on Woodward's site, follow the system's download instructions to install the protocol server. Once installation is complete, you may be instructed to reboot your PC so that changes will take effect. Manual 26159 (found on our site) will provide great detail about the software and hardware capabilities of this 8200-176 Driver and its software.

The system resets must come from either the DIP itself or the RS-232 cable being disconnected before a Reset command from a NetCon or MicroNet will clear the Shutdown condition. As long as the source of the shutdown is active, no other source can Reset the driver. The RS-485 interface and DIP may each shut down the 8200-176 unit at any time. Please read the EM Digital Driver Installation and Operation Manual 26159 to become familiar with the hardware and software prior to operation or troubleshooting.

EM Driver 8200-176 has been discontinued and considered obsolete by Woodward. We at AX Control Inc. will sell and repair this series of units as well as provide a free industry-leading three-year warranty! Contact our sales team today through the information listed at the bottom of the page.

Reviews For 8200-176
Internal Review

The 8200-176 unit is an incredibly rugged machine. While a knowledgeable professional is still recommended in order to follow proper installation protocol, users will be hard-fought to ever break the dense chassis. Any faults we receive are due to overvoltage spikes. - AX Control Tech Team

Repair Services For 8200-176

Type Lead Time Price Action
Repair Service 1-2 weeks $3240

Our highly skilled technicians can repair your 8200-176. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
