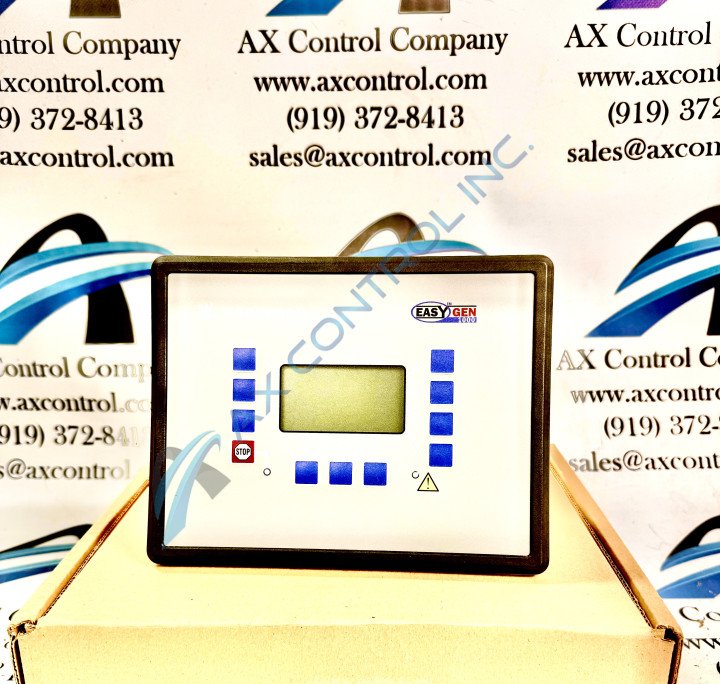

Woodward part 8440-3005 EasyGen 1000 series Genset Control. Delay level two on your control should be 1.00 s, current resistance of 0-20 mA or 4-20 mA.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8440-3005 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Image Coming Soon

3 year warranty





8440-3005

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward part 8440-3005 EasyGen 1000 series Genset Control. Delay level two on your control should be 1.00 s, current resistance of 0-20 mA or 4-20 mA.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8440-3005 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8440-3005 Technical Specifications

Accuracy Class 1
Dimensions 219×171×61 mm
Linear Measuring Range 1.25 x V
Rated Phase-Ground Voltage (100 Vac) 150 Vac
Rated Surge Voltage (100 Vac) 2.5 kV
Setting Range 50-650,000 Vac

Product Description

Control model 8440-3005 is from the EasyGen 1000 series which is manufactured by Woodward inc. This model is available from AX Control inc’s refurbished secondhand inventory or from our new surplus inventory. There are many different settings used within the analog input of your control and there are two different levels, level one and level two, when it comes to delay level one on your control it should be in the range of 3.00 s, delay level two of your control should be 1.00 s.

There are a number of ways to define analog input tables of your control, you are able to choose every point on the X-axis and Y-axis of the table. When doing so the values will have resistances, as well as 0-20 mA and 4-20 mA currents. If the x-value on your analog input is 30 and the y-value is -1000 the resistance should read 150 Ohm, the 0-20 mA current will read 6 mA and the current of 4-20 mA should read 8.8 mA.

When you are operating your control note that when the control enters critical mode and enters emergency power the emergency power operation of the control takes precedence over critical mode. The emergency power operation will continue if the critical mode ends before the mains recovery operation and the shutdown alarms will resume.

If you are interested in purchasing this control model you may contact AX Control by phone at (919) 372-8413 or by email at sales@axcontrol.com.

  • EasyGen-1800
Reviews For 8440-3005
Internal Review

There are two delay levels on your control and both are different, delay level one is 3.00 seconds while delay level two is 1.00 seconds. There are also two potential resistor currents that are 0-20 mA or 4-20 mA, please browse your manual prior to starting the control to make sure that you are using the correct resistor current. - AX Control Tech Team

Repair Services For 8440-3005

Type Lead Time Price Action
Repair Service 1-2 weeks $2356

Our highly skilled technicians can repair your 8440-3005. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

8440-3005 Manuals, White Papers, Data Sheets, and Troubleshooting
