The GEM52101 Dual Indicator Controller made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM52101 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM52101
SKU: RL-59448

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

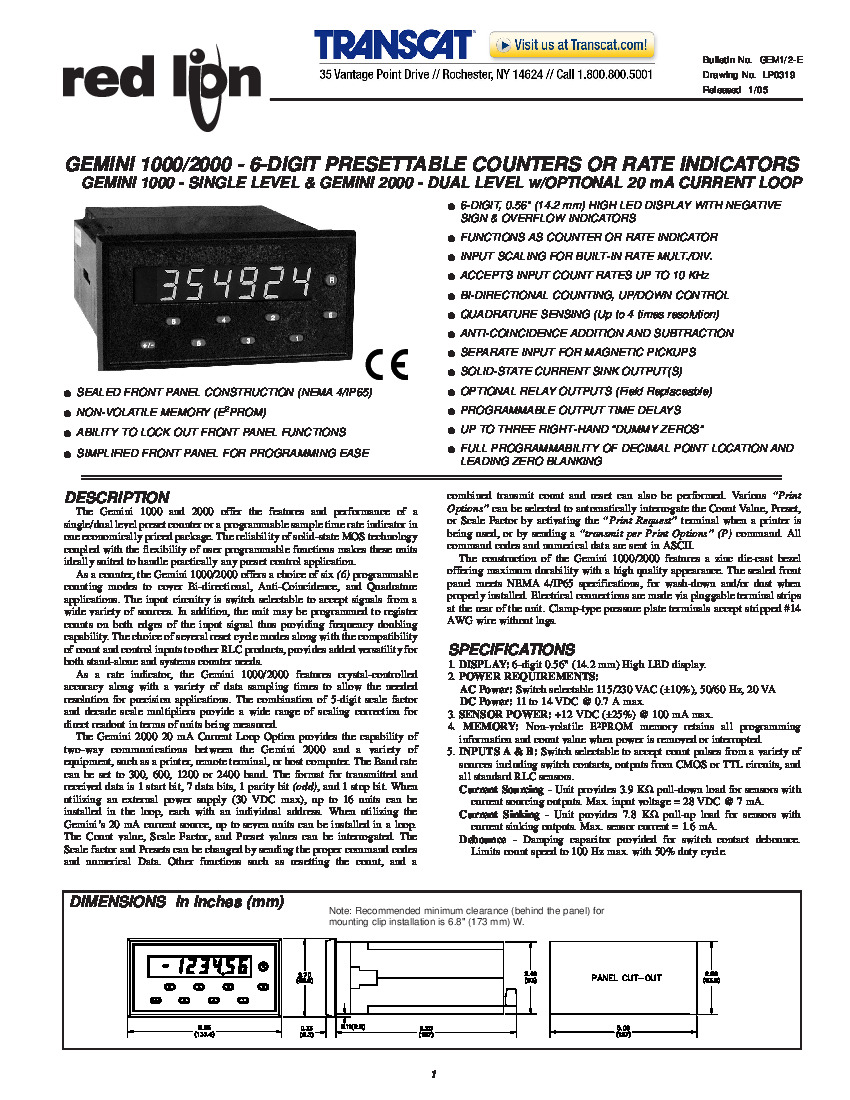

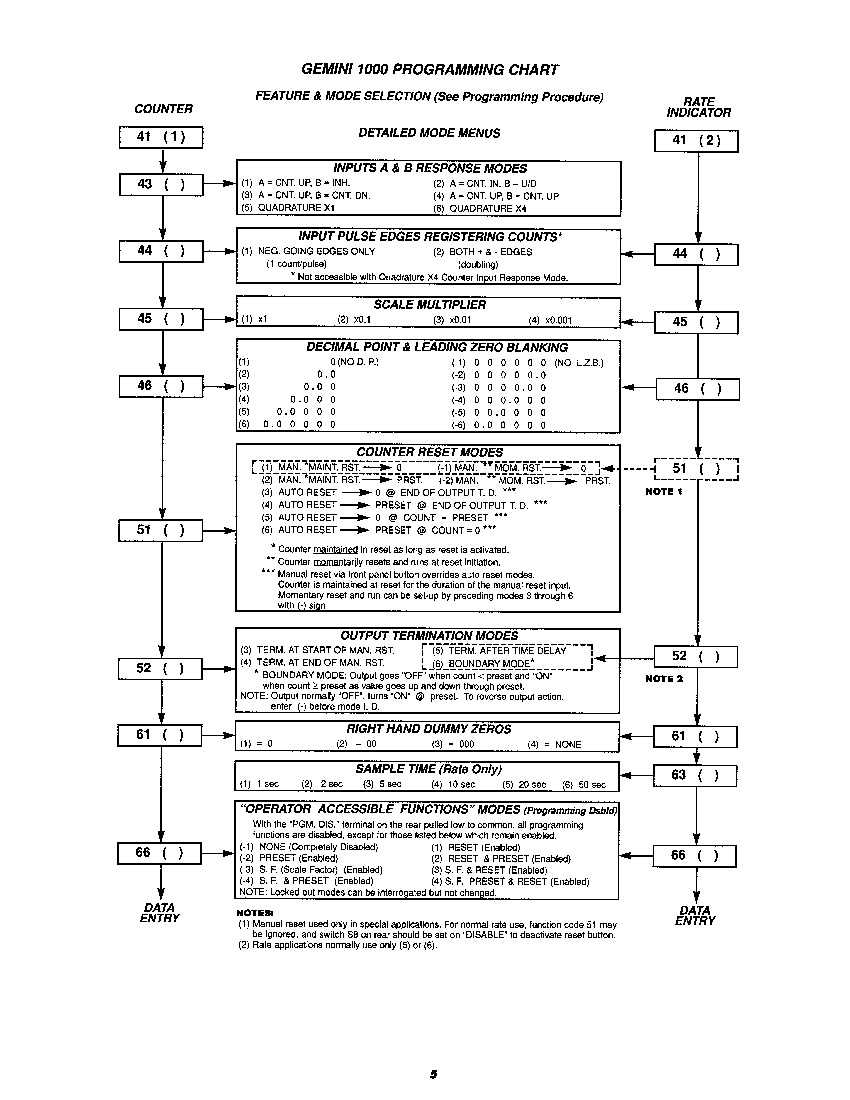

Manuals

GEM52101 Technical Specifications

Part Number	GEM52101
Functional Description	Dual Indicator Controller
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Output Delay	0.01 to 599.99 seconds
Sample Time Multiplier	1, 2, 5, 10, 20, or 50x
Relay Life	100,000 cycles
Scaling	5-digit input
Scale Factors Range	0.0000 to ±5.9999
Reset Action	Reset-to-Zero, Reset-to-Preset

About the GEM52101

The GEM52101 Dual Indicator Controller made for Red Lion's GEMINI 1000/2000 Series comes with a standard assortment of visible hardware components, such as its

NEMA 4-Rated Protective Interface
Numeric-Based Display Window
LED Backlighting
DIP Switches
Terminal Strips
Terminal Wiring Diagrams

The GEM52101 Dual Indicator Controller's terminal wiring diagrams directly correspond to its numerous terminal strips. This GEM52101 Dual Indicator Controller's front interface has both a NEMA 4 and IP65 rating.

GEM52101 Dual Indicator Controller Maximum Counting

The GEM52101 Dual Indicator Controller retains a series of maximum count rates pertaining to the unit's different modes. These include the Controller's:

9 KHz; 8 KHz (X2) Uni- or Bi-Directional Mode Count Rate
5 KHz; 4 KHz (X2) 2-Input Anti-Coincidence Mode Count Rate
5 KHz; 4 KHz (X2 or X4) Quadrature Mode Count Rate

Frequently Asked Questions about GEM52101

What specific safety requirements does this GEM52101 follow?

This GEM52101 Controller/Indicator adheres to the IEC 1010-1, EN 61010-1 safety requirements for laboratory use.

What controller inputs are included with the GEM52101?

This GEM52101 6-digit controller has Reset, Program Disable, and Print Request controller inputs.

Reviews For GEM52101

Internal Review

(5.0)

This GEM52101 controller's various relays should be well-mounted on its internal printed circuit board. This board in turn is protected from basic dust or corrosive chemical ingress by way of the unit's NEMA 4-rated front interface. Reset modes for this Red Lion Controller include Manual Reset, Automatic Reset at Preset, and Automatic Reset after Output Time Delay. - AX Control Lead Technician
