The GEM52100 Digital Dual Counter Module made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM52100 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM52100
SKU: RL-59467

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

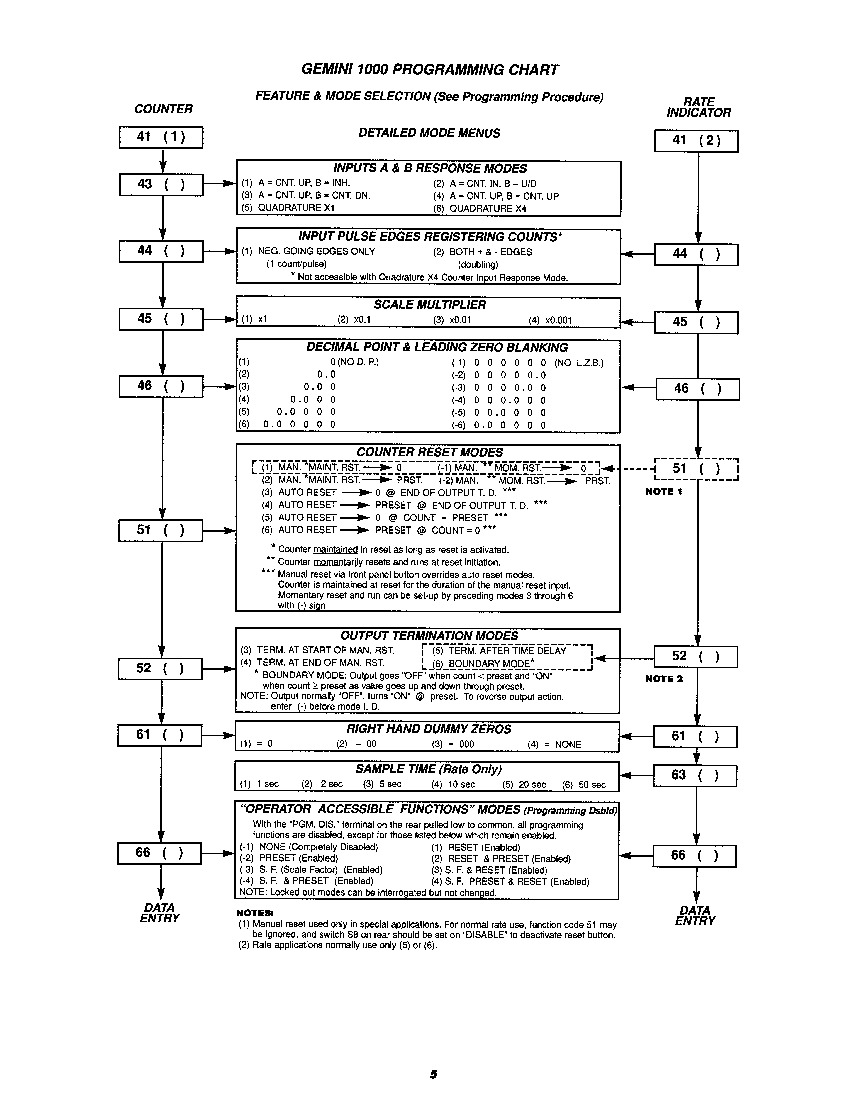

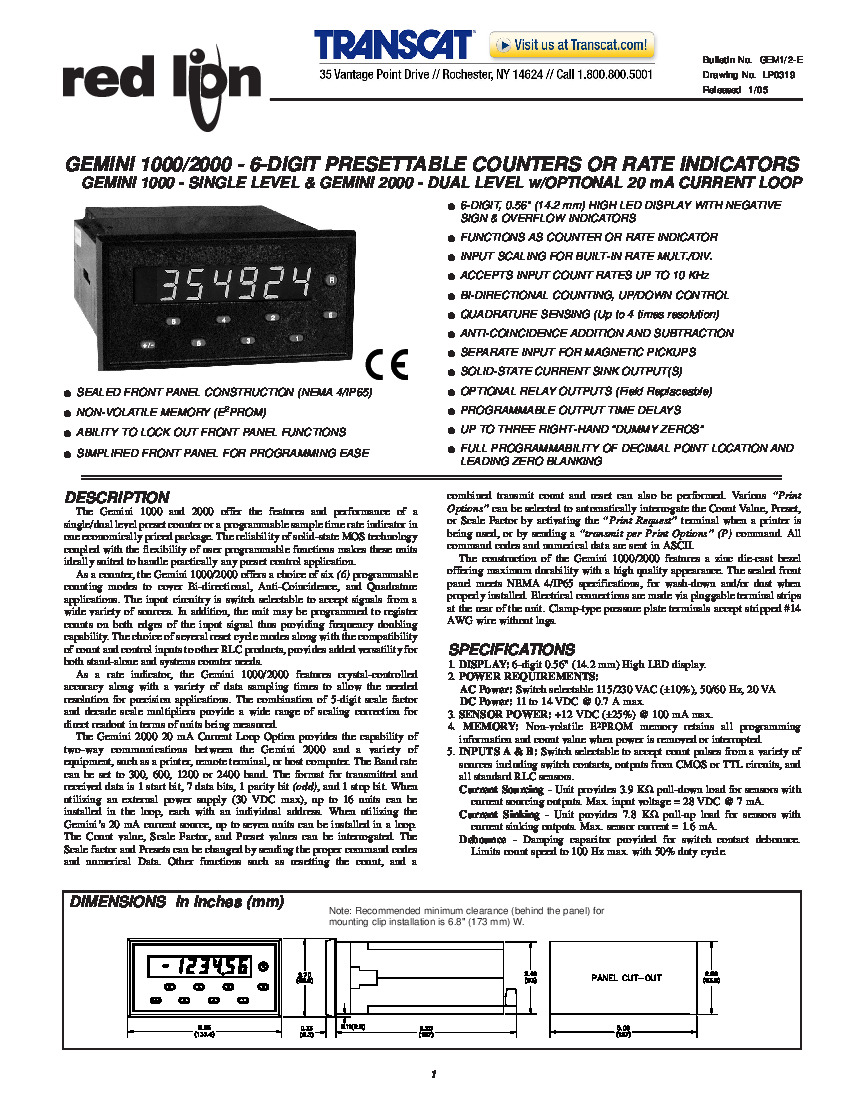

Manuals

GEM52100 Technical Specifications

Part Number	GEM52100
Functional Description	Digital Dual Counter Module
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Lo Bias	Input trigger levels VIL = 1.5 V max., VIH = 3.75 V
Hi Bias	Input trigger levels VIL = 5.5 V max., VIH = 7.5 V
Operating Temperature	0 to 50°C
Storage Temperature	-40 to 80°C
Altitude	Up to 2000 meters
Weight	2.1 lbs.
Preset Range	0 to ±999999

About the GEM52100

The GEM52100 Digital Dual Counter Module made for Red Lion's GEMINI 1000/2000 Series has a standard selection of hardware components that are immediately critical to its functionality. Some of these would include its:

LED-backlit display window
Numerous pushbuttons
NEMA 4-rated front interface
Terminal strips
Terminal wiring diagrams
DIP switches

The DIP switches available to the GEM52100 Digital Dual Counter Module should be accessed for initial output circuit setup alone.

GEM52100 Digital Dual Counter Module Count Rates

The GEM52100 Counter has a set of important maximum count rates:

9 KHz; 8 KHz (X2) for Uni- or Bi-Directional Modes
5 KHz; 4 KHz (X2) for 2-Input Anti-Coincidence Modes
5 KHz; 4 KHz (X2 or X4) for Quadrature Modes
10 KHz; 8 KHz (X2) for Rate Indicator Mode

Frequently Asked Questions about GEM52100

What safety requirements does the GEM52100 observe?

This GEM52100 counter adheres to the IEC 1010-1, EN 61010-1 requirements for laboratory use, control, and safety.

Is a bi-directional 20 mA current loop present in the GEM52100's assembly?

Yes. This counter features the 20mA current loop given its GEM2 base product status.

Reviews For GEM52100

Internal Review

(5.0)

The baud rate for this device's optional serial communications can be programmed within a range from 300 to 2400. Numerous different count rates and reset methods are also available to this highly-versatile GEM52100 counter, which is also functional as an indicator module. The GEM52100 has a both an installation category and a pollution degree of two. - AX Control Lead Technician
