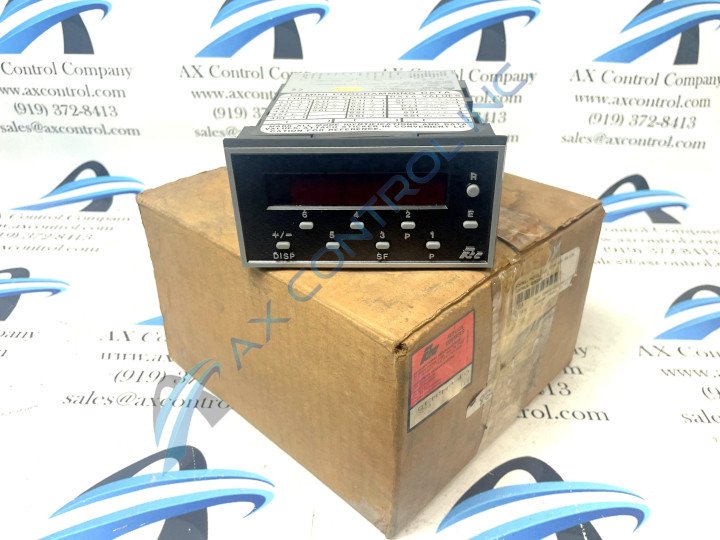

About the GEM52011
The GEM52011 Dual Level Rate Counter made for Red Lion's GEMINI 1000/2000 Series comes equipped with a handful of critical exterior hardware additions, such as its:
- NEMA 4-rated sealed front panel
- 9 push-buttons with on-button labels
- an LED-lit numeric display
- A factory-made sticker label with function codes and data values
It should be mentioned that this GEM52011 Dual Level Rate Counter's digital display features both a negative sign and overflow indicators, in addition to its ability to display up to three dummy zeros on the unused right side of the window.

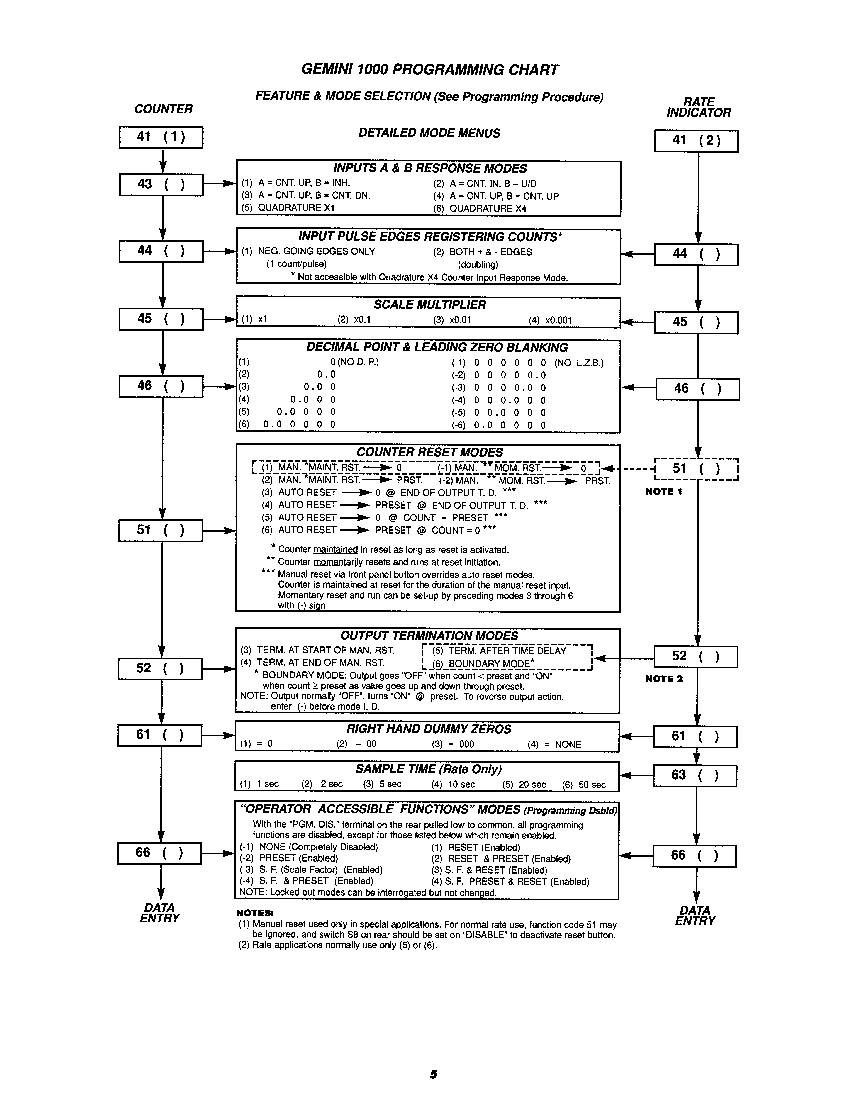

GEM52011 Output Termination Modes
The GEM52011 has the ability to incur several output termination modes in response to various functional faults. The include the GEM52011 dual counter's:
- Terminate at “other” Output Start (Gemini 2000 only) Mode
- Terminate at “other” Output End (Gemini 2000 only) Mode
- Terminate at Manual Reset Mode
- Terminate at Manual Reset End Mode
- Terminate after Time Delay Mode
- Boundary Mode
