GEM52000

Q: Does the GEM52000 Counter have durable relays?

Yes. This GEM52000 unit&#39;s relays are quite durable with life expectancies of up to 100,000 cycles at maximum rating.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The GEM52000 Counter Rate Meter made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM52000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM52000
SKU: RL-59465

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

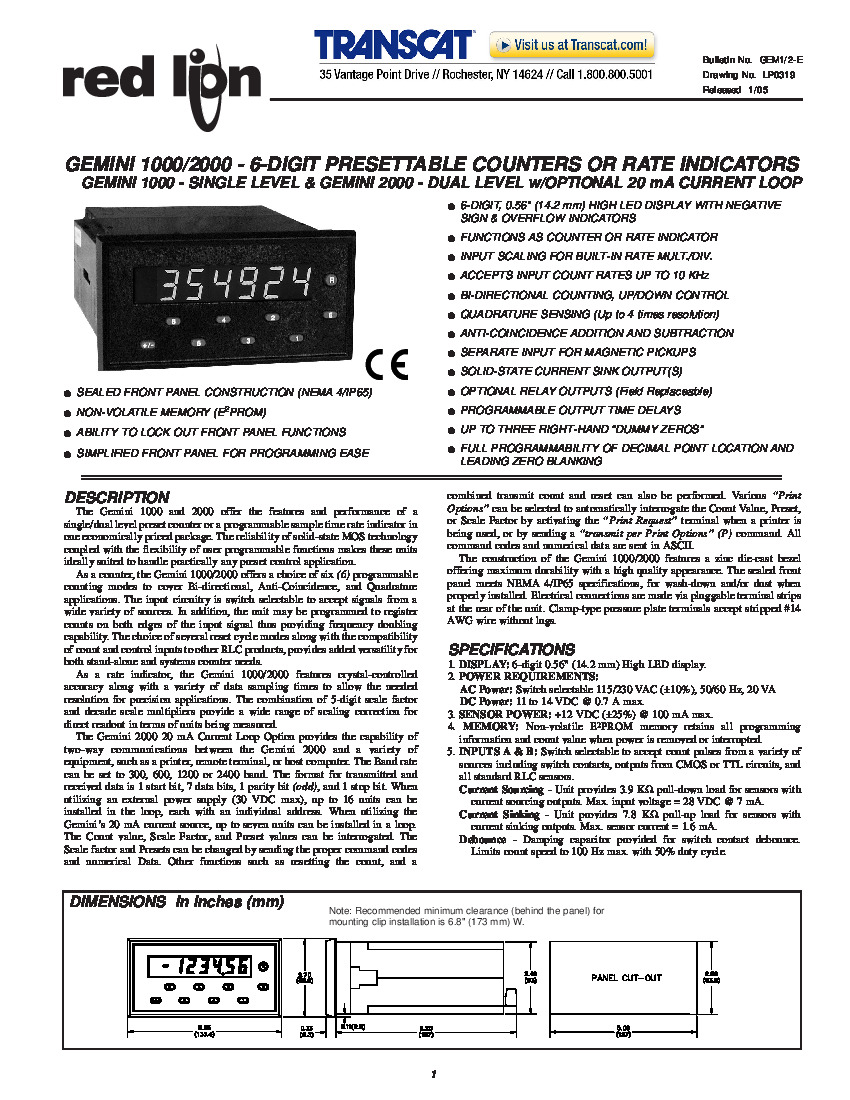

Manuals

GEM52000 Technical Specifications

Part Number	GEM52000
Functional Description	Counter Rate Meter
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
AC Power	115/230 VAC (±10%), 50/60 Hz, 20 VA
DC Power	11 to 14 VDC @ 0.7 A max
Sensor Power	+12 VDC (±25%) @ 100 mA max
Memory	Non-volatile E2PROM
Right-Hand Dummy Zeros	Up to 3
Safety Requirements	IEC 1010-1, EN 61010-1

About the GEM52000

The GEM52000 Counter Rate Meter made for Red Lion's GEMINI 1000/2000 Series comes with several visible standardized hardware qualities, including its:

9 total diagnostic pushbuttons
LED-backlit display window
DIP switch selection
Terminal strips
Terminal wiring diagrams
NEMA 4-rated Interface

The terminal wiring diagrams available on the GEM52000 Counter Rate Meter feature just below their corresponding terminal strips, with each strip offering numerous possible terminal connections.

GEM52000 Magnetic Pickup Input

The GEM52000 Counter's magnetic pickup input comes with its own set of important ratings, such as its:

150 mV peak nominal sensitivity
100 mV nominal hysteresis
26.5 KΩ @ 60 Hz nominal input impedance
±50 V peak maximum input voltage

Frequently Asked Questions about GEM52000

How many front panel lockout modes are offered by the GEM52000?

This GEM52000 has four total lockout modes for ease of fault detection and shutdown.

Does the GEM52000 Counter have durable relays?

Yes. This GEM52000 unit's relays are quite durable with life expectancies of up to 100,000 cycles at maximum rating.

Reviews For GEM52000

Internal Review

(5.0)

The self-test for this GEM52000 is so non-destructive that it can be performed without any count loss. The GEM52000 counter here also benefits from supreme customization such as its multipliable scale and sample time values. The GEM52000 presettable counter's frequency doubling actually registers counts on both edges of the unit's input signal. - AX Control Lead Technician
