Can the GEM52's base PCB be replaced?

Yes. The base circuit board of this GEM52 unit is actually field-replaceable for ease of maintenance.

How is circuit set-up programmed for my GEM52?

A series of DIP switches on the back of the GEM52 Counter are responsible for circuit set-up.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Red Lion GEMINI 1000/2000 Counters and Indicators GEM52

❮

❯

About | Product Specifications | FAQs

GEM52

4.86 (7)
Click a star to rate this product

4.86 (7)
Click a star to rate this product

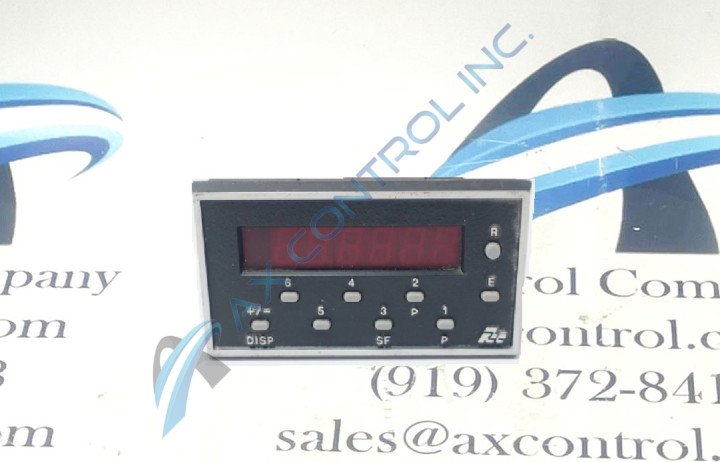

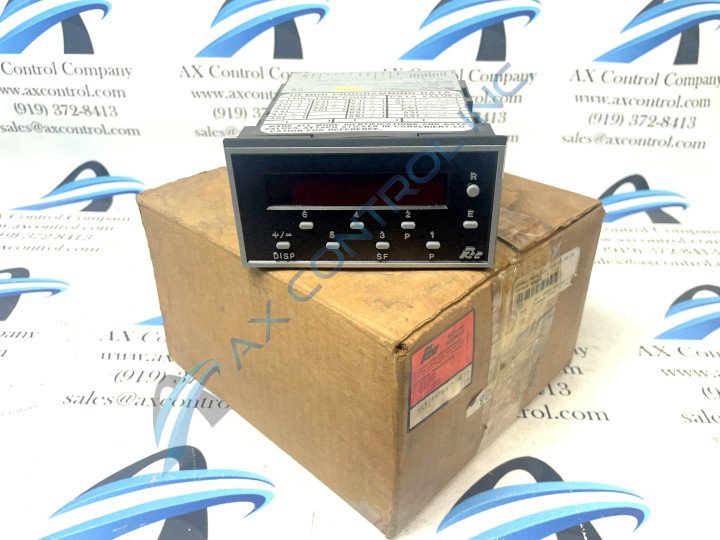

The GEM52 6-Digit Digital Counter made for Red Lion's GEMINI 1000/2000 Counters and Indicators Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM52 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM52
SKU: RL-59426

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

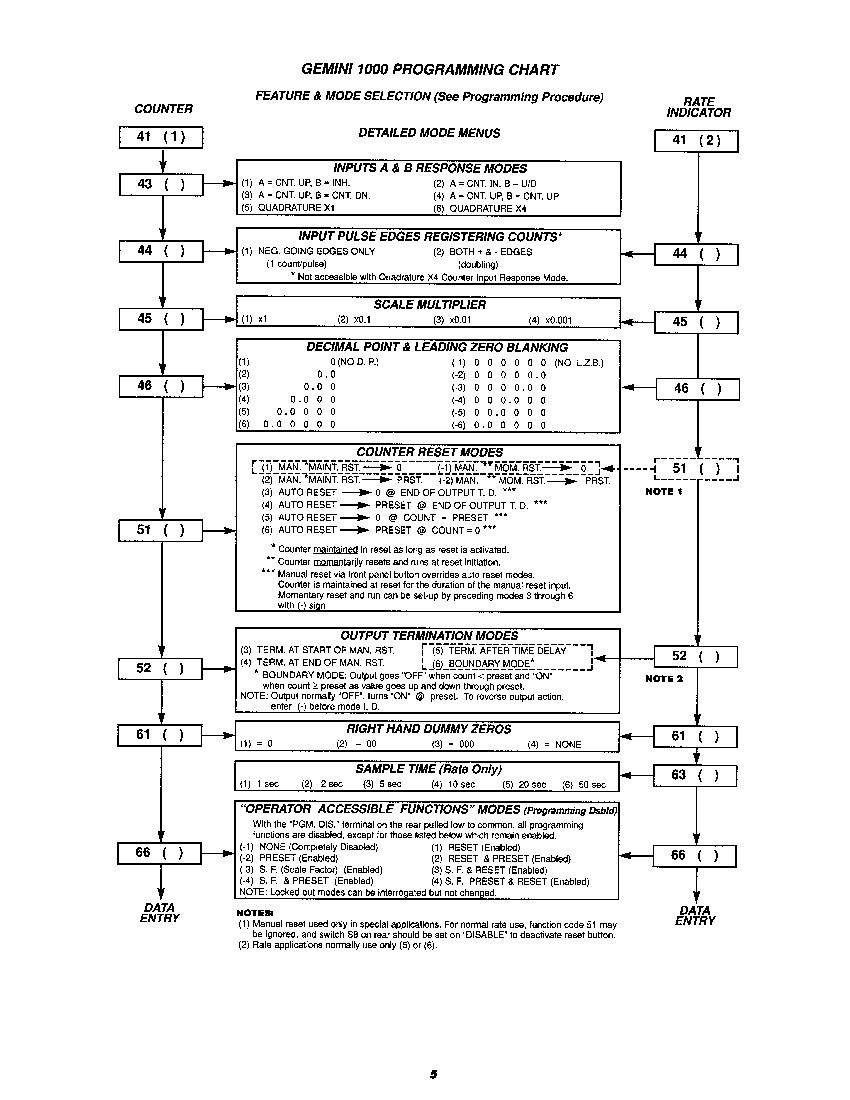

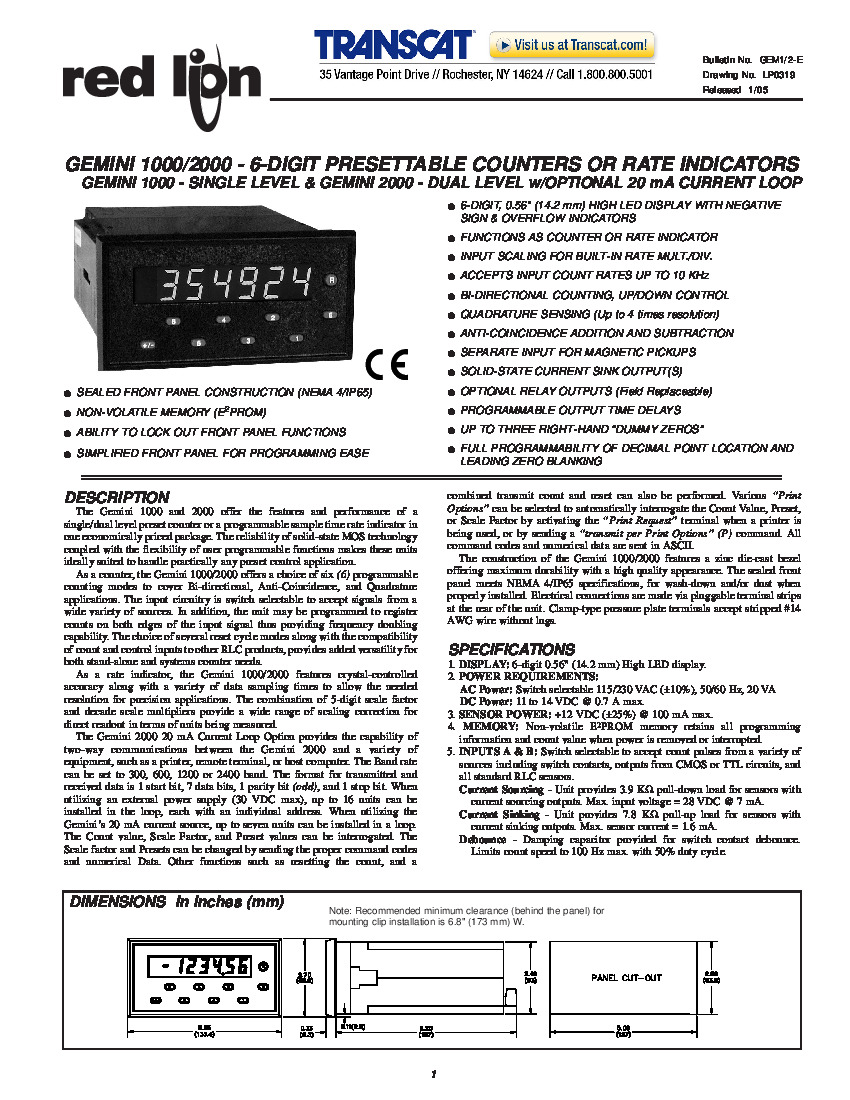

Manuals

GEM52 Technical Specifications

Part Number	GEM52
Functional Description	6-Digit Digital Counter
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
AC Power	115/230 VAC (±10%), 50/60 Hz, 20 VA
DC Power	11 to 14 VDC @ 0.7 A max
Sensor Power	+12 VDC (±25%) @ 100 mA max
Baud Rate	300 to 2400
NEMA Rating	IP65
Enclosure	Type 4

About the GEM52

The GEM52 6-Digit Digital Counter made for Red Lion's GEMINI 1000/2000 Counters and Indicators Series has a set of specific hardware traits immediately noticeable upon first glance, such as its:

LED-backlit display
6 labeled buttons
2 terminal strips
2 labeled relays

The two relays in the assembly of this GEM52 6-Digit Digital Counter are simply labeled Relay 1 and Relay 2, with further diagrams showing correct cabling and voltage transmission. As it is comprised of LEDs, the GEM52's display is diode-based.

GEM52 6-Digit Counter Programmable Functions

The GEM52 6-Digit Digital Counter has a specific series of programmable functions, which would include the unit's:

Unit Personality
Presets
Scale Factors
Scale Multiplier
Counting Modes
Reset Action
Reset Modes
Self-Test
Frequency Doubling

Many other programmable functions exist for the GEM52 outside of just these listed here; one such is the OUTPUT TIME DELAY that is considered programmable from 0.01 to 599.99 seconds.

Reviews For GEM52

Internal Review

(5.0)

The GEM52 6-Digit Digital Counter here offers six different counting modes including both Quadrature and Quadrature X4. In addition to this, a unique feature allows a maximum of three non-functional zeros to be be stored on the least significant end of that LED display. The GEM52 functions both as a counter and a rate indicator. - AX Control Lead Technician
