What reset actions are possible for this GEM42160 counter?

The GEM42160 has both reset-to-zero or reset-to-preset reset actions.

What does the GEM42160's self-test check for?

The GEM42160 Presettable Counter has a self-test that checks the unit's CPU, output circuitry, and display.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Red Lion GEMINI 1000/2000 Counters and Indicators GEM42160

❮

❯

About | Product Specifications | FAQs

GEM42160

5.00 (1)
Click a star to rate this product

5.00 (1)
Click a star to rate this product

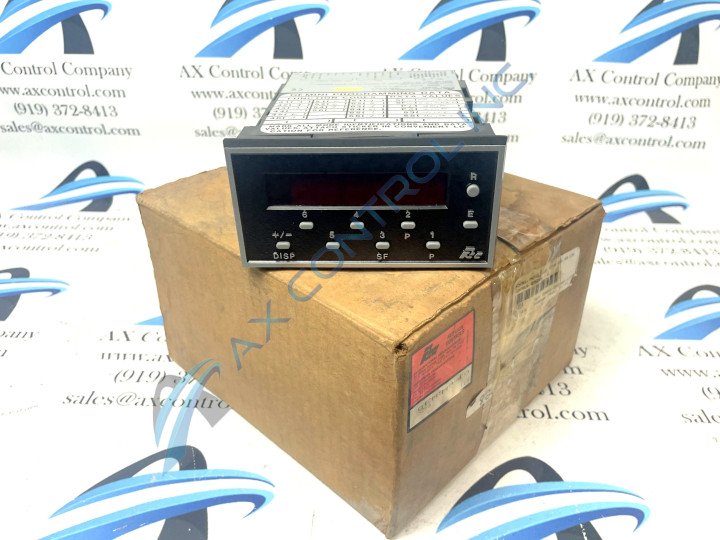

The GEM42160 Presettable Counter made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM42160 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM42160
SKU: RL-59459

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

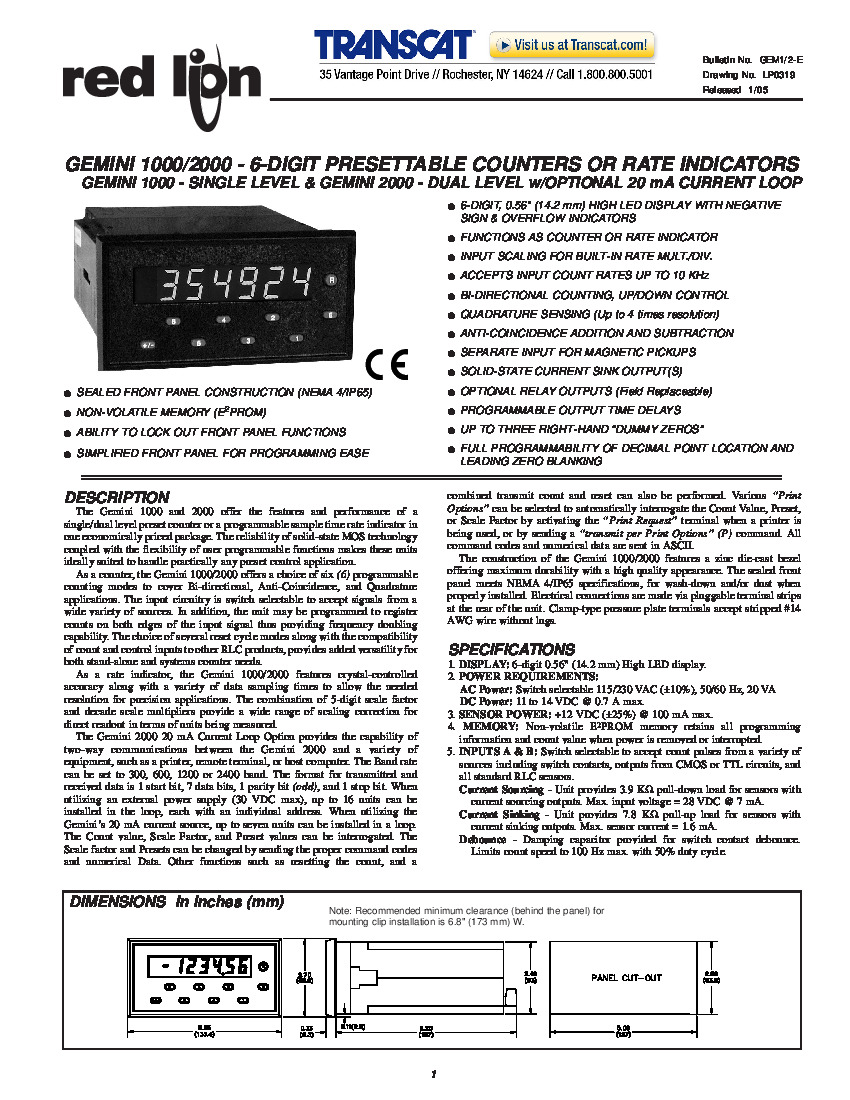

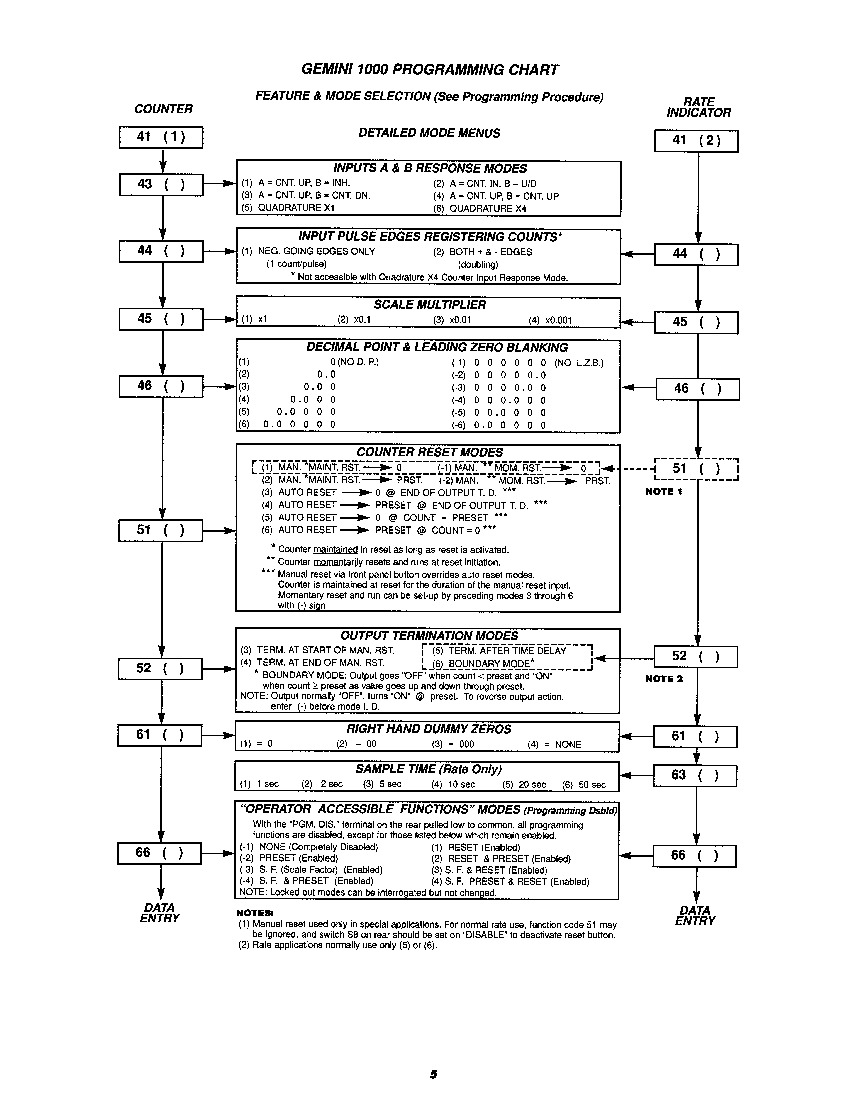

Manuals

GEM42160 Technical Specifications

Part Number	GEM42160
Functional Description	Presettable Counter
Manufacturer	Red Lion
Series	GEMINI 1000/2000 Counters and Indicators
Preset Range	0 to ±999999
AC Power	115/230 VAC (±10%), 50/60 Hz, 20 VA (switchable)
DC Power	11 to 14 VDC @ 0.7 A max
Sensor Power	+12 VDC (±25%) @ 100 mA max
Relay Life	100,000 cycles (max rating)
Output Time Delay Range	0.01 to 599.99 seconds

About the GEM42160

The GEM42160 Presettable Counter made for Red Lion's GEMINI 1000/2000 Series comes with a set of hardware components and component specifications standardized to its greater series, such as its:

NEMA 4 sealed front panel
Programmable output time delays
Up to 3 right-hand dummy zeros
Numeric pushbuttons
LED-backlit display window

Not all of the GEM42160 Presettable Counter's pushbuttons are numeric, as several diagnostic buttons including a manual reset button also exist.

GEM42160 Output Termination

Several possible output termination modes exist for the GEM42160, including the:

Terminate at “other” Output Start Mode
Terminate at Manual Reset Mode
Terminate at “other” Output End Mode
Terminate at Manual Reset End Mode
Terminate after Time Delay Mode
Boundary Mode

Both the Terminate at “other” Output Start Mode and the Terminate at “other” Output End Mode are considered to apply to GEMINI 2000 Series models only.

Reviews For GEM42160

Internal Review

(5.0)

The GEM42160 counter has a sample time multiplier capable of amplifying the unit's basic one-second data sampling time by factors of 1, 2, 5, 10, 20, or 50. In addition to this, it also features a scale multiplier with separate factors of 1, 0.1, 0.01, or 0.001. This pertains to 5-digit input scaling, of course. New or reconditioned quality here. - AX Control Lead Technician
