Home Red Lion GEMINI 1000/2000 Counters and Indicators GEM42001

❮

❯

About | Product Specifications | FAQs

GEM42001

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The GEM42001 50/60Hz Presettable Counter made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM42001 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM42001
SKU: RL-59454

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

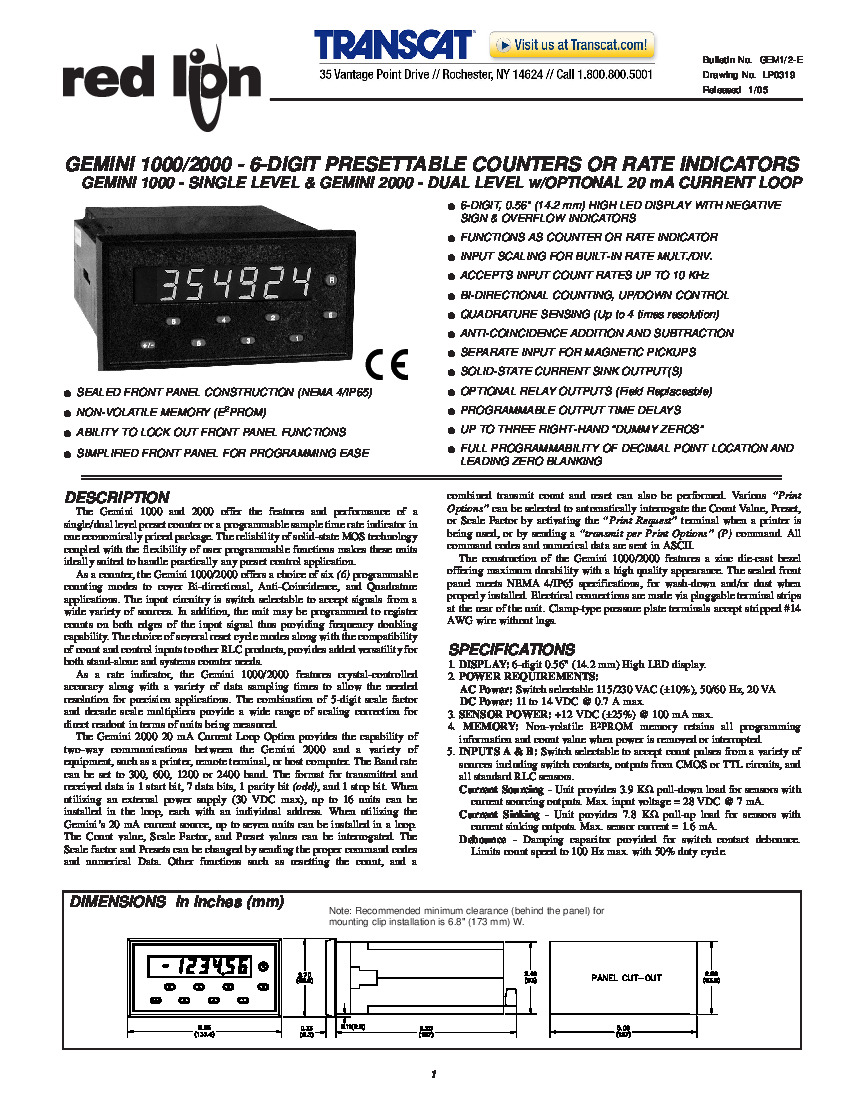

Manuals

GEM42001 Technical Specifications

Part Number	GEM42001
Functional Description	50/60Hz Presettable Counter
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Unit Personality	Counter and Rate Indicator
Preset Range	0 to ±999999
AC Power	115/230 VAC (±10%), 50/60 Hz, 20 VA (switchable)
DC Power	11 to 14 VDC @ 0.7 A max
Sensor Power	+12 VDC (±25%) @ 100 mA max
Sample Time Multiplier	1, 2, 5, 10, 20, or 50x
Relay Life	100,000 cycles

About the GEM42001

The GEM42001 50/60Hz Presettable Counter made for Red Lion's GEMINI 1000/2000 Series comes equipped with a standard selection of hardware components for a dual-functional Red Lion module. Some of these would include the device's:

DIP Switches
Red LED Numeric Display
NEMA 4/IP65-Rated Front Interface
Terminal Strips
Terminal Wiring Diagrams

It should be noted that the above-mentioned wiring diagrams correspond directly with the terminal strips of the module.

GEM42001 Presettable Counting Modes

Some of the various counting modes made available to the GEM42001 50/60Hz Presettable Counter include:

Quadrature
Quadrature X4
Count with Inhibit
Count with Up/Down Control
2-Input Anti-Coincidence Add
2-Input Anti-Coincidence Add/Subtract

Frequently Asked Questions about GEM42001

What reset actions are the GEM42001 capable of?

The GEM42001 has both Reset-to-zero and Reset-to-preset reset actions.

How many reset modes are offered by the GEM42001?

This GEM42001 has three reset modes outside of its two reset actions; manual, automatic at preset, and automatic at time delay.

Reviews For GEM42001

Internal Review

(5.0)

This GEM42001 Presettable Counter's output time delay is programmable from 0.01 to 599.99 seconds. Most of the programmable functions used by this device should be altered through the input of a two-digit programming code onto the diagnostic display. Six of the GEM42001's nine total pushbuttons are printed with numbers for value selection. - AX Control Lead Technician
