GEM42000

Q: Is the unit personality of this GEM42000 unit programmable?

Yes. This GEM42000&#39;s unit personality can be switched back and forth between counting and rate indication.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The GEM42000 Dual Presettable Counter made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM42000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM42000
SKU: RL-59464

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

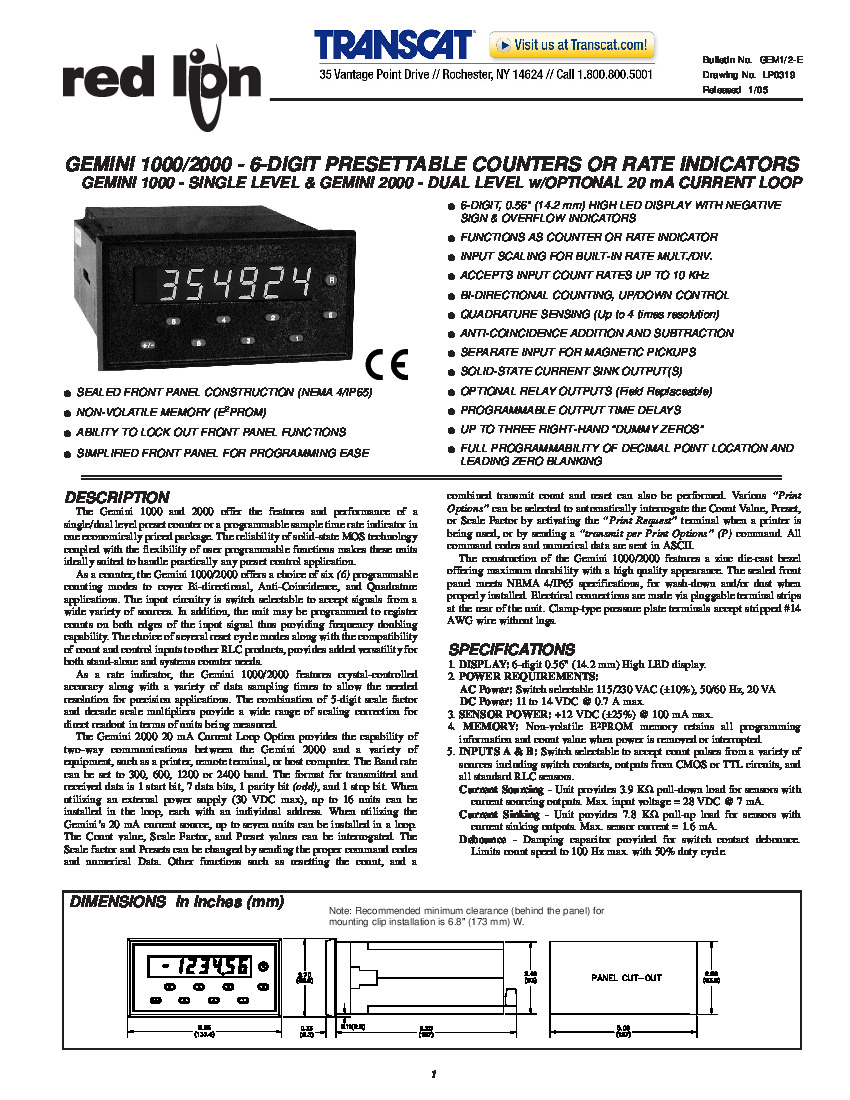

Manuals

GEM42000 Technical Specifications

Part Number	GEM42000
Functional Description	Dual Presettable Counter
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Preset Range	0 to ±999999
Magnetic Pickup Input Sensitivity	150 mV peak nominal
Magnetic Pickup Input Hysteresis	100 mV nominal
Magnetic Pickup Input Impedance	26.5 KΩ @ 60 Hz nominal
Magnetic Pickup Input Max Voltage	±50 V peak
Operating Temperature	0 to 50°C
Storage Termperature	-40 to 80°C

About the GEM42000

The GEM42000 Dual Presettable Counter made for Red Lion's GEMINI 1000/2000 Series comes equipped with a selection of hardware traits, such as its:

Alphanumeric pushbuttons
LED-backlit display window
NEMA 4-rated front interface
Terminal strips with wiring diagrams
DIP switches

The pushbuttons on the front of the GEM42000 Dual Presettable Counter are both numeric and diagnostic in nature, with one included purely to manually trigger resets as necessary. Its NEMA 4-rated interface also has an IP65 rating.

GEM42000 Output Termination

The GEM42000 is responsible for several different modes of output termination, such as:

Terminate at Manual Reset/Reset End
Terminate after Time Delay
Boundary-Based Termination
Terminate at “other” Output Start (Gemini 2000 only)
Terminate at “other” Output End (Gemini 2000 only)

Frequently Asked Questions about GEM42000

Is the unit personality of this GEM42000 unit programmable?

Yes. This GEM42000's unit personality can be switched back and forth between counting and rate indication.

How many dummy zeros does the GEM42000 offer?

This GEM42000 Digital Counter can display up to three dummy zeros from the right side of its numeric display.

Reviews For GEM42000

Internal Review

(5.0)

Reset actions for the GEM42000 include both Reset-to-zero and Reset-to-preset. The GEM42000 has both decimal point and lead zero blanking programmable, and selectable modes for counting, output termination, and front panel lockouts. The customizable GEM42000 can be reset remotely or via a pushbutton on the robust front interface. - AX Control Lead Technician
