Home Red Lion GEMINI 1000/2000 Counters and Indicators GEM20161

❮

❯

About | Product Specifications | FAQs

GEM20161

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The GEM20161 Counter/Rate Indicator made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM20161 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM20161
SKU: RL-59449

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

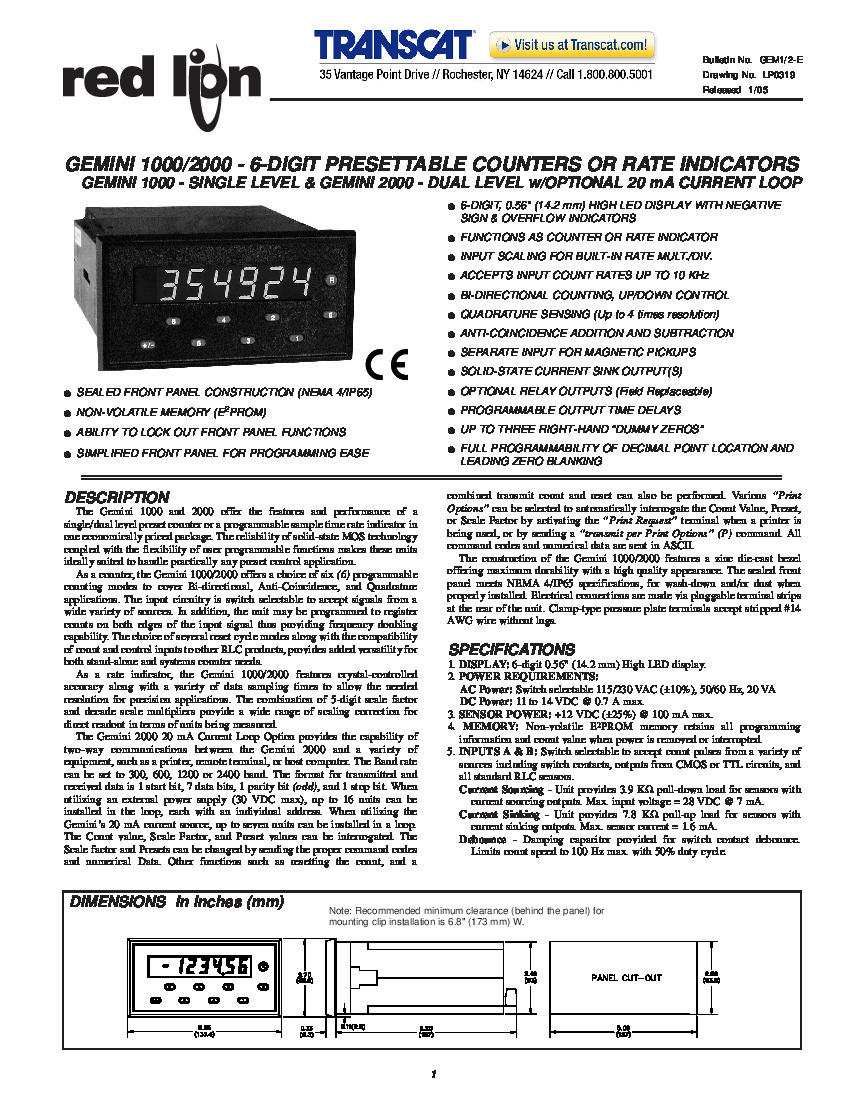

Manuals

GEM20161 Technical Specifications

Part Number	GEM20161
Functional Description	Counter/Rate Indicator
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Operating Temperature	0 to 50°C
Storage Temperature	-40 to 80°C
Humidity	85% max. relative humidity
Relay Life	100,000 cycles
Right-Hand Dummy Zeros	Up to 3
Preset Range	0 to ±999999

About the GEM20161

The GEM20161 Counter/Rate Indicator made for Red Lion's GEMINI 1000/2000 Series is well-equipped with a recognizable series of critical hardware components. Some of these would include its:

9 total diagnostic keypads
LED-backlit red numeric display
NEMA-rated front interface/panel
DIP switch selection
Several terminal strips

Each of these mentioned terminal strips should come with their own printed diagram detailing possible terminal connections. The DIP switches are all gathered in a small plastic component and should only be accessed for initial circuitry setup (output).

GEM20161 Counter/Rate Indicator Functionality

The GEM20161 Counter/Rate Indicator here comes with a slew of programmable functions given its versatile nature, such as:

Unit Personality
Presets
Scale Factors and Scale Multiplier
Self-test
Counting and Reset Modes

Frequently Asked Questions about GEM20161

What are some of the GEM20161 Counter's counting modes?

Counting modes for this Red Lion GEM2 unit include the Count with Inhibit, Count with Up/Down Control, 2-Input Anti-Coincidence Add, 2-Input Anti-Coincidence Add/Subtract, Quadrature, and Quadrature X4 Modes.

What are the sample time multiplier options for this GEM20161 Counter/Indicator?

This GEM20161 unit can amplify its basic one-sec sampling by 1, 2, 5, 10, 20, or 50x.

Reviews For GEM20161

Internal Review

(5.0)

A rear bezel screw connects the GEM20161 unit's metal bezel to its all-important ground lead. This GEM20161 Indicator Module's serial communications baud rate sits at a range between 300 to 2400 as it is programmable via the display window. Two-digit function codes can be entered into the GEM20161's window for any customization beyond input circuit set-up. - AX Control Lead Technician

Repair Services For GEM20161

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your GEM20161. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
