GEM20160

Q: What are typical counter applications for this GEM20160 module?

The GEM20160 Counter here&#39;s typical counter applications include as an in-process monitoring system, &quot;cut-to-length&quot; with flaw detection, rate indication with speed limiting, and more.

5.00 (2)
Click a star to rate this product

5.00 (2)
Click a star to rate this product

The GEM20160 Digital Counter Module made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM20160 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM20160
SKU: RL-59472

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

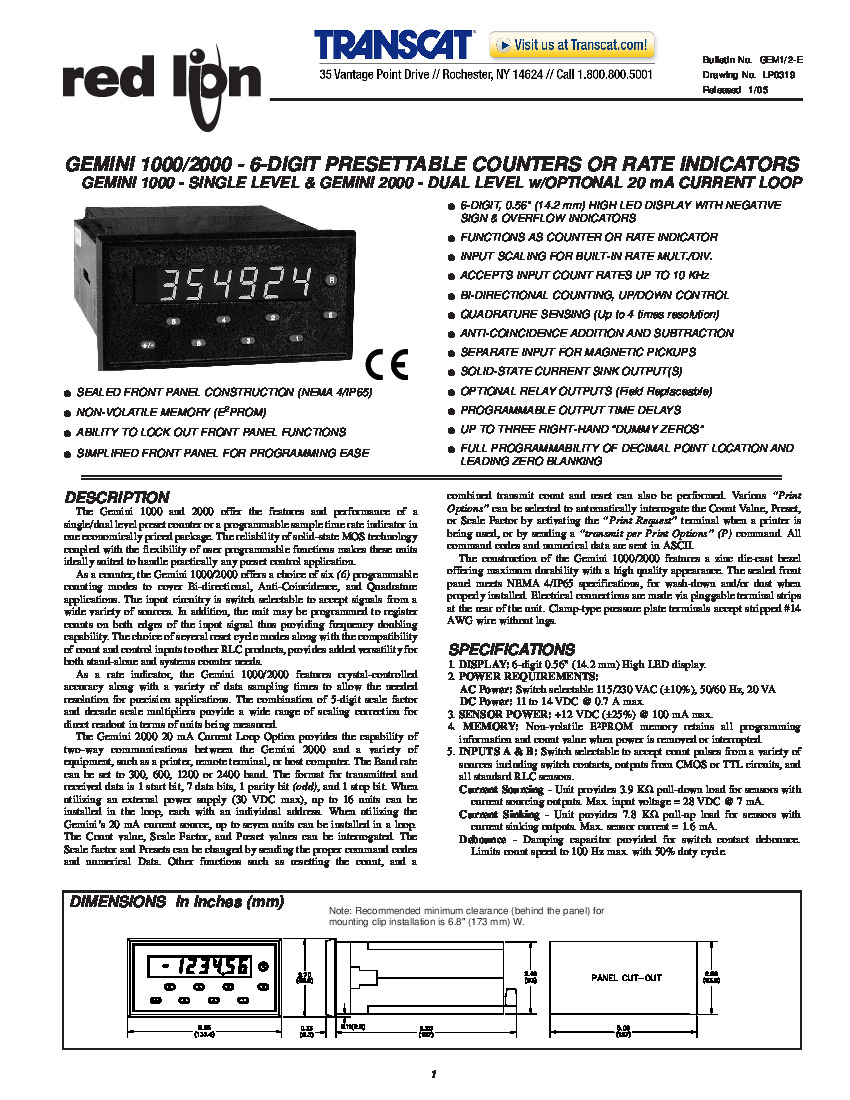

Manuals

GEM20160 Technical Specifications

Product Number	GEM20160
Functional Description	Digital Counter Module
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Serial Communications Type	Bi-directional 20 mA current loop
Serial Communications Max Address	16 units
Serial Communications Data Format	10 bit frame, Odd parity
Relay Life	100,000 cycles
Lo Bias	Input trigger levels VIL = 1.5 V max., VIH = 3.75 V
Hi Bias	Input trigger levels VIL = 5.5 V max., VIH = 7.5 V
Safety Requirements	IEC 1010-1, EN 61010-1
Altitude	Up to 2000 meters

About the GEM20160

The GEM20160 Digital Counter Module made for Red Lion's GEMINI 1000/2000 Series ships with a series of primary hardware elements necessary for its function. The core components of the GEM20160 Digital Counter are its:

NEMA 4/IP65-rated front interface
LED-backlit display window
9 total pushbuttons
DIP switches
Terminal strips
Printed connection diagram

The GEM20160 Digital Counter Module's terminal strips each offer a series of terminal points for varied connections. Out of its nine total pushbuttons, six have been printed with number for diagnostic value entry.

GEM20160 Digital Counter Module Environmental Conditions

The GEM20160 Digital Counter Module comes with a strict set of environmental condition ratings and ranges that are critical to its maintained functionality. Some of these include its:

0 to 50°C operating temperature
-40 to 80°C storage temperature
85% max. relative - 0 to 50°C humidity range
2000 meter maximum altitude

It should be noted that the GEM20160 Digital Counter Module's humidity remains the same for both operation and storage.

Frequently Asked Questions about GEM20160

What are typical counter applications for this GEM20160 module?

The GEM20160 Counter here's typical counter applications include as an in-process monitoring system, "cut-to-length" with flaw detection, rate indication with speed limiting, and more.

Does the GEM20160 utilize the print request control input?

Yes. The GEM20160 is a revised version of the GEM2 base model, giving it access to the print request input.

Reviews For GEM20160

Internal Review

(5.0)

As a GEM2-based module, this unit's serial communications baud rate is actually programmable between 300 to 2400. Front panel lockout modes for this counter include Complete Front Panel Disable, Preset(s) Enabled Only, Scale Factor Enabled Only, and finally Both Preset(s) and Scale Factor Enabled. Both scale factor and output time delay multipliers can be put into place for the GEM20160. - AX Control Lead Technician

Repair Services For GEM20160

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your GEM20160. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
All Motors:	1 Year

Learn More
