The GEM20000 6-Digit Counter/Indicator made for Red Lion's GEMINI 1000/2000 Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a GEM20000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: GEM20000
SKU: RL-59460

Manufacturer: Red Lion
Series: GEMINI 1000/2000 Counters and Indicators

Description
Repairs
Warranty

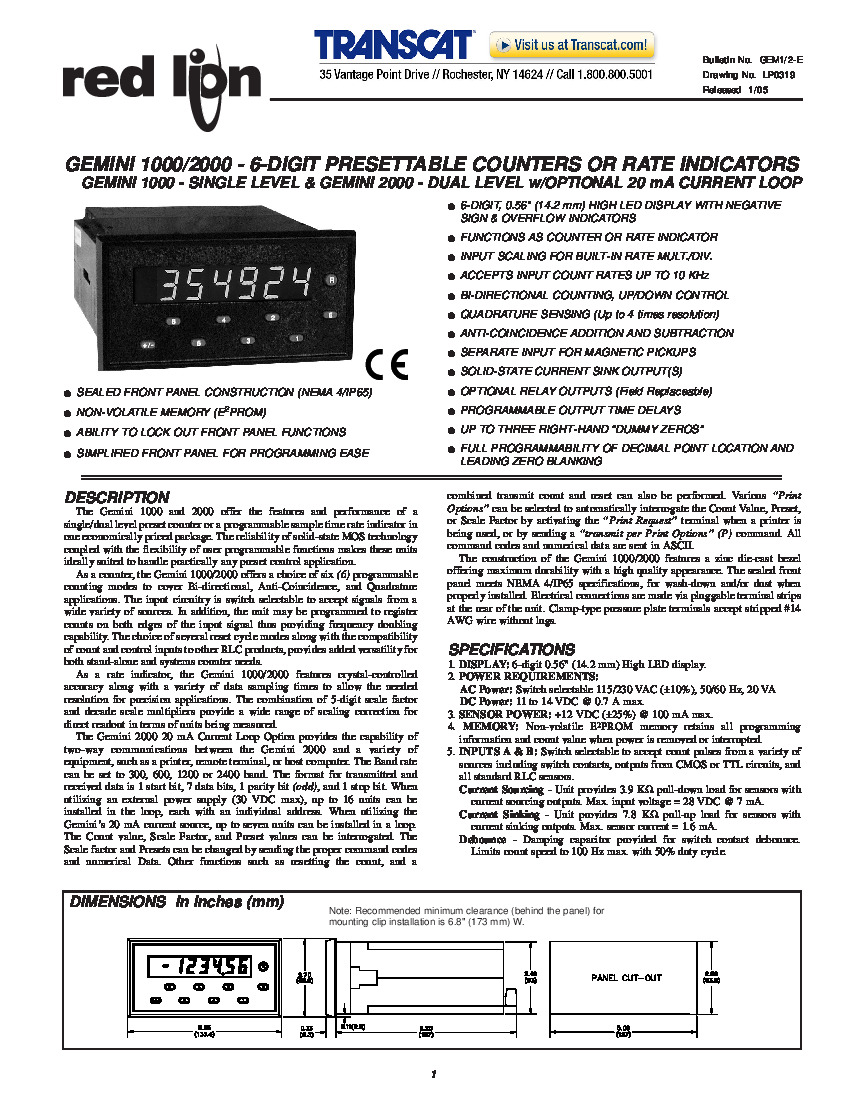

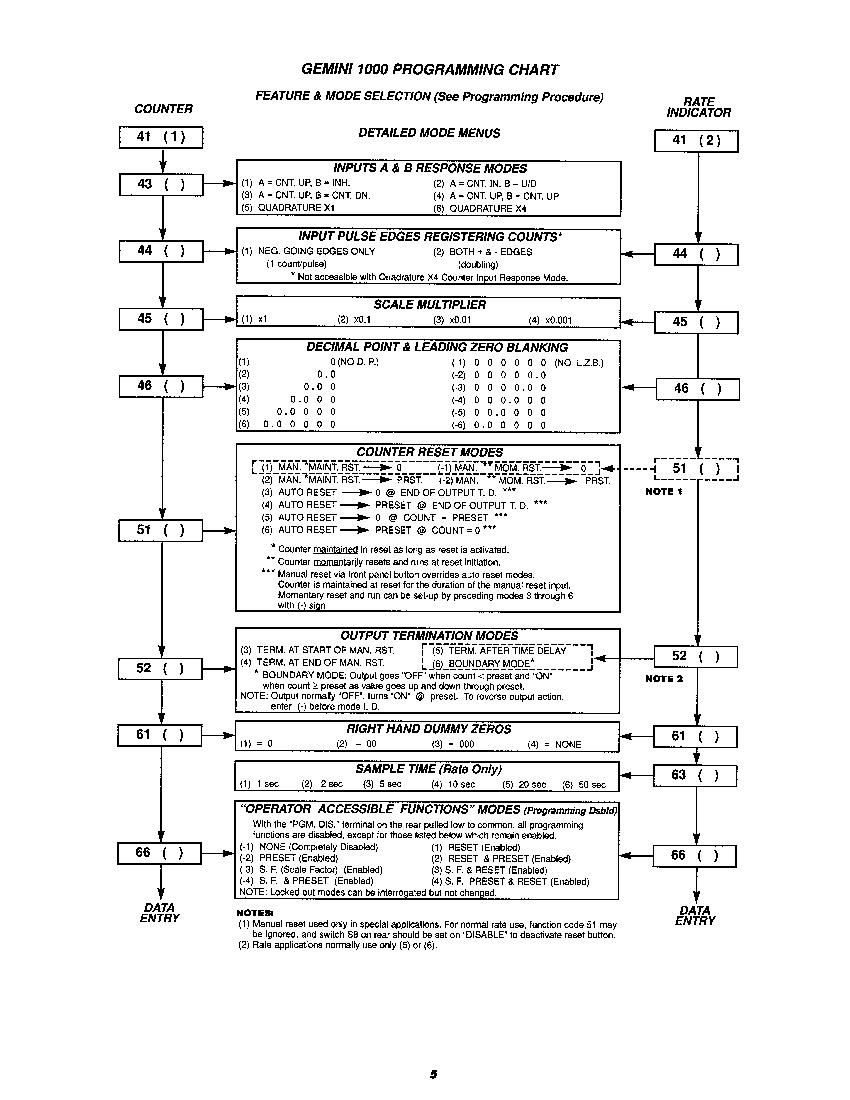

Manuals

GEM20000 Technical Specifications

Part Number	GEM20000
Functional Description	6-Digit Counter/Indicator
Series	GEMINI 1000/2000 Counters and Indicators
Manufacturer	Red Lion
Counting Direction	Bi-Directional
Display Type	6-digit 0.56" (14.2 mm) High LED
Sensor Power	+12 VDC (±25%) @ 100 mA max
Scaling	5-digit input
Scale Factors Range	0.0000 to ±5.9999
Output Time Delay Range	0.01 to 599.99 seconds

About the GEM20000

The GEM20000 6-Digit Counter/Indicator made for Red Lion's GEMINI 1000/2000 Series has a number of standard hardware inclusions, such as its:

Numeric LED-backlit display window
Diagnostic and numeric pushbuttons
DIP switches
NEMA 4/IP65-rated front face
Relay Ports
Terminal Strips

It should be noted that the GEM20000 6-Digit Counter/Indicator's DIP switches have only been included for initial output circuit setup, and that they should not be accessed for any further customization or programming.

GEM20000 Counting Modes

The different counting modes available to this presettable counter include:

Count with Inhibit Counting
Count with Up/Down Control Counting
2-Input Anti-Coincidence Add Counting
2-Input Anti-Coincidence Add/Subtract Counting
Quadrature Counting
Quadrature X4 Counting

Frequently Asked Questions about GEM20000

What makes this GEM20000 different from the GEM10000?

The GEM20000 is a dual level device as opposed to the single-level GEM10000. It also has a 20 mA current loop option.

What is the maximum for the GEM20000's accepted input count rates?

Input count rates of up to 10 KHz are accepted by this GEM20000 unit.

Reviews For GEM20000

Internal Review

(5.0)

Up to 4 times resolution is possible thanks to this GEM2000 Counter/Indicators Quadrature and Quadrature X4 counting modes. E2PROM memory should back up data stored in the GEM20000 well, as it is classified as non-volatile. This particular GEM20000 offering's AC power is switch-selectable, while other traits can be customized through the diagnostic display window. - AX Control Lead Technician
